ABB YPP110A 3ASD573001A1 Processor Module

Description

• Model: YPP110A
• Part Number: 3ASD573001A1
• Brand: ABB (Sweden)
• Series: Advant OCS / AC 410 / AC 450 (Advant Master)
• Core Function: Central processing unit responsible for executing control logic and managing I/O communication.
• Product Type: Processor Module
• Key Specs: Motorola 68000 series architecture High-speed backplane interface 6U Form Factor

• Processor Type: High-performance microprocessor optimized for real-time industrial applications.
• Memory Support: Interfaces with separate memory modules (e.g., YRAM or YROM) via the local processor bus.
• System Bus: Connects to the MasterBus 300 or AF 100 via specialized interface submodules.
• Redundancy: Capable of operating in a dual-processor redundant configuration (Hot Standby) for high-availability systems.
• Diagnostic Features: Onboard LEDs for RUN, HALT, and ERROR status; includes a serial port for local terminal diagnostics.
• Power Consumption: Draws primarily from the +5V DC rail of the Advant sub-rack.

Application Scenarios & Pain Points

The YPP110A is a legacy powerhouse. It is a core component of the Advant Controller 400 series, which was the global standard for heavy industry throughout the 1990s and 2000s. Today, these modules are found in plants that require extreme reliability—where “upgrading” to a new system would cost millions in downtime.

The primary pain point for YPP110A users is aging electronics. After 20+ years of continuous operation, these boards suffer from capacitor degradation and solder fatigue. Because the AC450 is often the “brain” of an entire refinery or power plant, a YPP110A failure doesn’t just stop one machine—it can halt the entire facility.

Typical Application Scenarios:

1. Pulp & Paper – Sectional Drives

   Managing the complex synchronization of paper machine rollers where timing must be perfect to avoid paper breaks.

2. Power Generation – Boiler Control

   Handling thousands of I/O points for temperature, pressure, and fuel flow in coal or gas-fired plants.

3. Chemical Processing – Distillation Columns

   Executing PID loops for sensitive chemical reactions that require high-availability control.

4. Metals Industry – Hot Strip Mills

   Managing high-speed logic for steel rolling where millisecond response times are required.

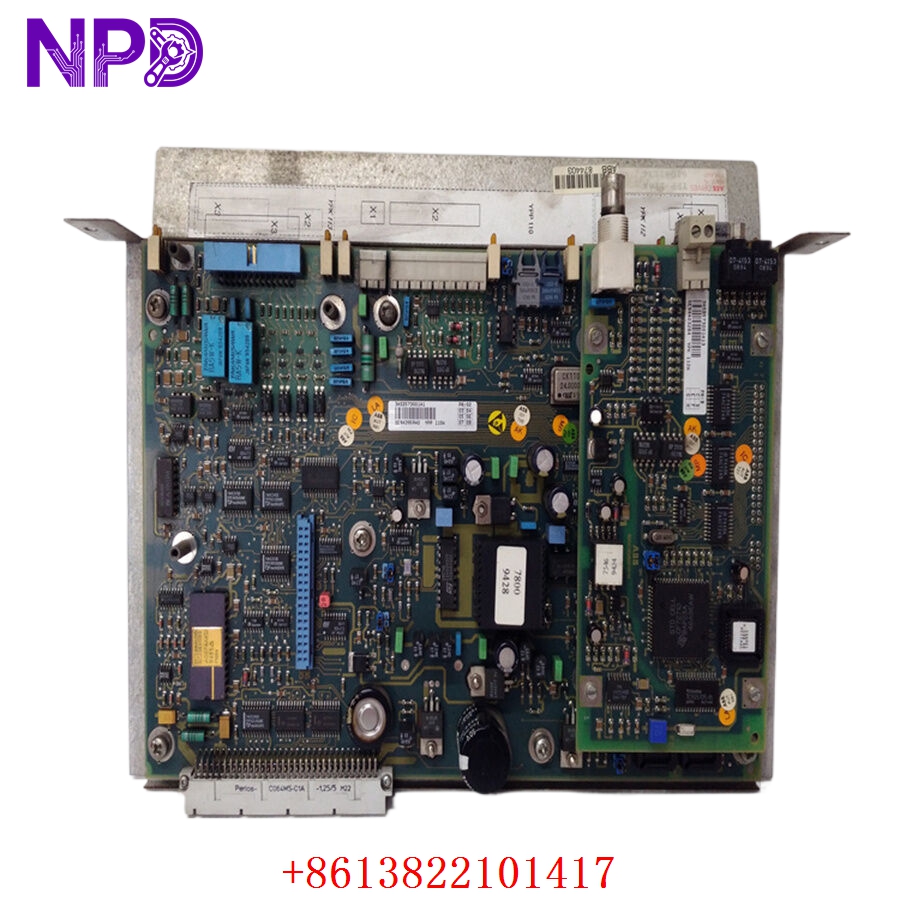

ABB YPP110A 3ASD573001A1

SOP Quality Transparency

Legacy processor boards require specialized “Deep Diagnostics” to ensure they won’t fail the moment they are installed in a hot plant environment.

1. Visual Component Audit:

   We inspect the board under 20x magnification for signs of “leaking” capacitors or overheating on the processor chips. We clean all gold-plated backplane pins to ensure zero-resistance contact.

2. Full Rack Boot Test:

   We seat the YPP110A in a Advant Controller 450 test rack.

   • Self-Test Verification: We monitor the boot sequence to ensure the module passes all internal hardware checksums.
   • Memory Mapping: We verify communication between the YPP110A and the associated RAM/ROM modules.
3. Redundancy Switch-Over Test:

   We simulate a processor failure to ensure the YPP110A can correctly hand over (or take over) control in a redundant pair without dropping the I/O bus.

4. 24-Hour Burn-In:

   The module is kept in a powered state for 24 hours to ensure thermal stability and that no “cold solder joints” trigger a reset under heat.

5. Packaging:

   Shipped in a professional ESD shielding bag, surrounded by high-density anti-static foam to protect the 96-pin DIN connectors.

Technical “Pitfall” Guide

Replacing an AC400 processor is a high-stakes task. Avoid these common mistakes:

1. The “Memory Module” Mistake ❗:

   The YPP110A is the processor, but the program lives on the memory modules (YRAM/YROM) plugged into the rack.

   The Fix: When you replace the YPP110A, you must move your existing memory modules to the new processor or ensure you have a “Load File” ready to download via the Advant Station.

2. Firmware Version Matching:

   The YPP110A must have a firmware version that is compatible with your backplane and other I/O modules.

   The Fix: Check the revision sticker (e.g., Rev. B or Rev. G). It is best to match the revision of your failing board exactly.

3. The “HALT” LED Trap ❗:

   If the HALT LED is lit, the processor is healthy but has been told to stop by the software.

   The Fix: This often indicates a configuration error or a missing module in the scan list. Check your AMPL code or use a terminal to read the error log.

4. Backplane Connector Damage:

   The 96-pin connector on these boards is very long. If the rack guides are warped, it is easy to “mash” a pin during insertion.

   The Fix: Never force the module. If it doesn’t slide in smoothly, inspect the backplane for debris or bent pins.

Troubleshooting Quick Reference

Pro Tip: If you are troubleshooting a “Dead” YPP110A, connect a laptop with a terminal emulator (9600, 8, N, 1) to the front diagnostic port. The boot-up text will often tell you exactly which RAM address or I/O module is causing the processor to crash!
