Description
- Model: YPQ110A
- Part Number: 3ASD573001A5
- Brand: ABB
- Series: Specialized Drive Control / Communication Series
- Core Function: Bus Interface and Communication Processing Board
- Condition: Brand New Surplus (Original New), Non-refurbished
- Type: Interface PCB / Module
- Key Specs: High-speed data throughput, drive system integration
- Function: Provides an interface between the main controller and peripheral communication networks in large-scale ABB drive systems.
- Architecture: Microprocessor-based digital processing for real-time signal management.
- Mounting: Plug-in module designed for specific controller racks or drive chassis.
- Connectivity: Integrated high-speed connectors for backplane data exchange.
- Diagnostic Support: On-board LED indicators for module health and data traffic status.
- Compatibility: Used primarily in high-power DC drive systems or specialized industrial automation segments.
- Environmental Tolerance: Industrial grade, designed for high-vibration and high-heat environments typically found in drive cabinets.

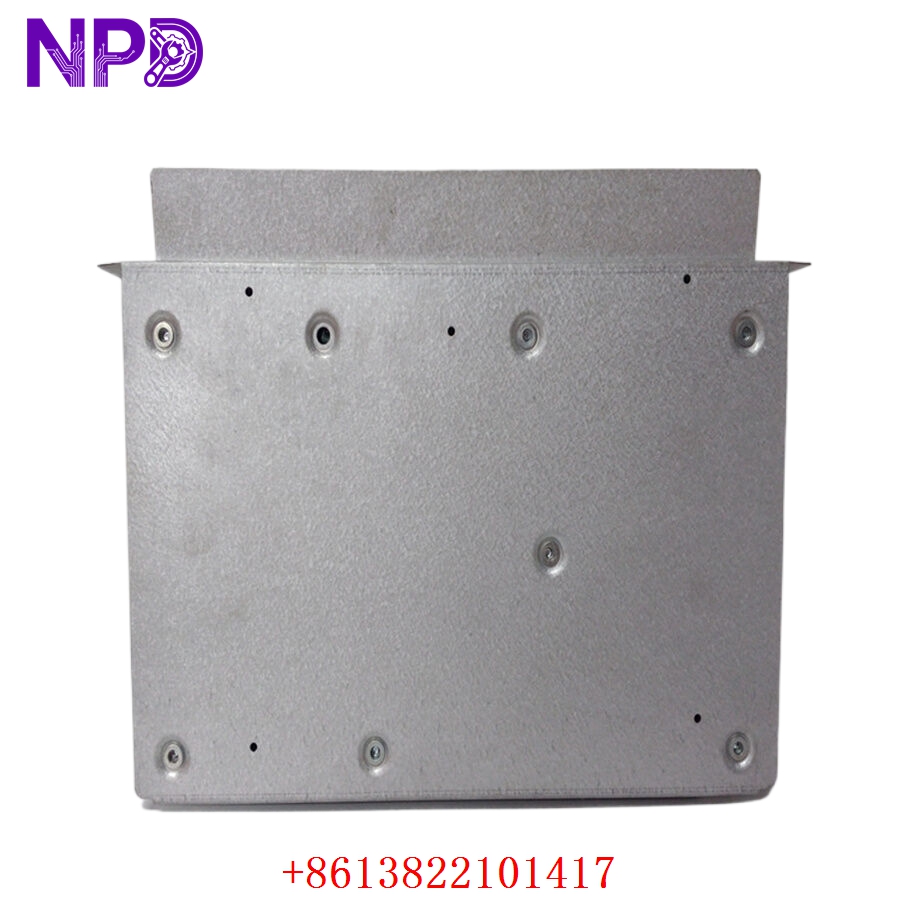

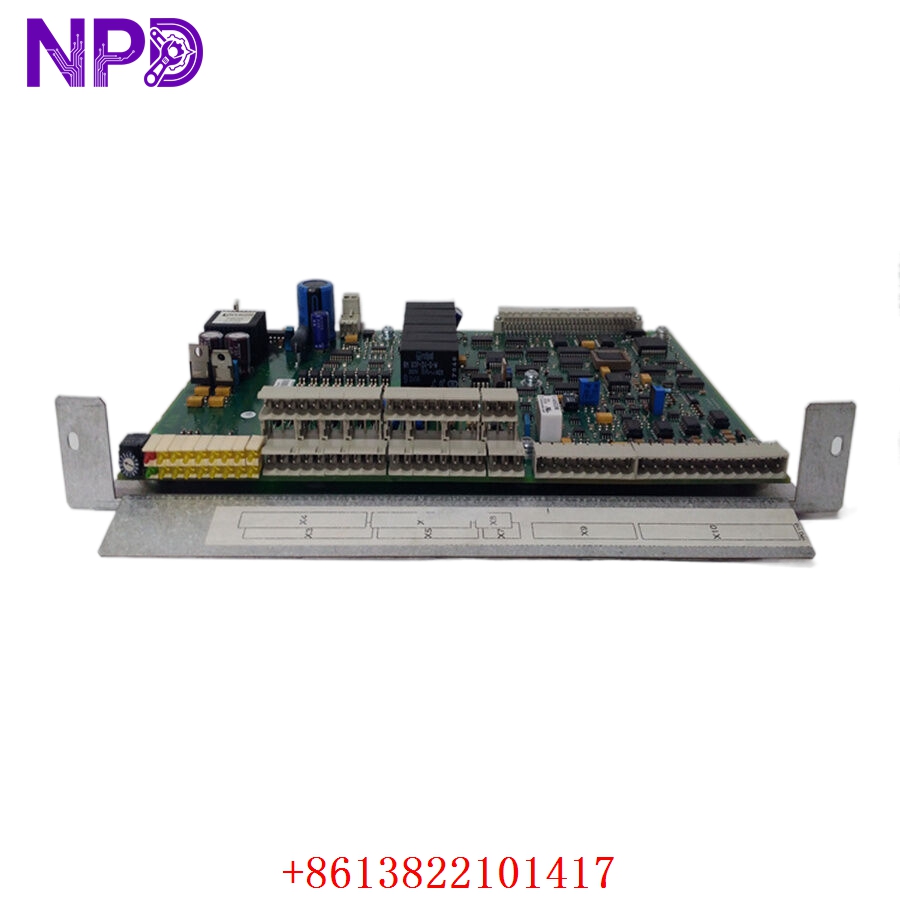

ABB YPQ110A 3ASD573001A5
ABB YPQ110A 3ASD573001A5
ABB YPQ110A 3ASD573001A5
Installation & Configuration Guide
Phase 1: Preparation (15 Minutes)
⚠️ Safety First:
- Drive systems often store high energy in capacitor banks. Ensure the drive system is fully de-energized and wait for the specified discharge time (usually 5–15 minutes) before opening the cabinet.
- Verify that the part number 3ASD573001A5 matches your existing board exactly. ABB components in this series can have very specific revisions.
- Ensure you have the system parameter backup files.
Tools & Protection:
- ESD wrist strap: The YPQ110A uses sensitive semiconductor components that can be damaged by static charges invisible to the eye.
- A small Phillips screwdriver.
Phase 2: Removal (10 Minutes)
- Access: Locate the control section of the drive. The YPQ110A is typically located in a specialized card cage.
- Cabling: Gently disconnect any ribbon cables or fiber optic connectors. Do not pull on the wires; use the connector housing.
- Extraction: Loosen the retaining screws. Carefully slide the board out of the guide rails. Avoid touching the gold-plated contacts on the bottom of the board.
Phase 3: Installation (15 Minutes)
- Alignment: Align the edges of the 3ASD573001A5 with the card guides in the rack.
- Seating: Slide the board in firmly until you feel it “click” into the backplane connector.
- Securing: Tighten the retaining screws to ensure proper grounding and to prevent vibration-related loosening.
- Reconnect: Attach all cables to their original ports. Double-check the orientation of ribbon cables.
Phase 4: Power-On & Testing (20 Minutes)
- Initial Boot: Re-apply power to the drive control section.
- LED Verification: Observe the LEDs on the YPQ110A faceplate. A healthy board usually shows a solid green “Run” or “OK” light. A red “Fault” light indicates a connection or address conflict.
- Drive Interface: Check the drive’s HMI (Operator Panel) for any communication alarms. If the board was replaced due to a “Link Failure,” that error should now be clearable.
Customer Cases & Industry Applications
Case 1: Steel Mill Rolling Line Recovery
Situation: A steel mill in Eastern Europe experienced a total shutdown of a rolling mill drive. The diagnostic pointed to a communication failure on the main interface bus. Task: The on-site team identified the YPQ110A board as the source of the intermittent signal loss. Action: We supplied a New Surplus 3ASD573001A5. Result: The board was installed and the mill was back in production within 36 hours. The customer preferred our “New Surplus” stock over a 16-week lead time from the OEM.
Case 2: Marine Propulsion Spare
Situation: A large cargo vessel utilized ABB drives for its bow thrusters. To comply with maritime insurance requirements, they needed to carry a certified “New” spare for every critical circuit board. Task: Secure a 3ASD573001A5 that had never been used and was in original condition. Action: The customer purchased a unit from our inventory, which included our standard 12-month warranty. Result: The vessel passed its technical audit, ensuring they had the necessary hardware to perform emergency repairs while at sea.
Frequently Asked Questions (FAQ)
Q: Can I use a YPQ110 board if my current board is a YPQ110A? A: Generally, the “A” denotes a specific revision or feature set. While they may look similar, we always recommend sticking to the exact part number 3ASD573001A5 to ensure the firmware and bus timing match your existing drive parameters.
Q: Does this board require a separate firmware download? A: In most ABB drive systems, the YPQ110A acts as an interface. The primary logic is usually stored in the CPU module and “pushed” to the interface board on boot-up. However, you should always check your system manual to see if a specific “Node Address” needs to be set via jumpers or software.
Q: Why buy “New Surplus” for an older ABB part? A: Drive systems can stay in service for 20+ years, but ABB may stop manufacturing the spare boards much sooner. “New Surplus” allows you to get a board that has never been stressed by the heat and electrical loads of a working drive, providing much higher reliability than a “refurbished” or “used” unit.
Q: Is this board compatible with the ACS800 series? A: The YPQ110A is typically used in more specialized or larger DC drive frameworks (like the DCS series) rather than the standard ACS800 AC drives. Please verify your drive model before ordering.
