1. Product Description

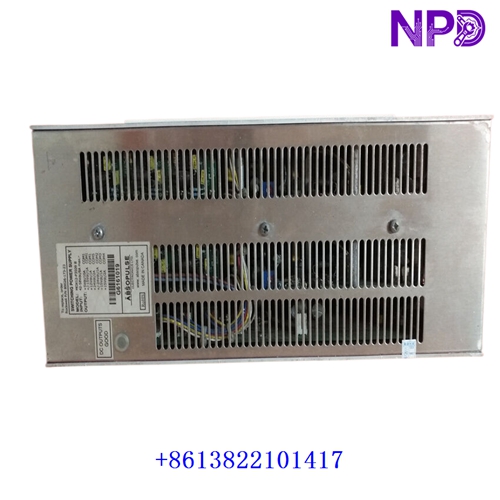

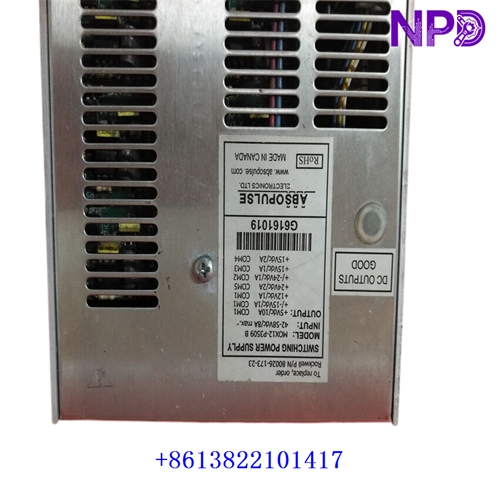

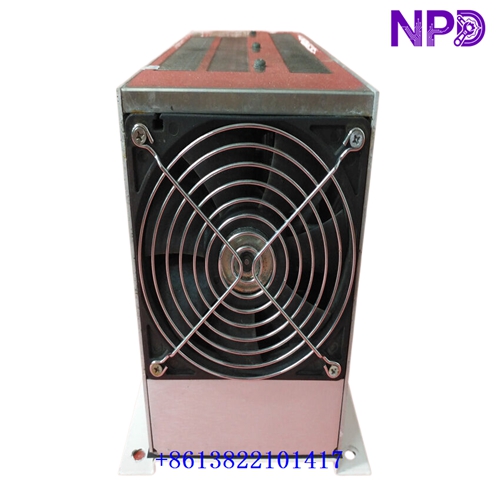

⚙️ The MOX12-P3509B (80026-173-23) is an industrial DC/DC power supply associated with ABSOPULSE power-conversion technology and Allen-Bradley industrial equipment. It provides regulated DC power rails for compatible control and drive electronics. The unit is used in industrial power-conversion and legacy automation applications where stable auxiliary power is required.
🔧 Before replacement, verify the exact manufacturer and nameplate, input voltage range, output voltages, current ratings, connector arrangement, and host equipment. The model is listed as discontinued by some suppliers, so confirm availability and the precise hardware revision before ordering.
ABSOLUTE MOX12-P3509 B 80026-173-23
2. Product Parameters and Datasheet
📋 Brand: ABSOPULSE / Allen-Bradley-associated part
Model: MOX12-P3509B
Part Number: 80026-173-23
Series: MOX12 Power Supply Series
Product Name: Industrial DC/DC Power Supply
Place of Manufacture: Canada reported by some suppliers; verify nameplate
Product Status: New Surplus / Used; confirm actual stock condition
Dimensions: Approximately 12.5 × 25 × 27.5 cm; verify unit variant
Weight: Approximately 4.5–5.9 kg; verify actual unit
Country of Origin: Canada reported; confirm from product label
Input Voltage: Reported 48 VDC nominal on one configuration; confirm exact variant
Output Voltage: Multiple DC outputs; verify the unit’s rating label
Power Requirements: Determined by the specified input and output ratings
Discontinued: Listed as discontinued by some suppliers; confirm with the manufacturer
3. Recommended Models
🔩 1. ABSOPULSE MOX12-P3509 — Related power supply model.
2. Allen-Bradley 80026-173-23 — Original associated part number.
3. Allen-Bradley 80026-044-06-R — Related power supply part family.
4. Allen-Bradley 80190-380-01-R — Related industrial power component.
5. Allen-Bradley 81000-199-53-R — Related industrial power component.
6. Allen-Bradley 20-750-PBUS — PowerFlex bus-related accessory; verify application.
7. Allen-Bradley 20-750-2262C-2R — PowerFlex accessory; verify configuration.
8. Allen-Bradley 20-750-2263C-1R — PowerFlex accessory; verify configuration.
9. Allen-Bradley 20-750-2262C-1R — PowerFlex accessory; verify configuration.
10. Allen-Bradley 20-750-2263C-2R — PowerFlex accessory; verify configuration.
11. Allen-Bradley 1606-XLE120E — Industrial DC power supply.
12. Allen-Bradley 1606-XLS240E — Industrial DC power supply.
13. Allen-Bradley 1606-XLS480E — Industrial DC power supply.
14. Allen-Bradley 1606-XLP100E — Industrial DC power supply.
15. Allen-Bradley 1606-XLE240E — Industrial DC power supply.
⚠️ These are related power-supply and industrial automation sourcing options, not guaranteed direct replacements. Match the input voltage, output rails, power rating, connectors, and equipment requirements before ordering.
