Description

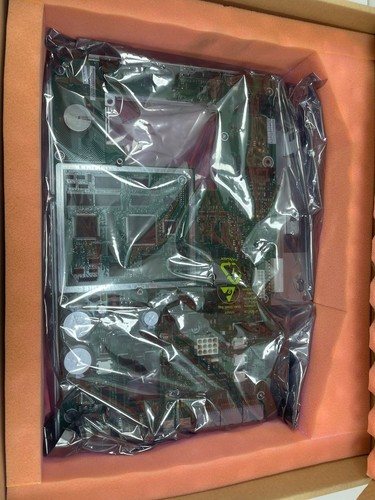

The Agilent G1530-60201 is a critical Main Board (often referred to as the Main Processor Board) designed for the Agilent 6890 Gas Chromatograph (GC) series. This board functions as the “brain” of the instrument, managing instrument control, data acquisition, and communication between the GC and the data system (ChemStation/OpenLab).
Technical Specifications ⚙️
| Feature | Specification |
|---|---|
| Component Type | Main Processor Board (PCBA) |
| System Compatibility | Agilent 6890A and 6890 Plus GC Systems |
| Part Number | G1530-60201 |
| Function | System control, detector signal processing, and external communication |
| Memory | Integrated volatile/non-volatile memory for firmware and methods |
| Connectivity | Supports GPIB (for legacy ChemStation) and RS-232/LAN (via external interfaces) |
| Diagnostic Status | Onboard LEDs for system power and status monitoring |
Key Troubleshooting & Maintenance Notes 🔧
- Electrostatic Discharge (ESD): As a complex high-density printed circuit board, the G1530-60201 is highly sensitive to ESD. Always use an anti-static wrist strap when handling the board during installation or removal.
- Firmware Compatibility: If you are installing a replacement board, ensure that the firmware version on the new board is compatible with your current GC configuration. Older 6890A units may require specific firmware matching to recognize peripherals like newer autosamplers.
- “Check System” Errors: If the instrument displays “Check System” or “Board Failure” messages, perform a visual inspection of the board to look for leaking capacitors or signs of electrical arcing.
- Backup Configuration: Before replacing the main board, attempt to back up your GC method parameters and calibration settings using the workstation software, as these are typically stored in the board’s non-volatile memory.
Recommended Related Components 📦
If your system is experiencing chronic failures, you may also need to inspect these associated modules:
- G1530-60560 (Power Distribution Board)
- G1530-60210 (Detector Interface Board)
- G1530-60540 (Analog-to-Digital Converter Board)
- G1530-60600 (Heater/Sensor Control Board)
- G1530-60500 (Main Power Supply)
- G1530-80510 (Internal Fan Assembly)
