Description

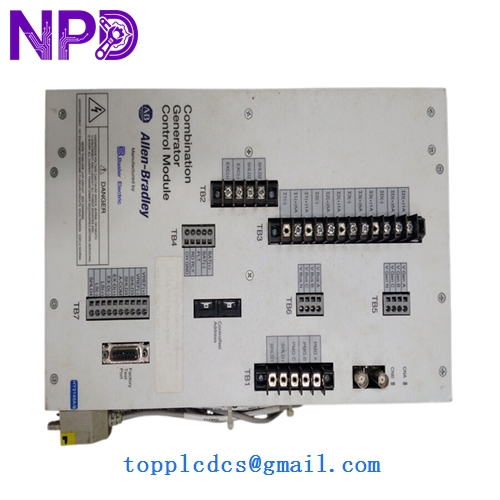

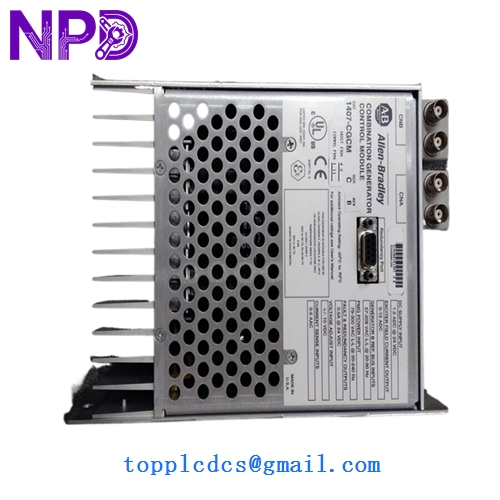

- Model: 1407-CGCM
- Brand: Allen-Bradley (Rockwell Automation)
- Series: CGCM (Combined Generator Control Module)
- Core Function: Integrated control of generator voltage, excitation, and synchronization.
- Product Type: Generator Control / Excitation Module
- Key Specs: 120/240 Vac sensing | Redundant ControlLogix Integration | VAR/PF Control
- Input Voltage Sensing: 100 to 240 Vac (Line-to-Line)
- Current Sensing: 1 A or 5 A nominal (from CTs)
- Communication Interface: Dual ControlNet ports (for redundancy)
- Control Modes: Voltage Regulation (AVR), Power Factor (PF), and Reactive Power (VAR)
- Protection Features: Over/Under Voltage, Over/Under Frequency, Reverse Power (32), Overexcitation
- Synchronization: Automatic synchronizer with phase, voltage, and frequency matching
- I/O Capacity: 8 Discrete Inputs, 4 Relay Outputs
- Integration: Native integration with Allen-Bradley ControlLogix via RSLogix 5000/Studio 5000
- Excitation Output: PWM controlled for external power bridge driving
- Operating Temperature: -20 °C to +70 °C
Application Scenarios & Pain Points
The is a highly specialized module. It’s not just a standard PLC card; it acts as the bridge between the digital logic of a ControlLogix rack and the high-power physics of a power generator. It handles the heavy lifting of excitation control and grid synchronization. If this module fails, you lose the ability to safely parallel your generator with the utility grid, potentially leading to blackouts or catastrophic mechanical damage to the generator shaft due to out-of-phase closure.
Typical Application Scenarios:
- Distributed Generation / Microgrids Managing the synchronization and load-sharing of multiple diesel or gas generators in a local power network.
- Industrial Co-generation Used in paper mills or chemical plants where onsite steam turbines generate electricity in parallel with the local utility.
- Emergency Power Systems Ensuring seamless power transition for data centers or hospitals by precisely matching frequency and phase before closing the main breaker.
Engineering Case Study: The “Phase Shift” Scare
Background: A large hospital’s backup power system used a 1407-CGCM to sync its three 2MW generators. During a monthly load test, Generator #2 failed to sync, throwing a “Phase Match Timeout” error.
The Problem: The engineer discovered that the 1407-CGCM module had an internal timing drift in its sensing circuitry. Because this module is the primary safety check for the breaker closure, the system (rightly) refused to connect the generator to the hospital’s critical bus.
The Solution: We provided a replacement 1407-CGCM from our inventory. Because this module uses ControlNet, the “Keep-Alive” and synchronization parameters are hardware-critical.
Result: After swapping the module and re-scheduling the ControlNet NUT (Network Update Time), the generator synced within 5 seconds. The hospital avoided a potential “out-of-sync” closure which could have cost hundreds of thousands in generator repairs.
Troubleshooting Quick Reference
Engineer’s Pro-Tip: “When you’re dealing with a 1407-CGCM, the biggest ‘gotcha’ is the ControlNet scheduling. If you swap this module, you must use RSNetWorx for ControlNet to reschedule the network. Simply plugging it in and downloading the PLC program won’t work—the I/O connections will remain faulted. Also, keep an eye on your PT (Potential Transformer) and CT (Current Transformer) ratios. If the module isn’t seeing the voltage it expects, it will never issue a ‘Permissive to Close’ signal. If you’re stuck on the scheduling part, give me a shout; I’ve got the old RSNetWorx workflows committed to memory.”
Do you need the specific Add-On Profile (AOP) for Studio 5000 integration? I can point you to the correct Rockwell download link—just let me know.
