Description
Product Core Brief
| Attribute | Detailed Information |
| Model | Allen-Bradley 1715-OB8DE |
| Brand | Rockwell Automation / Allen-Bradley |
| Series | 1715 Redundant I/O System |
| Core Function | 8-Channel Digital Output with Diagnostics and Redundancy |
| Product Type | Digital Output Module (Fault Tolerant) |
| Key Specs | 24 V DC / 8 Channels / Dual EtherNet/IP Connectivity |
Key Technical Specifications
- Output Channels: 8 isolated channels
- Operating Voltage: 18-32 V DC (24 V nominal)
- Output Type: Sourcing (Positive logic)
- Redundancy: Supports dual-redundant configuration in the 1715 base unit
- Diagnostics: Per-channel detection of open circuit and short circuit
- Fault Tolerance: Designed for SIL-2 and SIL-3 (Safety Integrity Level) applications
- Bus Interface: Communicates via 1715-AENTR adapter over EtherNet/IP
- Current Rating: 0.5 A per channel (max)
- Indicator LEDs: Power, Status, and individual Channel I/O status

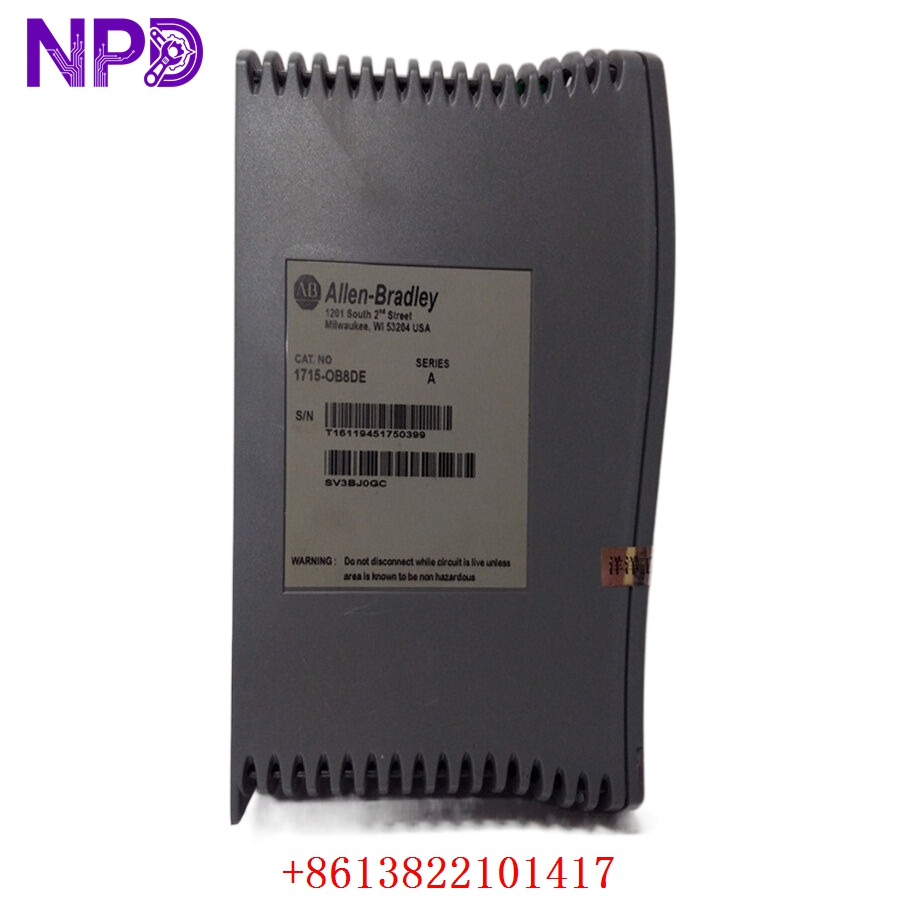

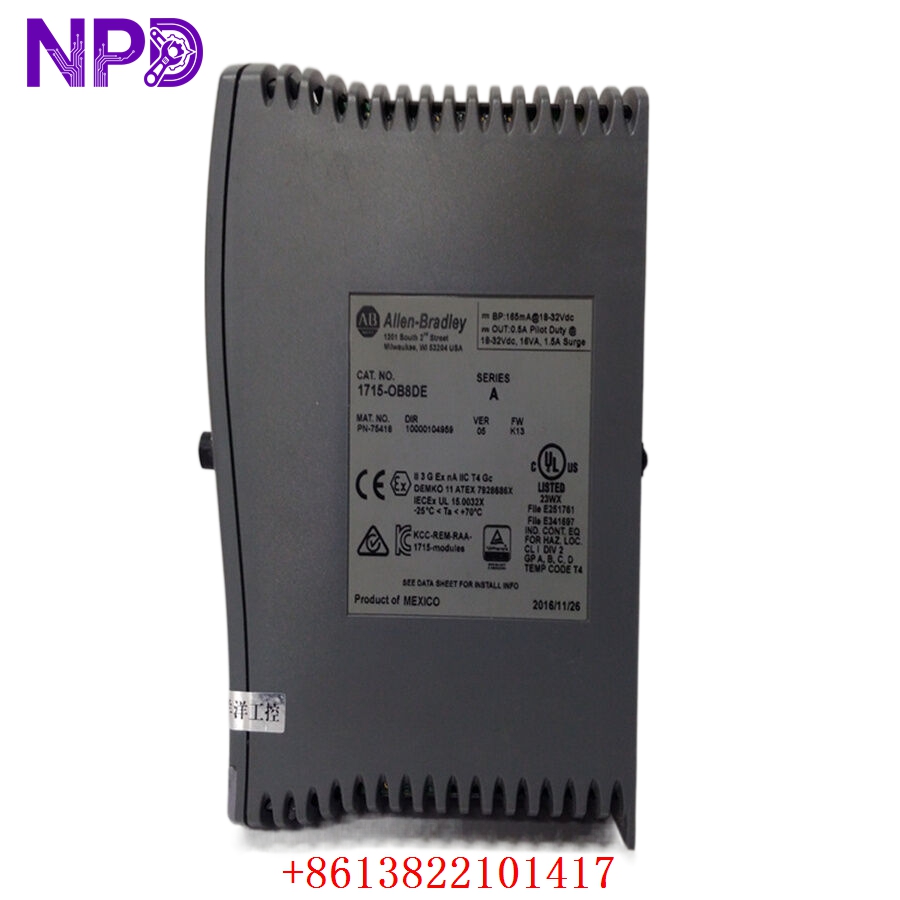

ALLEN BRADLEY 1715-OB8DE
ALLEN BRADLEY 1715-OB8DE
ALLEN BRADLEY 1715-OB8DE
Application Scenarios & Pain Points
In high-availability environments where a “single point of failure” is not an option, the 1715-OB8DE is essential. This isn’t your standard Point I/O or ControlLogix card; it’s part of a fault-tolerant system where two modules work in tandem to ensure that even if one card fails, the output to the field remains energized and controlled.
The Engineering Challenge:
If you’re managing a 1715 system, you’re likely in a critical process like oil refining or large-scale power gen. When the “FAULT” LED hits red on an 1715-OB8DE, the system remains running thanks to redundancy—but you are now operating “at risk.” Replacing these modules quickly is vital to restore the fault-tolerant safety net before a second failure causes a complete system shutdown.
Typical Application Scenarios:
- Oil & Gas – Emergency Shutdown (ESD) Systems
Controlling critical isolation valves where the output must remain stable even during a hardware failure.
- Chemical Processing – Fire & Gas (F&G) Systems
Managing sirens, beacons, and suppression triggers where reliability is a safety mandate.
- Power Generation – Boiler Protection
Ensuring that safety-related binary outputs for fuel shut-off valves are always available.
- Critical Infrastructure – Tunnel Ventilation & Drainage
Managing large fans and pumps where downtime could lead to hazardous environmental conditions.
Case Study: Restoring Redundancy in a North Sea Rig
Background: A North Sea offshore platform utilized a 1715 redundant I/O rack for its water injection system.
Problem: The 1715-AENTR reported a “Module Mismatch/Failure” on Slot 4. One of the redundant pair 1715-OB8DE modules had suffered an internal diagnostic failure. While the process didn’t stop, the system was no longer “Fault Tolerant.”
Solution: The site team needed a replacement immediately to restore the SIL rating. We provided a factory-sealed 1715-OB8DE and shipped it via specialized offshore logistics.
Result:
- Risk Mitigation: The module was hot-swapped while the system stayed live.
- Restoration: Full redundancy was restored in under 48 hours, satisfying safety audit requirements.
Compatible Replacement Models
The 1715 system requires specific base units and adapters to function.
| Original Model | Alternative/Related | Compatibility Level | Notes |
| 1715-OB8DE | 1715-OB8DE (Series B) | ✅ Direct Replacement | Fully interchangeable with Series A. |
| 1715-OB8DE | 1715-IB16D | ❌ Incompatible | This is an Input module; completely different function. |
| 1715-OB8DE | 1715-TADIB16D | ⚠️ Accessory | This is the Terminal Assembly required for the module. |
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance | Quick Check | Action |
| Module “OK” LED is Off | Power Supply Fault | ✅ High | Check the 24V supply to the 1715 base unit terminals. | Verify backplane power; replace module if power is present. |
| “Fault” LED is Solid Red | Internal Diagnostics Error | ✅ High | Check the Logix Designer “Module Properties” for fault codes. | Usually indicates an unrecoverable hardware failure. |
| “Channel” LED Blinking Red | Field Wiring Fault | ⚠️ Medium | Check for open-loop or short-circuit in the field wiring. | Correct field wiring; module is likely fine and doing its job. |
| I/O Mismatch in Studio 5000 | Firmware Version Conflict | ⚠️ Medium | Compare the firmware of the replacement with the existing pair. | Update/Downgrade firmware to match the redundant partner. |
Field Engineer’s Insight:
The 1715-OB8DE supports “Hot Swapping” (RIUP—Removal and Insertion Under Power). However, before you pull the bad card, double-check that its redundant partner is healthy (Green OK LED). If you pull the wrong one or both are failing, you will drop the load. Also, when installing the new module, ensure the firmware matches the existing one in the pair exactly, or the system might reject the synchronization.
Installation Warning: These modules sit on a 1715-TADOB8H or similar Terminal Assembly. Inspect the pins on the back of the module carefully. I’ve seen bent pins cause intermittent communication errors that look like software bugs but are actually physical damage.
Need help checking your firmware compatibility with a 1715-AENTR? Just ask, and I’ll pull the Rockwell compatibility matrix for you.
