Description

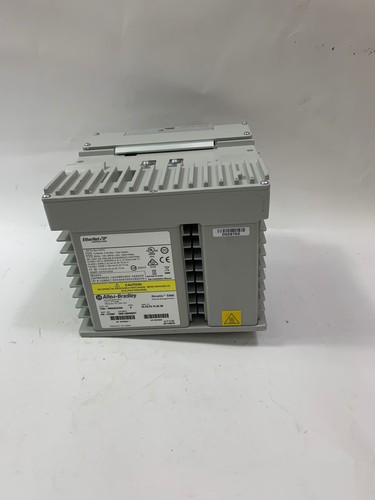

The Allen-Bradley 1783-HMS4C4CGN is an advanced industrial managed Ethernet switch belonging to the Stratix 5400 product family. Engineered for demanding industrial automation environments, it delivers high-performance Layer 2 switching and robust network traffic management. With a combination of copper and fiber-ready SFP ports, it ensures secure, high-speed communication and seamless integration between plant-floor equipment and enterprise architectures.
📊 Product Parameters
- 📏 Dimensions: 164.5 mm × 155.4 mm × 147.8 mm (Height × Width × Depth)
- ⚖️ Weight: Approx. 2.88 kg (6.35 lbs)
- 🌍 Country of Origin: United States / Mexico
- ⚡ Power Input: 12…54V DC redundant power supply
- 🔌 Port Configuration: 4 Combo 10/100 ports and 4 Combo 10/100/1000 ports
- 🌡️ Operating Temperature Range: -40°C to +70°C (-40°F to +158°F)
- 💧 Relative Humidity: 5% to 95% non-condensing
- 🛡️ Enclosure Protection Rating: Open-style (IP30 environmental rating)
- 🔗 Network Management: Managed Layer 2 switching with advanced diagnostic and security tools
- 🧱 Mounting Type: DIN Rail (top hat rail mount)
🛠️ Product Instructions
- ⚡ Power Disconnection: Always verify that power sources are completely switched off before connecting or disconnecting power and communication cables to protect internal circuitry.
- 🔧 DIN Rail Installation: Securely snap the switch onto a standard 35mm DIN rail inside an appropriate industrial enclosure, maintaining proper clearance above and below for ventilation.
- 🔌 Grounding Procedure: Connect a dedicated copper wire (minimum 10 AWG) from the chassis ground terminal directly to the system ground busbar to ensure proper electromagnetic compatibility.
- ✅ Initialization and Setup: Apply the 12–54V DC power inputs, access the web-based management interface using the default network settings, and configure VLANs or security settings to match plant network requirements.
❓ FAQ & Q&A
- 💬 Q1: Does the 1783-HMS4C4CGN support fiber-optic connections?
- 👉 A1: Yes, the switch includes combo ports supporting SFP modules (such as 1783-SFP optical transceivers), allowing seamless connection over long-distance fiber backbones.
- 💬 Q2: Why choose a Stratix 5400 managed switch over an unmanaged model?
- 👉 A2: Managed switches provide advanced features such as traffic prioritization (QoS), ring redundancy protocols (like Device Level Ring), and comprehensive security diagnostics essential for mission-critical industrial networks.
