Description
The Allen-Bradley 2364-SPM03A is a specialized Service Part Module (SPM) specifically designed for the 1336 FORCE high-performance AC drive family. This module serves as a critical internal component for managing power distribution and signal processing within the drive’s integrated architecture.
Product Parameters (Datasheet)
- Model Number: 2364-SPM03A
- Drive Compatibility: Allen-Bradley 1336 FORCE Series
- Component Type: Integrated Service Part Module (SPM)
- Function: Power and Control Signal Distribution
- Input/Output: Specialized internal connectors for 1336 FORCE backplanes
- Operating Voltage: System dependent (typically derived from the drive’s DC bus)
- Protection Rating: Open type (IP00) for internal installation
- Mounting: Internal chassis-mount within the drive frame
Country of Origin
This component was engineered and manufactured in the United States by Rockwell Automation.

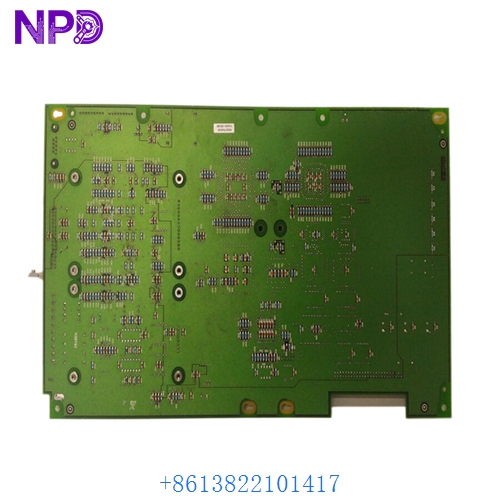

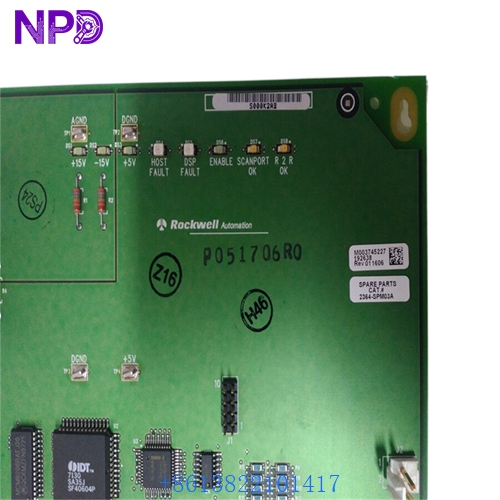

ALLEN BRADLEY 2364-SPM03A
ALLEN BRADLEY 2364-SPM03A
ALLEN BRADLEY 2364-SPM03A
Application Fields
The 2364-SPM03A is essential for maintaining and repairing the 1336 FORCE series drives used in:
- Metals Industry: High-torque control for steel mill rollers and tensioners.
- Paper & Pulp: Managing speed and tension on large-scale paper machine sections.
- Oil & Gas: Controlling large-scale pumping and compression units.
- Marine Propulsion: Precision motor control for electric thrusters and shipboard systems.
- Automotive: Heavy-duty conveyor and assembly line motor management.
Product Usage Instructions
- Safety First: Before attempting any work, disconnect all power to the 1336 FORCE drive. Wait at least 5 minutes for the internal DC bus capacitors to discharge to safe levels.
- Access: Open the main drive enclosure. The SPM is typically located in the upper or central control section of the chassis.
- Removal: Carefully disconnect the ribbon cables and power leads. Remove the mounting screws securing the 2364-SPM03A to the frame.
- Installation: Align the new module with the mounting holes and secure it with screws. Reconnect all cables, ensuring they are firmly seated and locked.
- Initialization: Upon re-powering, the drive’s main control board (L-frame or similar) will perform a self-test to verify the integrity of the SPM connection.
Product Technical Description
The 2364-SPM03A is more than a simple connector board; it is the “nervous system” of the 1336 FORCE drive. Technically, it handles the routing of low-voltage gate signals to the power IGBTs and feeds back high-voltage diagnostic data to the processor. The 1336 FORCE series is known for its Field Oriented Control (FOC) capabilities, and the SPM ensures that these high-speed calculations are accurately translated into power stage actions. The module is built to withstand high temperatures and vibration levels consistent with heavy industrial drive environments.
Q&A (Common Questions)
Q: Can this module be used in a 1336 PLUS or PLUS II drive? A: No. The 2364-SPM03A is specifically keyed and designed for the 1336 FORCE architecture. Using it in other 1336 variants may cause physical or electrical damage.
Q: Does this module require firmware programming? A: No, the 2364-SPM03A is a hardware-based distribution module. The drive’s logic is held in the main control board (e.g., the 74102 series boards).
Q: What are the signs of a failing SPM? A: Common symptoms include intermittent gate faults, “Power Loss” errors when the supply is stable, or failure of the drive to initialize despite a functioning control board.
Q: Is it safe to repair this board at the component level? A: Due to the high-precision nature of the 1336 FORCE control loops, component-level repair is not recommended. Replacing the entire SPM03A ensures the drive maintains its original safety and performance specifications.
Similar Model Recommendations
- Allen-Bradley 2364-SPM01A: Lower-tier variant for different frame sizes.
- Allen-Bradley 1336-L6: Main control board for 1336 series drives.
- Allen-Bradley 1336-MOD-L1: Language/Interface modules for drive programming.
- Allen-Bradley 2364-FAN01: Dedicated cooling fan assembly for FORCE drives.
- Allen-Bradley 1336F-BRF50: Typical 1336 FORCE drive complete unit.
For technical documentation and stock availability of the Allen-Bradley 2364-SPM03A and other 1336 FORCE spare parts, please contact our support team.
