Description
Product Introduction
The Allen-Bradley 2711P-RDB15C/B is a 15-inch color keypad and touchscreen display module designed for the PanelView Plus 1500 operator terminal family. It provides a visual interface for industrial machine operation, process monitoring, alarm viewing, and operator interaction with automation systems.
Featuring a color TFT LCD, analog resistive touchscreen, and integrated keypad, this module supports both touch-based commands and physical key input. Its modular design allows the display assembly to be replaced separately from the logic module, subject to compatibility with the installed terminal configuration.
This part is suitable for industrial maintenance, HMI repair, and replacement projects where the existing equipment requires the matching 2711P-RDB15C display module. Rockwell Automation lists this catalog number as discontinued, so verify the exact series and replacement requirements before ordering.

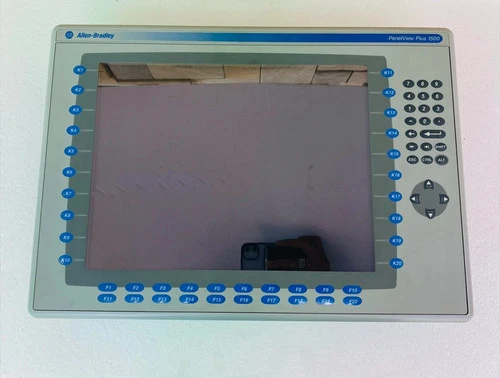

Allen Bradley 2711P-RDB15C
Key Features
- 🖥️ 15-Inch Color Display: TFT LCD for industrial process visualization.
- 👆 Dual Operator Input: Combines an analog resistive touchscreen with a physical keypad.
- 🎛️ PanelView Plus Compatibility: Designed for the PanelView Plus 1500 terminal family.
- 📊 High-Resolution Graphics: 1024 × 768 pixel display resolution.
- 🔆 Display Brightness: Approximately 300 cd/m².
- 🔧 Modular Replacement: Display module can be serviced separately from the logic module when compatible.
- 🏭 Industrial Applications: Suitable for machine control interfaces, production monitoring, and process visualization.
- ⚠️ Discontinued Product: Confirm availability, series revision, and terminal compatibility before purchase.
Product Specifications
| Specification | Details |
|---|---|
| Brand | Allen-Bradley |
| Model | 2711P-RDB15C/B |
| Series | PanelView Plus 1500 |
| Product Name | Color Keypad/Touch Display Module |
| Product Type | HMI Display Module |
| Display Size | 15 inches |
| Display Technology | Color active-matrix TFT LCD |
| Resolution | 1024 × 768 pixels |
| Display Area | Approximately 304 × 228 mm |
| Brightness | 300 cd/m² |
| Operator Input | Keypad and touchscreen |
| Touchscreen Type | Analog resistive |
| Backlight | CCFL, specified minimum life 50,000 hours |
| Input Voltage | 85–264 V AC listed for the display module configuration |
| Power Consumption | Terminal specifications list up to 70 W; verify the complete system configuration |
| Overall Dimensions | Approximately 469 × 330 × 65 mm (W × H × D) |
| Panel Cutout | Approximately 391 × 305 mm (W × H) |
| Approximate Weight | 4.6 kg |
| Place of Manufacture / Origin | United States listed by manufacturer |
| Country of Origin | United States listed by manufacturer |
| Product Status | Discontinued |
| Discontinued Date | September 30, 2022 |
| Condition | Used; seller states tested and in good condition |
| Compatibility Note | Verify display series and installed logic module before replacement |
Frequently Asked Questions
Q1: What is the Allen-Bradley 2711P-RDB15C/B used for?
A: It is a 15-inch HMI display module for PanelView Plus operator terminals, allowing operators to view process information and interact with machine-control applications through the keypad and touchscreen.
Q2: Does this module include both keypad and touchscreen input?
A: Yes. The RDB model designation identifies the combined keypad-and-touch display configuration.
Q3: Does the display module include the logic module?
A: The 2711P-RDB15C is a display module, not necessarily a complete PanelView Plus terminal. Confirm exactly which components are included in the seller’s package.
Q4: Is the 2711P-RDB15C still manufactured?
A: Rockwell Automation lists this catalog number as discontinued effective September 30, 2022. Remaining stock, used units, and repair services may be available through suppliers.
Q5: Can it replace another PanelView Plus 1500 display?
A: Not without checking the exact catalog number and series. Confirm the existing terminal’s hardware revision, display configuration, and logic-module compatibility before installation.
Q6: What should I check before ordering?
A: Verify the full part number, series designation, display condition, touchscreen response, keypad operation, backlight condition, mounting dimensions, and included components.
Q7: Is this suitable for industrial maintenance and repair?
A: Yes, when the replacement is approved for the target terminal. It can be useful for restoring an existing HMI installation without changing the entire operator terminal.
Recommended Related Allen-Bradley Models
These related display modules and accessories may be useful when maintaining PanelView Plus equipment. They have different screen sizes or input configurations and are not all direct substitutes.
- 2711P-RDK15C — PanelView Plus 1500 color keypad display module
- 2711P-RDT15C — PanelView Plus 1500 color touchscreen display module
- 2711P-RDB12C — PanelView Plus 1250 color keypad/touch display module
- 2711P-RDK12C — PanelView Plus 1250 color keypad display module
- 2711P-RDT12C — PanelView Plus 1250 color touchscreen display module
- 2711P-RDB10C — PanelView Plus 1000 color keypad/touch display module
- 2711P-RDK10C — PanelView Plus 1000 color keypad display module
- 2711P-RDT10C — PanelView Plus 1000 color touchscreen display module
- 2711P-RDB7C — PanelView Plus 700 color keypad/touch display module
- 2711P-RDK7C — PanelView Plus 700 color keypad display module
- 2711P-RDT7C — PanelView Plus 700 color touchscreen display module
- 2711P-RN6 — PanelView Plus communication module for supported DH+/DH-485 and Remote I/O configurations
- 2711P-T15C4D — PanelView Plus 1500 color touchscreen terminal configuration
- 2711P-B15C4A — PanelView Plus 1500 color keypad/touch terminal configuration
- 2711P-TD005 — PanelView Plus 6 technical documentation reference
Ordering Note
Please confirm the full catalog number 2711P-RDB15C/B, including the series suffix, and compare it with the label on your existing terminal. The listed item is described as used and tested by the seller; request confirmation of touchscreen functionality, keypad response, display brightness, and any included accessories before purchase. Since the product is discontinued, verify compatibility carefully before installing it in an operating system.
