Description

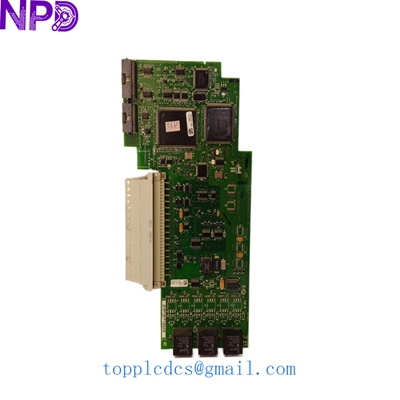

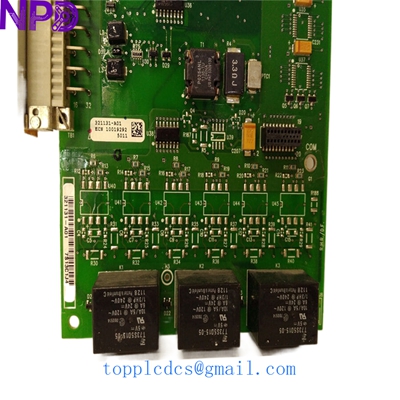

- Model: Allen-Bradley 321131-A01 (Sub-assembly: 337672-A01)
- Brand: Allen-Bradley (Rockwell Automation – USA)
- Series: 1336 Plus / 1336 Force High-Power AC Drives
- Core Function: Gate Driver / Power Interface Board for Large Frame Drives
- Product Type: Gate Drive PCB Assembly
- Key Specs: Multi-channel IGBT triggering, Isolated feedback loops, 24 V DC logic interface
- Drive Compatibility: 1336 Plus / Force Frame E, F, and G (High HP)
- Primary Function: Converts low-level logic signals to high-current IGBT gate pulses
- On-board Protection: Desaturation detection (Short-circuit protection for IGBTs)
- Isolation: High-voltage opto-coupling between control and power stages
- Input Voltage: +5 V, +15 V, and -15 V DC from the main power supply board
- Feedback: Real-time current and temperature sensing back to the CPU
- Connectors: Multi-pin ribbon cable headers for logic; bolt-on or push-on terminals for gate leads
- PCB Revision: 337672-A01 (Base board etching)
- Cooling Requirements: Ambient airflow within the drive chassis
- Operating Temp: 0 to 50 °C (32 to 122 °F)
ALLEN BRADLEY 321131-A01 337672-A01
Application Scenarios & Pain Points
The 321131-A01 is the “muscle” interface of a high-horsepower Allen-Bradley drive. While the CPU calculates the math, this board handles the violent switching of the power transistors. In my experience, this is the first board to fail if there is a motor short or a massive line surge. When it goes, the drive usually throws a “Ground Fault” or “Overcurrent” trip that won’t reset, effectively paralyzing the heavy machinery it controls.
Typical Application Scenarios:
- Mining – Large Conveyors Driving 100+ HP motors for ore transport where high torque and reliable switching are mandatory.
- Water Treatment – Centrifugal Pumps Managing the soft-start and continuous speed control of high-volume water pumps.
- Oil & Gas – Drilling Rigs Used in top-drive systems where the drive must withstand harsh electrical environments and high vibration.
- Manufacturing – Extruders Controlling the precise heating and torque requirements of plastic or rubber extrusion lines.
The “IGBT Chain Reaction”: I’ve seen a few engineers make the mistake of replacing blown IGBT modules without checking the 321131-A01 driver board. If the gate driver has a “leaky” transistor on the output, it will hold the new IGBT in a partially-on state. You’ll power up the drive, hear a loud pop, and lose another $2,000 in power modules instantly. Rule of thumb: If the IGBTs are dead, always swap the driver board too.
Compatible Replacement Models
The 1336 family had many sub-revisions. The 321131-A01 is often the assembly number for the 337672-A01 bare board.
| Original Model | Replacement Model | Compatibility | Main Difference | Impact |
| 321131-A01 | 321131-A02 | ✅ Direct Replacement | Improved Noise Immunity | Plug & Play |
| 321131-A01 | 74101-255-xx | ⚠️ Hardware Compatible | Different terminal layout | May require cable adjustment |
| 321131-A01 | 20-750-xxxx | ❌ Incompatible | PowerFlex 750 Series | Different architecture |
Engineering Note: Always verify the “A01” suffix. AB made minor timing changes between A01 and earlier revisions. Using a mismatched revision in a redundant or multi-drive setup can cause slight phase imbalances under heavy load.
ALLEN BRADLEY 321131-A01 337672-A01
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relation to This Board | Quick Check | Action |
| “Overcurrent” (Manual Reset) | Blown Gate Circuit | ✅ High | Check gate resistors for charring | Replace board immediately |
| “Ground Fault” on Start | Isolation Breach | ✅ High | Test insulation between gate/emitter | Replace board |
| Uneven Motor Sound | Mismatched Firing | ⚠️ Medium | Use Scope to check PWM pulses | If pulses uneven, replace board |
| Drive Won’t Power Up | Shorted Logic Rail | ⚠️ Medium | Measure 5V/15V at board input | Isolate board to see if rail returns |
Our 5-Point Quality Assurance Process:
- Traceability: We verify the 337672-A01 etching against the 321131-A01 assembly spec.
- Component Stress Test: We use a Huntron Tracker to verify the “signature” of the gate driver outputs against a known good board.
- Load Simulation: The board is connected to an IGBT simulator and pulsed at 4 kHz for 8 hours to ensure thermal stability.
- Visual Inspection: Every solder joint is inspected under 10x magnification for “cold joints” or vibration-induced cracks.
- Safe Handling: Shipped in a custom-fit, anti-static “clamshell” box to prevent physical or ESD damage during transit.
For a formal quote or technical datasheets: Visit www.newplcdcs.com
