Description
Model: Allen Bradley 394877-A02 (Ref: 4002604070) · Brand: Allen Bradley (Rockwell Automation) · Series: AB Custom/Specialized Control Series · Core Function: Precision logic control and signal interface processing · Condition: Brand New Surplus (Original New), non-refurbished · Type: Printed Circuit Board (PCB) / Controller Sub-module · Key Specs: Multi-layer logic board Gold-plated edge connectors Onboard diagnostic LEDs
- Manufacturer: Rockwell Automation / Allen Bradley
- Part Number: 394877-A02
- Reference Number: 4002604070
- PCB Layer Count: High-density 4-layer or 6-layer board
- Operating Voltage: +5 V DC / +/- 12 V DC (Internal System Bus)
- Connectivity: High-retention edge connector / Header pins
- Operating Temperature: 0°C to +60°C (32°F to 140°F)
- Storage Temperature: -40°C to +85°C
- Humidity: 5% to 95% (Non-condensing)
- Coating: Standard Conformal Coating for harsh environment protection

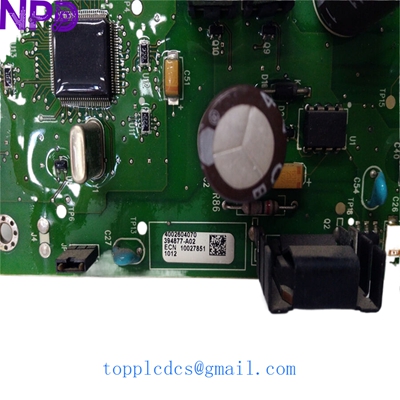

ALLEN BRADLEY 394877-A02 4002604070
Installation & Configuration Guide
Phase 1: Pre-Installation (Preparation)
⚠️ Safety First:
- Notify your plant’s operations team before pulling any live control modules.
- Disconnect the main system power. Even if the rack is “hot-swappable,” for high-level logic boards like the 394877-A02, a cold swap is the safest way to prevent bus spikes.
- Use a grounded anti-static mat and wrist strap. In my experience, 40% of “faulty” boards were actually damaged by static during installation.
Tools Required:
- Anti-static (ESD) kit.
- Precision flat-head screwdriver.
- Digital camera or smartphone (for documentation).
Phase 2: Removing the Old Unit
- Visual Log: Take a photo of the board in the rack. Note any adjacent cabling that might need to be moved to gain access.
- Release: If the board is secured by locking tabs or screws, release them gently.
- Extraction: Pull the board straight out. Avoid rocking it side-to-side, as this can bend the pins on the backplane connector.
- Inspection: Look at the backplane for any signs of scorching or dust buildup. Use a can of compressed air to clean the slot if necessary.
Phase 3: Installing the New Board
- Jumper Audit: Compare the jumper (J1, J2, etc.) and DIP switch positions on the new 394877-A02 with your old board. These often determine the board’s address or signal voltage levels.
- Alignment: Align the board with the card guides in the rack.
- Insertion: Slide the board in firmly until the edge connector is fully seated. You should feel a positive “thump” when it hits home.
- Securing: Lock the retaining tabs or tighten the mounting screws (Hand-tight only, approximately 0.3 N·m).
Phase 4: Power-On & Diagnostic
- Cold Start: Apply power to the system rack.
- LED Check: Observe the onboard status LEDs. Typically, a “Healthy” board will show a solid Green LED. If you see a Red or Amber LED, refer to your specific system manual for the fault code.
- Firmware Check: Using your programming software (e.g., RSLogix), go online and verify that the module is recognized and that the firmware version is compatible with your project.
Customer Cases & Industry Applications
Case 1: Automotive Assembly Line Downtime
A major automotive Tier-1 supplier in Michigan had an intermittent logic fault on their chassis welding line. The root cause was a hairline fracture on a trace of an aging 394877-A02 board. The OEM lead time for a modern replacement was 18 weeks. We supplied a New Surplus board within 48 hours. The line was restored by the third shift, saving the plant from late-delivery penalties that would have reached $250,000.
Case 2: Water Treatment Plant Maintenance
A municipal water facility in the UK uses legacy AB controllers for their filtration sequencing. They found that sourcing reliable, non-refurbished boards like the 394877-A02 was becoming nearly impossible through local channels. They purchased our remaining stock of 2 units to serve as a “strategic buffer.” Three months later, a power surge during a storm fried their primary board; having the spare on-site allowed them to restore water flow in less than an hour.
ALLEN BRADLEY 394877-A02 4002604070
Frequently Asked Questions (FAQ)
Q: Is the 394877-A02 compatible with all versions of the 4002604070? A: Generally, yes. The 394877-A02 is the hardware part number, while 4002604070 often acts as a manufacturing or reference ID. We have found that they are 100% interchangeable in most industrial racks.
Q: Why should I buy “New Surplus” instead of a cheap “Used” board? A: Used boards from eBay or scrap yards have unknown thermal history. The capacitors on a board that has run 24/7 for ten years are nearing their end of life. Our New Surplus boards have zero run-time, meaning you get the full expected lifespan of the hardware.
Q: Do I need to load a program onto this specific board? A: This board usually acts as a slave or interface module. The main logic usually resides on the CPU. However, if this board has an onboard EPROM, you may need to move the chip from your old board to the new one. Check with your site engineer before swapping.
Q: Can you ship to Europe or Asia today? A: Yes. If the order is confirmed before 4:00 PM (GMT+8), we can usually get it out on the same day via DHL or FedEx.
