Allen-Bradley 509-FOD | NEMA Size 5 Full Voltage Starter

Allen-Bradley 509-FOD | NEMA Size 5 Full Voltage Starter

Original price was: $10,000.00.Current price is: $1,085.00.

Product NO：509-FOD

Brand：Allen-Bradley

Delivery time:  In stock

Product status:   Brandnew

Product situation: one year warranty, Origin of Manufacture

Add to quote
Category: Tags:
Felix Sales Manager
[email protected] +86 138 2210 1417 8613822101417
WhatsApp
QR
Chat Now
There are still many products that have not been released yet. If you have any products that you cannot find, you can ask me for a quote! Reminder: The product images published on this website are not actual real products and are for reference only!

Description

The Allen-Bradley 509-FOD is a heavy-duty NEMA Size 5 full-voltage magnetic starter, expertly engineered for controlling large-scale industrial motors up to 200HP. This robust electromechanical device is designed to handle high-inrush currents and demanding duty cycles in environments such as pumping stations, HVAC systems, and heavy manufacturing lines. Featuring a reliable 120V operating coil and a 3-pole configuration, the 509-FOD ensures consistent, dependable power distribution and motor protection in critical 600V, 3-phase systems.

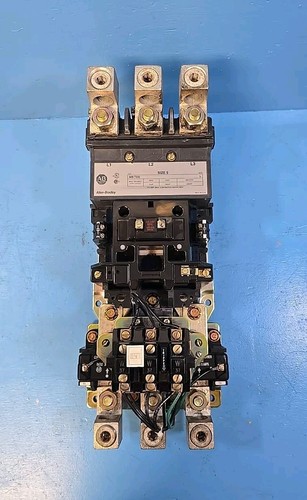

Allen Bradley 509-FOD 200HP 270A 600V 3PH 3Pole Nema 5 Starter 120V Coil Image 1 of 2

📋 Technical Specifications

  • NEMA Size: Size 5 frame, rated for high-capacity industrial motor control.
  • Horsepower Rating: 200HP (at 460-600V) providing reliable power for large loads.
  • Current Rating: 270A continuous current capacity for heavy-duty switching.
  • Voltage Rating: Rated for 3-phase, 600V industrial supply lines.
  • Pole Configuration: 3-Pole design for standard three-phase motor isolation.
  • Coil Voltage: 120V AC coil for standard industrial control signal compatibility.
  • Enclosure Suitability: Compatible with NEMA-rated enclosures (Type 1 or 12 common) for site-specific protection.
  • Contact Material: Silver-cadmium oxide contacts for maximum arc resistance and longevity.
  • Mechanical Life: High-cycle rating designed for years of reliable operation in automated facilities.
  • Mounting Style: Heavy-duty base mounting, designed for standard electrical panel backplane installation.



🚀 Recommended Related Allen-Bradley Motor Control Components

To maintain system integrity or expand your motor control center (MCC) architecture, consider these complementary components:

  1. Allen-Bradley 509-FOB: Size 5 Starter with alternate coil voltage (240V).
  2. Allen-Bradley 193-E1 Plus: Electronic Overload Relay compatible with Size 5 contactors.
  3. Allen-Bradley 599-FOD: Reversing version of the Size 5 starter for bidirectional motor control.
  4. Allen-Bradley 140G-M: Molded Case Circuit Breaker (MCCB) for circuit protection.
  5. Allen-Bradley 800H Series: Industrial push-button stations for remote starter operation.
  6. Allen-Bradley 509-EOD: NEMA Size 4 starter for lower horsepower secondary applications.
  7. Allen-Bradley 141A Series: IEC-style terminal blocks for control wiring management.
  8. Allen-Bradley 592 Series: Eutectic alloy thermal overload relays (legacy protection).
  9. Allen-Bradley 700-P Series: Heavy-duty control relays for interlocking logic.
  10. Allen-Bradley 100-D Series: IEC-rated contactors for modern, space-saving alternatives.
