Description

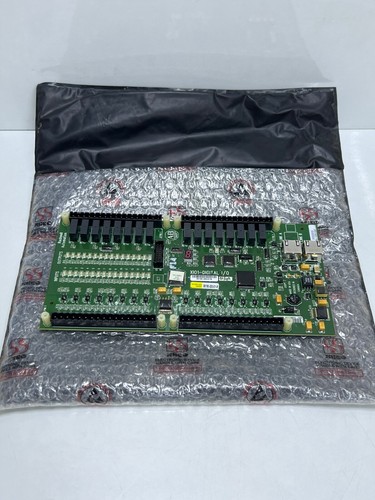

ALLEN BRADLEY 80190-300-01-R Technical Datasheet
| Parameter | Specification Details |
|---|---|
| Brand | Allen Bradley (Rockwell Automation) |
| Model Number | 80190-300-01-R |
| Product Type | Digital I/O PC Board Assembly |
| Function | Digital Input/Output Signal Processing |
| Input Voltage | 24V DC Nominal |
| Signal Channels | Multi-channel Digital Logic |
| Dimensions | 15.2 cm x 10.8 cm x 2.5 cm |
| Weight | 0.45 kg (approx. 1.0 lbs) |
| Country of Origin | USA |
| Mounting Type | Chassis / Rack Mount |
| Operating Temp | 0°C to 60°C (32°F to 140°F) |
| Storage Temp | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% Non-condensing |
| Compatibility | Legacy Allen Bradley Control Systems |
Common Questions Q&A
Q: Can the 80190-300-01-R be hot-swapped while the system is running? A: It is highly recommended to power down the controller before removal or insertion to avoid electrical surges that could damage the sensitive CMOS components on the board.
Q: What should I do if the “Status” LED on the board is not illuminated? A: First, verify the backplane power delivery. If the power is stable, check the seat of the board in the rack. If the issue persists, the board may require a hardware diagnostic check.
Q: Is this board compatible with newer Allen Bradley Logix platforms? A: This specific part number is primarily designed for legacy series. For migration to modern platforms, a conversion module or specific communication gateway may be required.
Industry News Context
The demand for legacy components like the 80190-300-01-R has seen a significant uptick as global manufacturers focus on “Life Extension” programs for existing infrastructure. Recent industry reports suggest that instead of full system overhauls, many facilities are opting to stock critical spare parts to avoid the high costs and downtime associated with complete digital transformations. This trend is driving a specialized market for certified refurbished and surplus I/O modules, ensuring that proven industrial processes remain operational well beyond their original expected service life.
