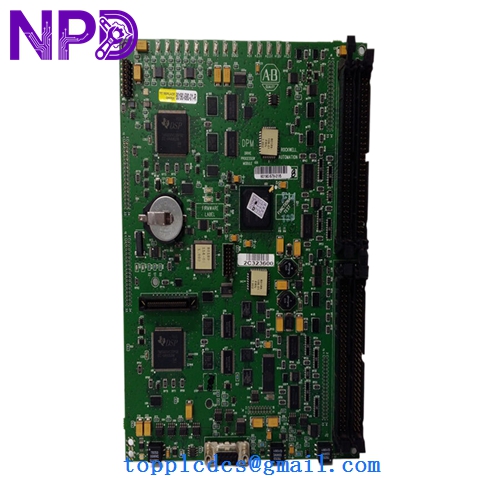

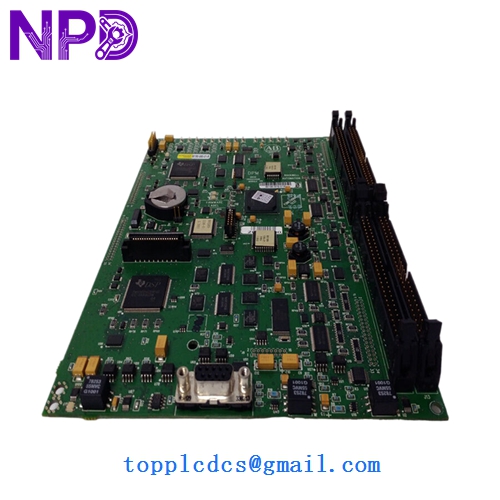

Description
- Model: 80190-580-51
- Brand: Allen-Bradley / Reliance Electric (Rockwell Automation)
- Series: 1336 PLUS / GV3000 / FlexPak Drive Series
- Core Function: Gate Driver / Power Interface for high-horsepower motor drives.
- Product Type: Printed Circuit Board (PCB)
- Key Specs: Multi-layer power distribution | Gate pulse conditioning | Snubber circuit interface
- Voltage Class: Compatible with 460V / 575V Drive Systems
- Functionality: Converts low-level logic signals into high-current pulses to trigger IGBTs or SCRs.
- Isolation: High-voltage opto-isolation for logic protection
- Feedback: Integrated current and temperature sensing feedback loops
- Connection: Multi-pin ribbon cable headers for control board + bolt-on terminals for power stage
- Dimensions: Approx. 210mm x 150mm (Varies by revision)
- Compatibility: Primarily used in high-frame-size (Frame E, F, G) industrial drives.
Application Scenarios & Pain Points
The 80190-580-51 is a critical “bridge” component within a large Allen-Bradley or Reliance drive. It sits between the delicate CPU control board and the high-power IGBT (Insulated Gate Bipolar Transistor) modules. Because this board handles the actual switching energy for the motor, it is subject to high thermal stress and electrical noise. When this board fails, the drive usually throws an “Overcurrent,” “Ground Fault,” or “Load Loss” alarm, effectively paralyzing the heavy machinery it controls.
Typical Application Scenarios:
- Metal & Steel Mills Controlling large DC or AC motors in rolling mills where precise torque and high reliability are essential for production safety.
- Paper & Pulp Processing Driving huge rollers in paper machines; a failure here can cause a “paper break,” leading to hours of cleanup and lost material.
- Oil & Gas Pumping Managing Variable Frequency Drives (VFDs) for large-scale pumps where downtime costs are measured in thousands of dollars per hour.
Engineering Case Study: The “Intermittent Fault” Mystery
Background: A steel plant using a legacy Reliance GV3000 drive experienced random “Gate Drive Faults” during high-torque cycles. The drive would reset and run fine for an hour, then trip again.
The Problem: Upon inspection, the 80190-580-51 board showed signs of “heat soak.” A small capacitor near the gate output was leaking, causing the voltage to dip only when the motor pulled maximum current.
The Solution: We supplied a replacement 80190-580-51 from our tested inventory. Because these boards are legacy, we performed a high-voltage insulation test before shipping to ensure no leakage current was present.
Result: The customer swapped the board, and the drive returned to stable operation. The plant avoided the $50,000 cost of a full drive system upgrade by simply replacing the faulty interface card.
Compatible Replacement Models
| Original Model | Replacement Model | Compatibility | Key Differences | Change Impact |
|---|---|---|---|---|
| 80190-580-51 | 80190-580-01 | ⚠️ Hardware | Lower current rating | Only for smaller Frame sizes |
| 80190-580-51 | 1336-BDB-SPxx | ❌ Incompatible | Modern 1336 series | Different physical mounting |
| 80190-580-51 | 80190-580-51 (Rev A-Z) | ✅ Direct | Manufacturing revision | Fully interchangeable |
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relation to 80190-580-51 | Quick Check | Action |
|---|---|---|---|---|
| “Overcurrent” on Start | Shorted IGBT or Driver | ✅ High | Check gate-to-emitter resistance (should not be 0Ω). | Replace board and IGBTs. |
| “Gate Drive” Fault | Loss of 15V/24V rail | ✅ High | Measure control voltages on the board headers. | Check power supply or replace board. |
| Motor “Groaning” / Noise | Unbalanced firing | ✅ High | Use an oscilloscope to check gate pulses. | Replace board if pulses are missing. |
| Burned Smell | Snubber Resistor failure | ⚠️ Medium | Visually inspect the resistors on the board. | Check for carbon tracking. |
Engineer’s Pro-Tip: “When you’re replacing the 80190-580-51, DO NOT just swap the board and hit ‘Start.’ If the board failed because of a shorted IGBT, the new board will blow up the second you apply power. Always check your IGBTs with a multimeter first. Also, these legacy boards often use tiny ‘standoff’ spacers—don’t lose them! If the board isn’t mounted with the proper clearance, you’ll get an arc-over to the chassis. If you need the specific gate-firing sequence or the pinout for the main ribbon connector, let me know—I’ve got the old Reliance engineering manuals digitized.”
I can provide high-resolution photos of the specific board revision we have in stock to ensure it matches your existing drive hardware.
