Description
- Model: AL132 / AL132A (Part Number: STO0982E01)
- Brand: ALSTOM (France) / GE Power
- Series: Alstom High-Power Converter & Drive Series
- Core Function: Main control and firing logic for power electronic converters
- Type: Control Board / Processor Module
- Key Specs: Multi-processor architecture | Fiber optic I/O support | High-speed gate drive logic
- Processing: 32-bit digital signal processing for real-time motor/converter control
- Logic Voltage: Integrated 5 V / 15 V DC regulation from backplane
- Communication: Proprietary Alstom high-speed bus and RS232 diagnostic port
- Optical Interface: Multiple fiber optic ports for noise-immune gate pulse transmission
- Protection: Over-voltage, under-voltage, and hardware watchdog timers
- I/O Capacity: Dedicated analog inputs for phase current and DC link voltage sensing
- Firmware Slot: Socketed EPROM/Flash for application-specific code
- Board Rev: AL132A (Updated revision with enhanced thermal stability)
- Compliance: CE, Industrial EMC standards for high-interference environments

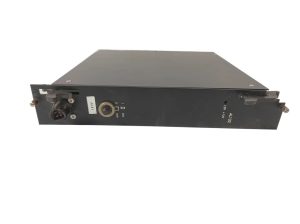

AL132A
Application Scenarios & Pain Points
In large-scale power conversion—such as excitation systems for generators or high-power motor drives—the AL132 acts as the central intelligence. It calculates the exact microsecond when to fire the thyristors or IGBTs. If this board fails, the entire drive or generator trips, leading to a “Black Start” scenario or massive production losses. Because these boards are often found in legacy Alstom systems now managed by GE, finding an exact STO0982E01 revision is a common bottleneck for maintenance teams.
Typical Application Scenarios:
- Power Generation (Excitation Systems) Managing the field current of large synchronous generators to maintain grid voltage stability.
- Marine Propulsion Controlling high-power frequency converters for electric ship propulsion drives.
- Metals & Mining Driving heavy-duty motors for rolling mills or mine hoists requiring high torque at low speeds.
- Renewable Energy Used in large-scale wind or hydro converters for grid synchronization.
Case Study: The Unplanned Outage in a Hydro Plant
Background: A hydroelectric plant reported that their static excitation system was failing to build up voltage during startup. Problem: Diagnostic logs indicated a “Gate Drive Timeout.” Upon inspection, the AL132A board had visible heat damage near the fiber optic transmitters. The board was over 15 years old and had reached its thermal limit. Solution: We provided a verified STO0982E01 control module from our climate-controlled stock. Result:
- Recovery: The plant was back online within 48 hours.
- Outcome: The new revision (AL132A) featured better component spacing, reducing the risk of future heat-related failures.
- Engineer’s Advice: To be honest, when you swap an AL132, always check the fiber optic cables first… if the tips are cloudy, even a brand-new board won’t solve your communication errors. Clean them with an alcohol-based fiber pen.
Compatible Replacement Models
| Original Model | Replacement Model | Compatibility | Key Difference | Modification | Cost Impact |
| AL132 | AL132A | ✅ Direct Replace | Improved thermal design | Drop-in (Check EPROM) | Same |
| STO0982E01 | STO0982E02 | ⚠️ Software Compatible | Component updates | Verify firmware version | +10% |
| AL132 | GE Mark VIe (Modern) | ❌ Incompatible | Completely different system | Total control retrofit | +400% |
❗ Critical Note: The AL132 usually houses an application-specific EPROM. To ensure your drive operates with the correct parameters, you must transfer the EPROM chips from your faulty board to the replacement board.
Troubleshooting Quick Reference
| Symptom | Possible Cause | Part Relevance | Quick Check | Action |
| “Heartbeat” LED Off | Processor halted | ✅ High | Check 5V power on board test points | Replace AL132 module |
| Gate Drive Fault | Fiber optic failure | ✅ High | Inspect fiber ports for red light (active) | Clean/replace fiber cables |
| NVRAM Error | Battery/Memory failure | ⚠️ Medium | Check onboard battery voltage (<3V?) | Replace battery or memory chip |
| Communication Lost | Backplane bus error | ⚠️ Medium | Reseat the card in the rack | Check for bent pins on STO0982E01 |
| Intermittent Trips | Overheating ASIC | ✅ High | Check cabinet cooling/fans | Replace board and improve airflow |
Quality Assurance SOP
- Static Audit: We inspect the AL132A for any signs of “pitting” or component aging. We use a Fluke 115 for preliminary voltage checks.
- Power-On Test: The board is installed in an Alstom-compatible test sub-rack to verify the boot sequence and “Heartbeat” logic.
- Fiber Optic Loopback: We use a signal generator to test the optical TX/RX ports, ensuring the gate pulse timing is within 0.1 microseconds of the specification.
- Firmware Integrity: We verify the socket integrity for the EPROM chips to ensure no data corruption during the swap.
- Secure Packaging: The card is placed in a high-grade ESD shield bag and double-boxed for international air freight.
