Description
- Model: ESA-700 (EPSD-0375-1108)
- Brand: Alstom (Now General Electric / GE Power)
- Series: AlSPA P320 / Controgas Systems
- Core Function: Regulated DC power distribution and filtering for control cabinets
- Product Type: Power Supply Unit (PSU) / Distribution Module
- Key Specs: 110 V DC Input Support | Multi-rail Output | Rack-mounted
- Input Voltage Range: 110 V DC nominal (Standard for power plant battery banks)
- Output Voltages: Typically provides +5 V, +/-15 V, and +24 V DC rails for internal logic
- Current Rating: 3.75 A (indicated by the “0375” prefix in some configurations)
- Cooling: Passive convection with integrated heat sinks
- Mounting: Eurocard format (6U) for AlSPA subracks
- Protection: Over-voltage, short-circuit, and thermal shutdown protection
- Indicators: Front-panel LEDs for DC OK and Fault status
- Connector: DIN 41612 high-current type connector

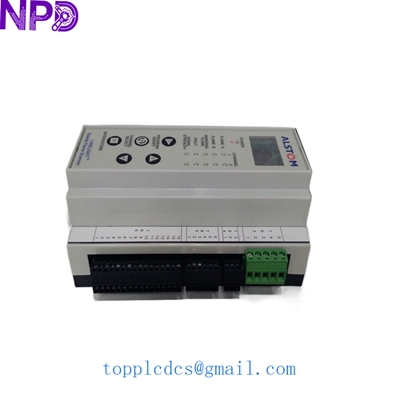

ALSTOM ESA-700 EPSD-0375-1108
Application Scenarios & Pain Points
The ESA-700 is a cornerstone of the AlSPA P320 control system, widely used in European-designed power plants and gas turbine controls. In my experience, these power modules are the most common single point of failure in older AlSPA cabinets. After 15 to 20 years of continuous operation, the internal electrolytic capacitors begin to dry out, leading to “dirty” power with high ripple voltage. This ripple causes the downstream processor cards to reboot randomly or report “I/O Bus Errors” that are incredibly difficult to track down. Because GE has largely phased out support for the older Alstom-branded AlSPA hardware, finding a functional EPSD-0375-1108 is often the only way to keep a turbine online without a massive control system overhaul.
Typical Application Scenarios:
- Gas Turbine Control: Providing stable logic power for Controgas and AlSPA P320 turbine regulators.
- Hydroelectric Plants: Distributing power to PLC racks in remote dam control stations.
- Nuclear Power Plant Auxiliaries: Powering non-safety-related monitoring systems where high reliability is required.
- Legacy Grid Automation: Supporting old RTU (Remote Terminal Unit) racks that utilize Alstom backplanes.
Case Study: The “Phantom Reboot”
Background: A combined-cycle power plant in Southern Europe was plagued by mysterious reboots on their steam turbine controller. There was no error log entry, just a total system restart every few days.
Problem: The site team replaced the CPU cards twice, but the issue persisted. We suggested they check the 5V rail on the ESA-700 module. Using an oscilloscope, we found the ripple was exceeding 200mV due to aging capacitors—well above the 50mV limit for stable logic.
Solution: We provided a New Surplus EPSD-0375-1108 from our newplcdcs stock. Every power module we sell undergoes a 24-hour full-load test to ensure output stability.
Result: The phantom reboots stopped immediately. The plant avoided the cost of a full controller upgrade, which was estimated at over $100,000 in hardware and labor.

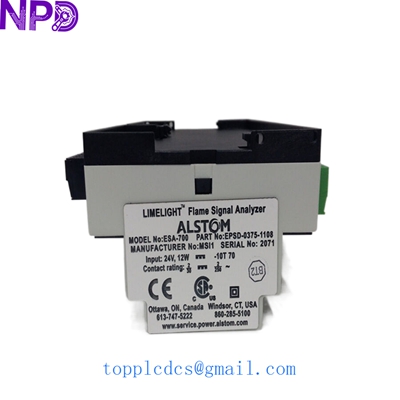

ALSTOM ESA-700 EPSD-0375-1108
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevant to this Module? | Quick Check | Action |
| All Front LEDs OFF | Input Power Loss | ⚠️ Medium | Measure 110V DC at the backplane | Check cabinet breakers/fuses |
| “Fault” LED ON | Output Short Circuit | ✅ High | Disconnect I/O cards; see if LED clears | Isolate faulty I/O card or replace ESA-700 |
| CPU Cards Rebooting | High Voltage Ripple | ✅ High | Use an oscilloscope on the 5V/24V rails | Replace ESA-700 Module |
| Output Voltage Low | Component Aging | ✅ High | Measure DC output at test points | Replace Module; do not adjust internal pots |
ALSTOM ESA-700 EPSD-0375-1108
Technical “Pro-Tips” (Avoiding Common Pitfalls)
If you’re working on an AlSPA P320 system, remember that the ESA-700 is the “source of truth” for the whole rack.
- Check the Input: These are often 110V DC input modules. Do not confuse them with 230V AC versions. Plugging AC into the EPSD-0375-1108 will cause an immediate and spectacular failure of the input bridge.
- Redundancy Rules: In many AlSPA racks, two ESA-700 modules are used for redundancy. If one fails, the other takes the full load. Often, the second one fails shortly after because it’s the same age and is now running at 100% capacity. Always replace both if you have the budget.
- Connector Wear: Because these modules carry high current, the pins on the backplane can sometimes show signs of “pitting” or arcing. Inspect the backplane connector before sliding the new module in.
❗ Warning: This module handles 110V DC. Even after power is disconnected, the internal capacitors can hold a charge for several minutes. Wait at least 5 minutes after power-down before removing the module to avoid a nasty surprise.
