Description

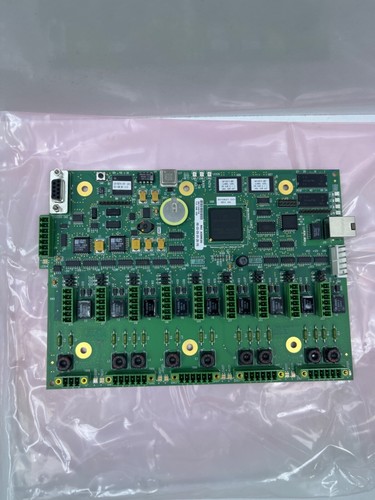

The Applied Automation 2015821-001 (Revision AK) is a sophisticated PCB assembly utilized in precision analytical and process control instrumentation. Often found in gas chromatography and environmental monitoring systems, this circuit board facilitates high-speed signal conditioning and data processing. The 2015822-001 base board architecture is designed for long-term stability in industrial environments, featuring high-grade components that minimize thermal drift and electronic noise.
- Revision Level: AK (Enhanced component reliability and signal integrity)
- Board Architecture: Multi-layer industrial PCB (2015822-001)
- Signal Support: Analog-to-Digital conversion and logic-level processing
- Voltage Requirements: Standard industrial DC rail supply
- Communication Interface: Proprietary bus connector for system integration
- Operating Temperature: 0°C to +55°C (Standard Industrial Grade)
Product Datasheet
| Feature | Specification |
|---|---|
| Model | Applied Automation 2015821-001 |
| Base PCB No. | 2015822-001 |
| Dimensions | 215 x 165 x 15 mm |
| Weight | 0.32 kg |
| Country of Origin | USA |
| Revision | AK |
| Component Density | High-density Surface Mount Technology (SMT) |
Application Fields
This circuit board assembly is primarily integrated into high-end analytical platforms, including:
- Gas Chromatography (GC): Managing detector signals and temperature control loops in process gas chromatographs.
- Petrochemical Analysis: Real-time monitoring of hydrocarbon streams in refinery control rooms.
- Environmental Monitoring: Processing data for continuous emissions monitoring systems (CEMS).
- Industrial Automation: Used as a specialized I/O or processing node in legacy Applied Automation control racks.
Product Instructions
- Safety Precautions: Always disconnect the main power to the analyzer or control rack before attempting to remove or install the board.
- ESD Handling: This board contains sensitive CMOS and microprocessor components. Use a grounded ESD mat and wrist strap during installation.
- Alignment: Slide the 2015821-001 into the designated card cage slot. Ensure the edge connectors are aligned perfectly with the backplane sockets.
- Seating: Press firmly on the board extractors or the edge of the board until it is fully seated. Lock any retaining clips to prevent vibration-induced loosening.
- Initialization: Upon powering up, monitor the system boot sequence. If the board is part of a networked system, verify its status through the host controller’s diagnostic menu.
Q&A – Common Questions
Q1: Can I use Revision AK to replace an earlier revision, such as Rev AG? A1: Generally, Rev AK is a functional upgrade and is backward compatible with earlier revisions of the 2015821-001 series. However, always check the system firmware requirements to ensure the new hardware is recognized.
Q2: What is the relationship between 2015821-001 and 2015822-001? A2: 2015822-001 is the part number for the raw/unpopulated circuit board (the PCB itself), while 2015821-001 is the part number for the fully assembled and tested board containing all electronic components.
Q3: Does this board require manual calibration? A3: While the board is factory-tested, it often works in tandem with precision sensors. Depending on the specific application (like gas analysis), a system-level calibration using certified reference gases may be necessary after installation.
