Description
Product Introduction
The ASEA DSAI 145 Analog Input Unit, part number 2668 184-264, is an industrial automation I/O module associated with the ABB Advant Master control system family. Originally developed under the ASEA name, this module is used to interface analog field signals with compatible control and monitoring systems.
The DSAI 145 receives analog signals from connected instrumentation and makes measurement data available to the control system for process monitoring, data acquisition, and control applications. It is intended for installation in compatible system hardware and must be matched to the appropriate rack, interface, and configuration.
This module is suitable for maintenance and replacement applications where the original equipment uses the same DSAI 145 model and hardware configuration. Verify the product identification, terminal arrangement, and system documentation before ordering or installation.

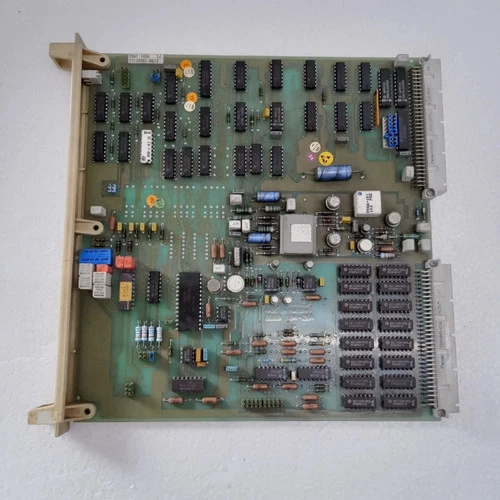

ASEA DSAI 145
Key Features
- Analog Signal Acquisition: Receives analog input signals from compatible field instrumentation.
- Industrial Process Monitoring: Supports measurement acquisition for control and monitoring applications.
- Advant Master Compatibility: Associated with compatible ABB Advant Master automation systems.
- Legacy System Support: Useful for maintenance of installed ASEA and ABB control equipment.
- Identifiable Part Number: Model DSAI 145 and number 2668 184-264 help confirm the required spare.
- Replacement Installation: Requires verification of the hardware version, interfaces, and system configuration.
Product Datasheet
| Parameter | Description |
|---|---|
| Brand | ASEA / ABB |
| Model | DSAI 145 |
| Part Number | 2668 184-264 |
| Related ABB Product ID | EXC57120001-HA, exchange-unit reference; verify exact equivalence |
| Series | Advant Master |
| Product Name | Analog Input Unit |
| Product Type | Industrial Automation I/O Module |
| Function | Analog signal acquisition |
| Application | Process control and monitoring |
| Place of Manufacture / Origin | Sweden, as associated with this product family |
| Product Status | Confirm the condition of the listed item with the seller |
| Dimensions | Not verified |
| Weight | Approximately 0.44 kg, based on ABB product information |
| Country of Origin | Sweden, subject to confirmation from the unit label |
| Power Requirements | Confirm from the applicable system manual |
| Discontinued | Legacy product; confirm current support and replacement availability |
Installation and Compatibility Notes
- Verify the model and part number: Confirm DSAI 145 and 2668 184-264 against the existing module.
- Check the system platform: Ensure the target rack and controller support this module.
- Review signal specifications: Confirm the supported input types, measurement ranges, channel assignments, and wiring requirements using the correct technical documentation.
- Inspect connectors and terminals: Compare the terminal arrangement and hardware revision before replacement.
- Follow electrical safety procedures: Isolate the equipment as required and use qualified automation personnel for installation.
- Test after replacement: Verify input readings, channel operation, diagnostics, and control-system communication before returning the system to service.
Frequently Asked Questions
Q1: What is the ASEA DSAI 145 used for?
The DSAI 145 is an analog input unit used to collect measurement signals from compatible field instrumentation and provide those signals to an industrial control system.
Q2: What is the part number?
The listed part number is 2668 184-264. Check the physical label to ensure that the item matches your required configuration.
Q3: Which control system is it associated with?
The DSAI 145 is associated with the ABB Advant Master family. Confirm compatibility with the specific controller, rack, and software configuration.
Q4: What input signal ranges does it support?
The exact signal ranges and channel specifications for part number 2668 184-264 have not been confirmed here. Consult the applicable DSAI 145 technical manual before connecting field instrumentation.
Q5: Can it replace another ABB analog input module?
Not automatically. Different modules may use different signal ranges, terminal assignments, interfaces, and configuration settings. Confirm the exact replacement requirements first.
Q6: What should I check before purchasing?
Verify the model number, part number, hardware revision, condition, connector layout, and compatibility with your existing automation system.
Recommended Related ASEA / ABB Models and Components
The following modules are related to ABB Advant Master and legacy industrial automation systems. They have different functions and are not guaranteed direct replacements for the DSAI 145.
- DSAI 130 — Analog input module for compatible control systems.
- DSAI 146 — Related analog I/O product family; verify the exact specification and application.
- DSAO 110 — Analog output module for compatible automation systems.
- DSAO 120 — Analog output unit used in supported control applications.
- DSAO 130 — Analog output module for compatible process-control systems.
- DSAX 452 — Analog I/O unit associated with legacy ABB automation equipment.
- DSDI 110A — Digital input board for compatible control systems.
- DSDO 115 — Digital output module for compatible automation applications.
- DSDO 120 — Digital output board for supported control systems.
- DSDI 120 — Digital signal interface component; verify the exact product function before ordering.
- DSBC 172 — Bus repeater module for compatible central-rack configurations.
- DSBC 173 — Bus repeater board for supported distributed system configurations.
- DSCS 130 — Remote I/O controller for compatible automation installations.
- DSCS 140 — Communication module associated with ABB MB 300 systems.
- DSCA 125A — Communication module for compatible legacy control equipment.
Confirm exact part numbers and system compatibility before selecting any related component as a replacement.
Purchasing Reminder
Before purchasing, compare the existing module’s label with the listed ASEA DSAI 145, part number 2668 184-264. Confirm the physical condition, hardware revision, test status, and compatibility with the installed Advant Master system. Because this is a legacy automation component, checking the approved replacement documentation is especially important before installation.
