Description
The ASYST Technologies (now part of Entegris) 3200-1214-03 is a specialized front-end control module used in semiconductor wafer handling systems. It is a critical component of the Standard Mechanical Interface (SMIF) technology, designed to maintain ultra-clean environments during the transfer of silicon wafers between processing equipment.
Product Parameters (Datasheet)
- Model Number: 3200-1214-03
- Part Type: Smart-Slot Front End Controller / Interface Board
- System Compatibility: ASYST SMIF-LPM (Load Port Module) and VersaPort systems
- Communication Interface: RS-232/RS-485 and proprietary ASYST bus protocols
- Input Voltage: 24V DC (Standard for cleanroom automation)
- On-board Intelligence: Integrated microprocessor for localized motor control and sensor logic
- Sensors Supported: Optical cassette mapping, pod presence detection, and latch position sensors
- Revision: -03 (Indicates specific hardware/firmware iteration for improved reliability)

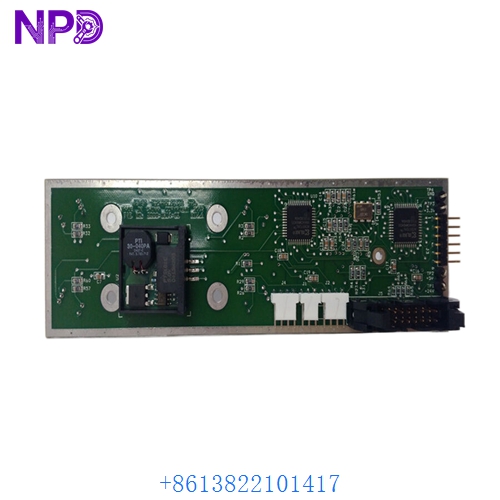

ASYST Technologies 3200-1214-03

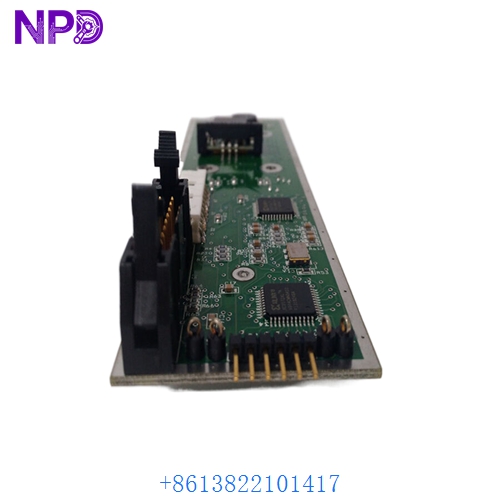

ASYST Technologies 3200-1214-03
ASYST Technologies 3200-1214-03
Country of Origin
This precision semiconductor automation component was manufactured in the United States by ASYST Technologies, ensuring compliance with the cleanroom standards required for sub-micron wafer fabrication.
Application Fields
The 3200-1214-03 is found exclusively in high-tech environments:
- Semiconductor Wafer Fabs: Controlling the load ports that interface FOUPs (Front Opening Unified Pods) or SMIF pods with lithography and etching tools.
- Cleanroom Automation: Managing the robotic “handshake” between automated material handling systems (AMHS) and process equipment.
- Metrology Labs: Ensuring vibration-free and contamination-free sample loading for wafer inspection.
Product Usage Instructions
- Installation: Slide the controller board into the designated slot of the Load Port Module (LPM) chassis. Ensure the edge connectors are free of debris before insertion.
- Cable Integration: Connect the multi-pin wiring harnesses for the door-drive motors and the pod-presence sensors. Ensure the shielding is grounded to the chassis to prevent EMI interference.
- Firmware Verification: Upon power-up, use the ASYST diagnostic terminal to verify the firmware version. The -03 hardware revision must be compatible with the system-level software version.
- Calibration: Perform a “Home” sequence to calibrate the vertical and horizontal limits of the port door mechanism.
- Status Monitoring: Monitor the onboard diagnostic LEDs. A flashing green “RUN” LED typically indicates active communication with the tool’s host computer.
Product Technical Description
The 3200-1214-03 acts as the localized “brain” for the SMIF load port. Technically, it handles the complex sequencing of opening a vacuum-sealed pod, mapping the wafer cassette to detect cross-slotted or doubled wafers, and presenting the wafers to the tool’s internal robot. The controller features high-precision motor drivers that ensure the door movement is smooth enough to avoid generating particles. The “Smart-Slot” designation refers to its ability to identify pod types and automatically adjust its handling parameters to match the specific carrier being loaded.
Q&A (Common Questions)
Q: Can this controller be used in a vacuum environment? A: No, the 3200-1214-03 is designed for atmospheric load ports. Vacuum-side controllers require different thermal management and outgassing specifications.
Q: What is the most common cause of failure for this board? A: Typically, failures are caused by power surges on the 24V rail or mechanical stress on the I/O connectors from improper cable routing.
Q: Is the 3200-1214-03 interchangeable with the 3200-1214-01? A: Generally, newer revisions are backward compatible, but the -03 version often contains updated motor control algorithms that may require a minor configuration change in the tool software.
Q: Does this board control the vacuum suction for the pod door? A: It provides the logic signal to the solenoid valves that control the vacuum, but the physical vacuum pump/venturi is an external component.
Similar Model Recommendations
- ASYST 3200-1214-01 (Earlier revision)
- ASYST 9700-6345-01 (Smart-Tag Reader Module)
- ASYST 3100-2415 (LPM Motor Controller)
- ASYST 2100-1510 (SMIF-Pod Latch Controller)
- Entegris VersaPort Controller (Modern successor)
