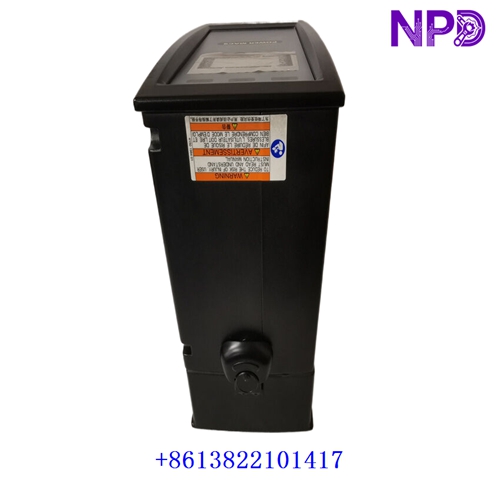

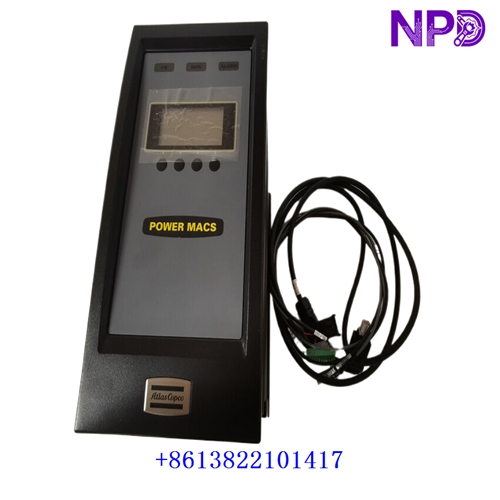

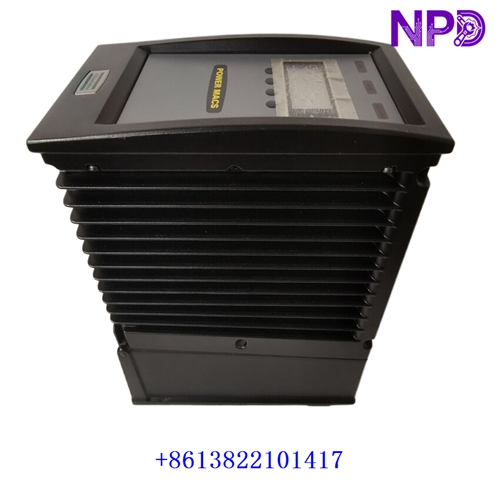

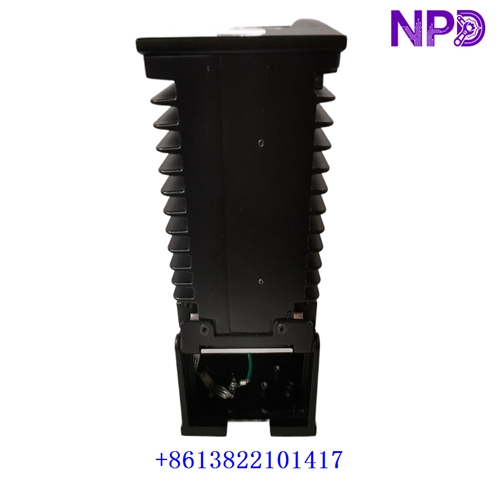

Atlas Copco | TC-4000-S | PowerMACS 4000 Secondary Controller

Description

Product Description

The Atlas Copco TC-4000-S is a secondary controller in the PowerMACS 4000 system, designed for industrial tightening and pressing applications. It supports coordinated production processes, process monitoring, and data exchange within compatible fixtured assembly systems. It is commonly used in automated manufacturing lines where controlled fastening, repeatability, and production quality are important.

The TC-4000-S version is specified without a fieldbus interface and without an integrated Ethernet switch. It operates as part of a compatible PowerMACS 4000 installation and should be matched with the appropriate primary controller, system backplate, power distribution hardware, and connected equipment. Confirm the full model designation and system configuration before replacement, especially when comparing it with the TC-4000-S-ES variant.

TC-4000-S

Product Parameters

• Brand: Atlas Copco
• Model: TC-4000-S
• Order Number: 8435 6500 00
• Series: PowerMACS 4000
• Product Name: Secondary Controller
• Product Type: Industrial tightening and pressing process controller
• Application: Automated assembly, tightening control, and production process monitoring
• Controller Role: Secondary controller in a compatible PowerMACS 4000 system
• Fieldbus: No fieldbus interface
• Ethernet Switch: Not integrated in this version
• Rated Supply Voltage: 380–480 V AC, three-phase
• Rated Frequency: 50–60 Hz
• Rated Power: 500 W
• Ingress Protection: IP43
• Operating Temperature: 5–50 °C
• Dimensions: Approximately 298 × 146 × 316 mm (L × W × H)
• Weight: Approximately 8 kg
• Mounting: Industrial controller installation; confirm cabinet and backplate requirements
• Place of Manufacture: To be confirmed from the unit label
• Country of Origin: Verify from the product label and shipping documentation
• Product Status: Legacy model; availability may depend on remaining stock and refurbished inventory
• Discontinued: Reported as discontinued by some suppliers; confirm current lifecycle status with Atlas Copco

Recommended Models

1. Atlas Copco TC-4000-S-ES — Secondary controller variant with an Ethernet switch.
2. Atlas Copco TC-4000-P-ES — Primary PowerMACS 4000 controller without a fieldbus option.
3. Atlas Copco TC-4000-P-PB-ES — Primary controller with PROFIBUS support.
4. Atlas Copco TC-4000-P-DN-ES — Primary controller with DeviceNet support.
5. Atlas Copco TC-4000-P-EIP-ES — Primary controller with EtherNet/IP support.
6. Atlas Copco TC-4000-P-MTCP-ES — Primary controller with Modbus TCP support.
7. Atlas Copco TC-4000-P-PN-ES — Primary controller with PROFINET support.
8. Atlas Copco TC-4000-P-CC-ES — Primary controller with CC-Link support.
9. Atlas Copco 4222 0982 90 — Backplate with a six-port Ethernet switch.
10. Atlas Copco 4222 0982 91 — Backplate without an Ethernet switch.
11. Atlas Copco 4222 0984 90 — Six-port Ethernet switch for compatible PowerMACS configurations.
12. Atlas Copco 8435 5660 00 — Main switch box for power distribution in compatible systems.
13. Atlas Copco 8435 6560 50 — Distribution box with power cable for compatible configurations.
14. Atlas Copco PowerMACS 4000 — System platform for controlled tightening and pressing.
15. Atlas Copco ToolsNet — Production data and process-monitoring software for supported systems.

Verify the complete controller configuration, order number, supply voltage, and backplate arrangement before selecting a replacement.
