Description

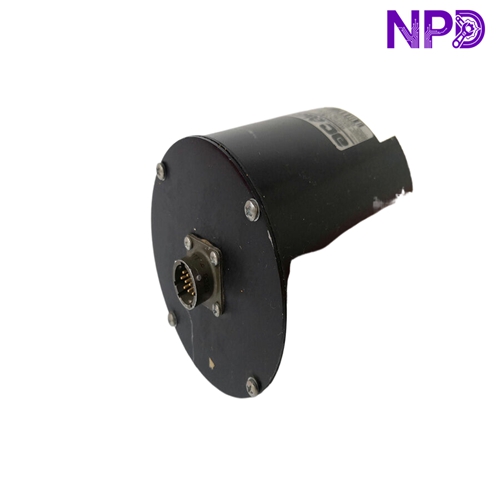

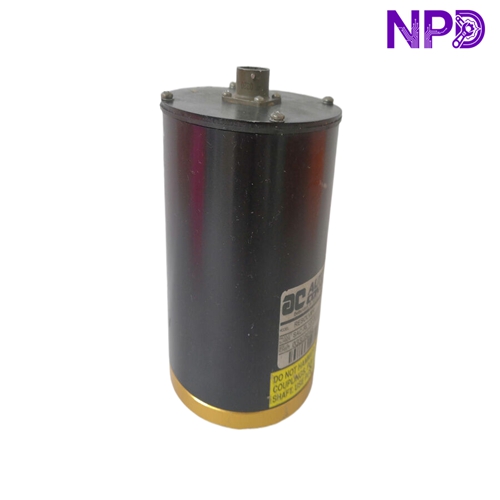

The Autotech SAC-RL100-M11T is a specialized Resolver-to-Digital (R/D) Converter module designed for precise industrial motion control and position feedback applications. It acts as an interface between a rotary resolver (used for sensing mechanical position or angle) and a programmable logic controller (PLC) or other control systems. This module is widely utilized in high-precision manufacturing, packaging machinery, and assembly lines where reliable, absolute position feedback is critical for machine safety and timing accuracy.
Technical Specifications ⚙️
| Feature | Specification |
|---|---|
| Product Type | Resolver-to-Digital Converter Module |
| Series | SAC (Smart Automation Controls) |
| Model | RL100-M11T |
| Input Signal | Standard rotary resolver signals |
| Output Type | Digital interface (Parallel or Serial selectable) |
| Resolution | High-precision bit conversion |
| Accuracy | Industrial-grade angular tracking accuracy |
| Operating Voltage | 24 VDC (Typical industrial standard) |
| Galvanic Isolation | Integrated signal-to-logic isolation |
| Mounting | DIN-rail or Panel Mount compatible |
Recommended Autotech / Motion Control Components 📦
These components are frequently used in automation setups requiring resolver feedback and timing control:
- SAC-RL100-M12T (Alternative configuration R/D module)
- RLC-100 (Programmable Limit Switch Controller)
- RLC-200 (Multi-axis Resolver interface)
- SL-100-2 (Single-turn heavy-duty resolver)
- SAC-RL500 (Advanced motion control interface)
- Series 5000 (Programmable Limit Switch System)
- SAC-3000 (High-speed motion control platform)
- B-100-1 (Brushless resolver unit)
- RLC-300 (Diagnostic-capable controller module)
- SAC-I/O-16 (I/O expansion module for SAC systems)
