Description
- The BACHMANN MPC270-128512M is a powerful M1 system controller designed for high-speed industrial automation and wind power applications. Featuring a robust Pentium-class processor and integrated communication interfaces, it handles complex control tasks with deterministic real-time performance and high data throughput.
Product Parameters
- Processor: Intel Pentium 266 MHz
- Main Memory: 128 MB SDRAM
- Retentive Memory: 512 KB NVRAM
- Interfaces: 2x Ethernet (10/100 Mbps), 1x RS-232, 1x RS-422/485
- Supply Voltage: 18 to 34 VDC
- Power Consumption: 12 Watts (Typical)
Product Specifications
- Origin: Austria
- Discontinued Status: Active / Supported
- Weight: 0.62 kg
- Dimensions: 135 x 45 x 115 mm
- Datasheet: Available upon request

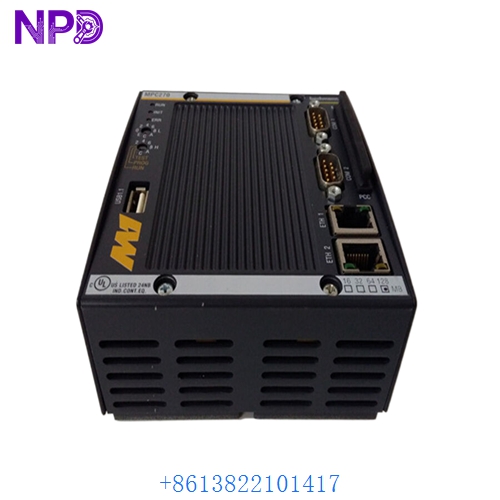

BACHMANN MPC270-128512M

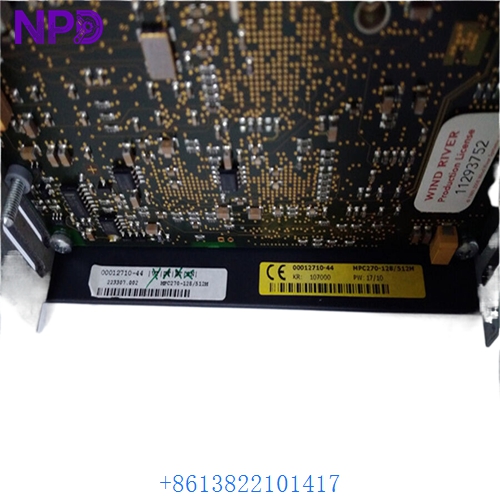

BACHMANN MPC270-128512M
BACHMANN MPC270-128512M
Application Fields
- Wind Energy: Main controller for pitch, yaw, and turbine logic.
- Renewable Power: Grid synchronization and inverter control systems.
- Marine Engineering: Propulsion control and vessel management systems.
- Industrial Machines: High-speed motion control for CNC and specialized tools.
Product Q&A
Q: What is the significance of the “128512M” in the model name? A: It specifies the memory configuration, indicating 128 MB of SDRAM and 512 KB of non-volatile RAM for data persistence.
Q: Does the MPC270 support real-time Ethernet protocols? A: Yes, it is fully compatible with bluecom and other real-time communication protocols used in the Bachmann M1 architecture.
Q: Is the processor fan-cooled or fanless? A: It features a fanless design with high-efficiency heat dissipation, making it suitable for environments with high vibration or dust.
