Description
1. Product Description
⚙️ The Basler Electric DECS-200-2L is a microprocessor-based digital excitation control system designed to regulate synchronous generator excitation. It supports automatic voltage regulation (AVR), field current regulation (FCR), reactive power (VAR), and power factor (PF) control modes.
🔧 The unit features a pulse-width-modulated (PWM) power stage, generator voltage and current sensing, excitation limiting, soft-start buildup, and monitoring functions. It supports excitation outputs of 32 V DC, 63 V DC, or 125 V DC, with continuous field current up to 15 A, depending on the application configuration.

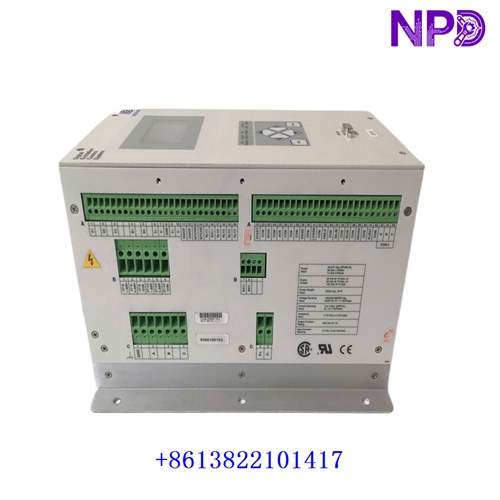

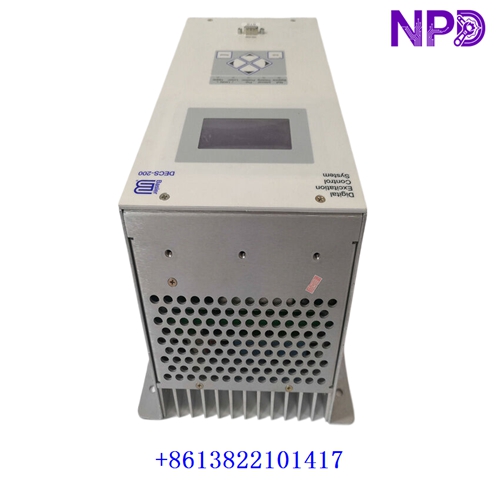

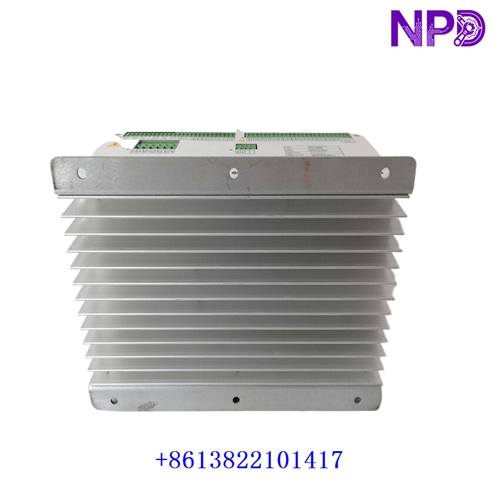

BASLER ELECTRIC DECS-200-2L
2. Product Parameters and Datasheet
📋 Brand: Basler Electric
Model: DECS-200-2L
Series: DECS-200 Digital Excitation Control System
Product Name: Digital Generator Excitation Controller
Control Technology: Microprocessor-based PWM
Control Modes: AVR, FCR, VAR, PF
Rated Field Voltage Classes: 32 V DC / 63 V DC / 125 V DC
Continuous Field Current: Up to 15 A DC
Voltage Regulation Accuracy: ±0.25% under specified operating conditions
Voltage Sensing: Single-phase or three-phase true RMS
Current Sensing: 1 A or 5 A nominal, depending on configuration
Communication: RS-232 and RS-485; Modbus support on RS-485
Control Power: Style-dependent; verify the complete model and nameplate
Installation: Panel-mounted industrial control equipment
Place of Manufacture: Basler Electric manufacturing facility; verify unit label
Product Status: Confirm actual stock condition
Dimensions: Refer to the DECS-200 instruction manual
Weight: Confirm the exact unit and packaging
Country of Origin: Verify from the product nameplate
Discontinued: Yes; Basler lists the DECS-200 as discontinued
3. Recommended Related Models
🔩 1. Basler DECS-250 — Digital excitation control system.
2. Basler DECS-250N — Digital excitation control system variant.
3. Basler DECS-100 — Digital excitation controller.
4. Basler DECS-150 — Digital excitation control system.
5. Basler DECS-400 — Digital excitation control system.
6. Basler AVC63-7 — Automatic voltage regulator.
7. Basler AVC125-10 — Automatic voltage regulator.
8. Basler BE1-11g — Generator protection relay.
9. Basler BE1-25 — Synchronism-check relay.
10. Basler BE1-32R — Reverse power relay.
11. Basler BE1-59 — Overvoltage relay.
12. Basler BE1-27 — Undervoltage relay.
13. Basler BE1-81 — Frequency relay.
14. Basler ES-240 — Excitation system accessory; verify exact application.
15. Basler ICRM-15 — Inrush current reduction module for applicable DECS-200 installations.
⚠️ The DECS-200-2L is discontinued. Confirm the full style number, control-power rating, excitation output requirements, wiring, and configuration before selecting a replacement. The DECS-250 is a potential successor, but replacement suitability must be assessed for the specific generator and excitation system.
