Description
Product Specifications
- Brand: Beijer Electronics (for Alfa Laval)
- Model: X2 Marine 7-B2
- Part Number: 630003005
- Revision: Rev No. 4
- Display Size: 7-inch Wide TFT-LCD (800 x 480 pixels)
- Backlight: LED with 0 to 100% dimming
- Processor: ARM9 400 MHz / i.MX6SoloX Single Core
- Interface: Ethernet, Serial (RS232/RS422/RS485), USB, CAN
- Certifications: Marine Grade (DNV, GL, ABS, LR, KR)
- Ingress Protection: IP65 (Front) / IP20 (Rear)

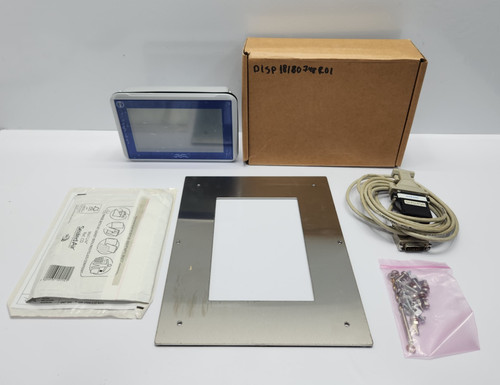

The Beijer Electronics X2 Marine 7-B2, specifically the 630003005 Rev No. 4 variant, is a ruggedized human-machine interface designed for the specialized control systems used in Alfa Laval marine equipment. Engineered for reliability in harsh maritime environments, this HMI features a sunlight-readable display and advanced dimming capabilities suitable for bridge and engine room installations. It serves as the primary monitoring hub for critical vessel operations, providing high-speed graphics and robust communication across multiple industrial protocols to ensure seamless system integration and user-friendly process management.
Key Differences from Similar Models
The X2 Marine 7-B2 (630003005) is distinguished from the standard X2 Marine 7 by its specific Alfa Laval proprietary firmware and Rev No. 4 hardware optimizations, which include enhanced memory stability and specialized driver sets for Alfa Laval separator and heat exchanger controllers. Unlike the X2 Marine 7-SC (SoftControl) version, the B2 model focuses on high-performance visualization rather than integrated PLC logic. Furthermore, Rev No. 4 features an upgraded internal power circuit compared to earlier revisions (Rev 1–3), offering superior resistance to the electrical noise and voltage dips commonly encountered in large-scale marine power grids.
Operational Tips
- Firmware Synchronization: When replacing a failed unit, ensure the Alfa Laval software project version matches the Rev No. 4 hardware capabilities; older software backups may require a minor update to utilize the improved display drivers of this revision.
- Screen Dimming: Utilize the physical dimming controls or the software-based dimming function during night operations to prevent screen burn-in and ensure the display remains comfortable for bridge personnel.
- USB Port Maintenance: The rear USB ports are sensitive to salt-air corrosion; keep the protective caps tightly sealed when not in use for data logging or project updates to prevent port failure.
- Mounting Tension: During installation, ensure the mounting clamps are tightened evenly to 0.7 Nm. Over-tightening can warp the front bezel, compromising the IP65 seal and potentially leading to moisture ingress during cabin cleaning.
