Description
The BENTLY 135137-01 is a Position I/O Module with internal terminations for the Bently Nevada 3500/45 monitoring system, designed for precise machinery position measurements using proximity transducers, RPTs, DC LVDTs, AC LVDTs, and rotary potentiometers. It supports critical functions like thrust position, differential expansion, and valve monitoring in rotating equipment.
Product Parameters
This module offers 4 input channels with internal terminations, input impedance of 10 kΩ for Proximitor/RPT and 1 MΩ for DC LVDT inputs. It features 0.3662 µA/bit resolution (±0.25% accuracy at room temp, ±0.7% over range), update rate ≤100 ms, and dimensions of 241 x 24.4 x 99.1 mm with 0.44 kg weight. Power consumption is under 8.5 W typical, operating from rack supply.

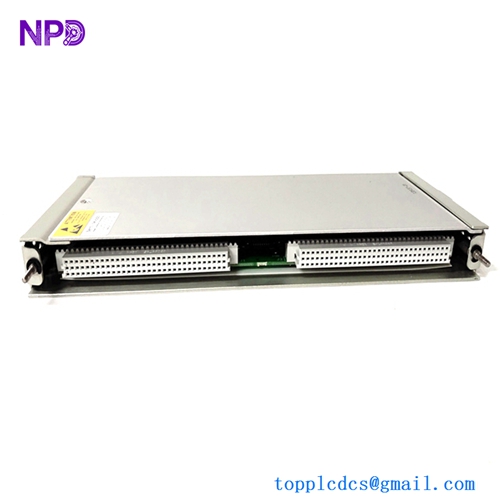

BENTLY 135137-01
Datasheet Overview
The datasheet covers support for axial position, gap voltage, single/dual ramp differential expansion, complementary differential expansion, case expansion, and valve position. It includes signal conditioning with direct/gap filters (-3 dB at 1.2/0.41 Hz), programmable alarms, and compatibility with 3500 rack for 4-channel monitoring.
Country of Origin
Manufactured in the United States by Bently Nevada for vibration monitoring standards.
Usage Instructions
Slide into rear slot of 3500 rack, connect transducers directly to internal terminals per channel pinout. Configure via 3500 Rack Configuration Software for measurement type, alarms, and constants; power rack, verify OK LED, and test inputs for position data integration into System 1 or DCS.
Common Q&A
- Q: Supported transducers?
A: Proximitors, RPTs, DC/AC LVDTs, rotary potentiometers.
- Q: Termination type?
A: Internal for simplified wiring, Euro-style connectors.
- Q: Channel programming?
A: Pairs for functions like thrust or expansion.
Similar Models
- 135145-01 (external terminations).
- 125808-07 (rotary potentiometer I/O).
- 139554-01 (AC LVDT internal).
- 128015-06 (terminal strip external).
- 141216-01 (AC LVDT terminal).
