Description

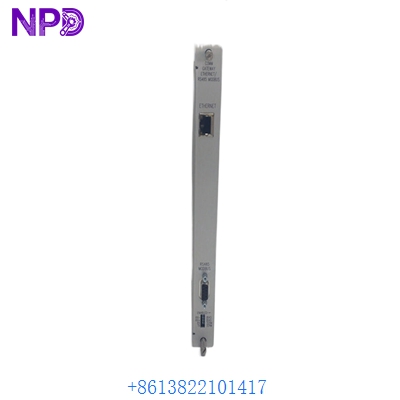

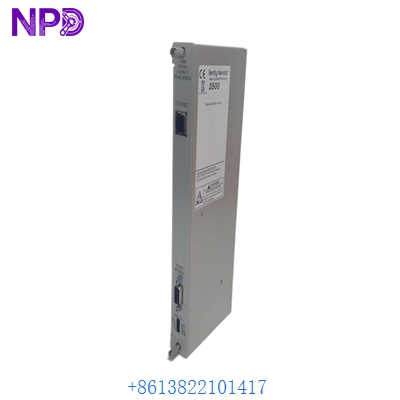

The BENTLY 136188-02 is a high-performance communication and display interface module designed for the 3500 Series Machinery Protection System. It enables seamless data transmission between the monitoring rack and external display units or plant-wide Ethernet networks, ensuring critical machinery health data is accessible in real-time.
Product Parameters
- Model: 136188-02
- System Series: Bently Nevada 3500
- Communication Type: Ethernet (TCP/IP)
- Power Consumption: 5.0 Watts typical
- Input Voltage: +5V DC (supplied via rack backplane)
Product Specifications
- Module Type: I/O Module (Internal/External Display Interface)
- Data Rate: 10/100 Mbps auto-negotiation
- Connectors: RJ45 Ethernet port / 9-pin D-sub for display
- Operating Temperature: -30°C to +65°C
- Slot Requirement: Occupies one dedicated slot in the 3500 rack
Application Fields
- Turbo-machinery vibration monitoring
- Power plant turbine protection systems
- Oil and gas refinery equipment health tracking
- Condition-based maintenance for heavy industrial motors
- Remote diagnostic data streaming
Q&A
Q: What is the primary difference between the -01 and -02 versions? A: The -02 version typically includes updated hardware revisions for improved Ethernet connectivity and compatibility with newer display firmware.
Q: Can this module be installed in any slot? A: No, it must be installed in a specific slot designated for interface modules, usually adjacent to the Rack Interface Module (RIM).
Q: Is this module hot-swappable? A: Yes, the 3500 system architecture allows for the removal and insertion of this module without powering down the entire protection rack.
Secure your machinery with the BENTLY 136188-02 interface for reliable data monitoring.
