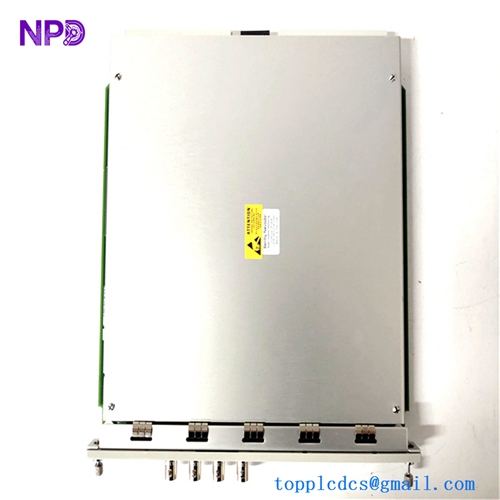

BENTLY 3500/40M
Machinery Protection System Monitor Module
Product Introduction
The BENTLY 3500/40M vibration monitor module is a core component of the Bently Nevada 3500 Series Machinery Protection System designed for continuous monitoring and protection of rotating equipment. Terms such as BENTLY 3500/40M vibration monitor and 3500 Series protection module are embedded with internal references to your designated industrial resource to assist with accurate part identification without displaying raw URLs.
The 3500/40M module provides high-resolution, real-time vibration measurement and protection functionality for industrial assets such as turbines, compressors, generators, and pumps. It is engineered for reliability in harsh environments and integrates seamlessly with the 3500 rack and system architecture to support advanced machinery protection schemes.
BENTLY 3500/40M
Product Parameters
⚙️ Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Machinery Protection Monitor Module |
| Model | 3500/40M |
| Series | Bently Nevada 3500 |
| Channel Count | 4 channels of vibration/velocity input |
| Signal Types | AC/DC vibration, velocity sensors |
| Input Range | Configurable per sensor type |
| Sampling | High-speed sampling for accurate waveform capture |
| Outputs | Relay outputs for alarms/trips |
| Communication | Backplane interface to 3500 rack |
| Mounting | 3500 system rack/chassis |
| Operating Mode | Continuous 24/7 industrial service |
Product Datasheet (Technical Overview)
📄 Datasheet Summary
| Feature | Description |
|---|---|
| Monitoring Channels | Four independent vibration monitoring channels |
| Protection Elements | Alert and shutdown thresholds per channel |
| Sensor Compatibility | Applicable to proximity probes, accelerometers, velocity meters |
| Data Processing | Real-time vibration analysis and logic processing |
| Event Logging | Capture of waveform and alarm data |
| Diagnostics | Self-monitoring and system health status |
| Environmental | Designed for industrial temperature and shock |
| Power | Rack-provided DC power supply |
Country of Origin
🌍 Origin:
The BENTLY 3500/40M monitor module is manufactured under Bently Nevada’s industrial quality standards. Production is typically carried out at Bently Nevada / GE Industrial automation facilities, ensuring consistent build quality, reliability, and compliance with machinery protection requirements.
Usage Instructions
🔧 Operating and Installation Guidelines
- Rack Preparation: Install the 3500/40M module in an available slot of the Bently Nevada 3500 rack assembly, ensuring correct alignment with the backplane connector.
- Sensor Connections: Terminate vibration, velocity, or proximity sensor cabling to the corresponding channel terminations. Confirm sensor type and wiring scheme for each channel.
- Power and Grounding: Ensure the rack’s power supply and grounding meet system specifications before energizing the module.
- Configuration: Set channel parameters, alarm, and shutdown thresholds using system configuration tools or workstation software compatible with the 3500 Series.
- Verification: After power-up, verify that each channel is receiving valid sensor signals and that alarm/trip functions respond correctly under test conditions.
- Commissioning: Confirm capture of trend data and event logs during initial operational cycles to validate protection performance.
- Maintenance: Periodically inspect connections, sensor health, and configuration settings as part of preventive maintenance.
Frequently Asked Questions (Q&A)
Q1: What types of sensors can be used with the 3500/40M?
A1: It supports proximity probes, accelerometers, and velocity sensors configured to each channel’s input specifications.
Q2: Can the 3500/40M trigger shutdowns?
A2: Yes, it provides configurable alarm and trip relay outputs for machine protection.
Q3: Is data logging supported?
A3: Yes, the module captures event and waveform data for analysis.
Q4: Can parameters be adjusted after installation?
A4: Yes, protection and monitoring parameters can be configured with compatible system tools.
Q5: Is the 3500/40M suitable for 24/7 industrial use?
A5: Yes, it is designed for continuous operation in industrial environments.
