Description

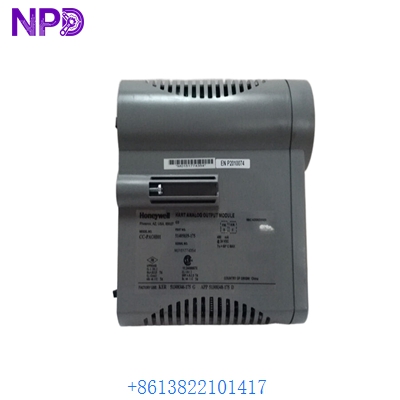

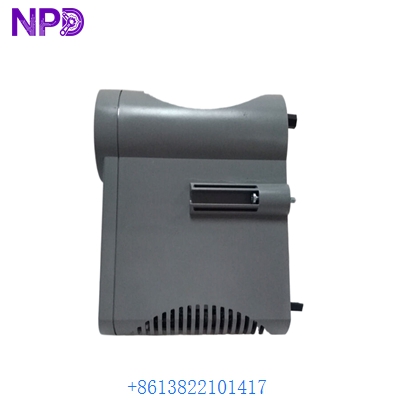

The CC-PAOH01 is a high-density Analog Output (AO) module designed for the Honeywell Experion PKS Series C I/O system (often cross-referenced in industrial catalogs with Bently/Honeywell integrated systems). It provides 16 channels of precision current output to drive final control elements such as valve positioners, actuators, and variable speed drives.
Product Parameters
- Model: CC-PAOH01
- Part Number: 51410070-175
- Output Channels: 16 Channels
- Output Signal: 4-20 mA DC
- Resolution: 12-bit Digital-to-Analog conversion
- Load Resistance: 0 to 750 Ohms
Product Specifications
- Module Type: High Level Analog Output (HLAO)
- HART Communication: Supports HART protocol pass-through
- Mounting: Attaches to Series C I/O Termination Assembly (IOTA)
- Power Requirements: 24V DC supplied through the IOTA
- Redundancy: Supports 1:1 module redundancy
- Weight: 0.48 kg
Application Fields
- Control valve positioning in oil and gas refineries
- Damper control in power plant boiler systems
- Speed setpoint transmission for industrial turbines
- Chemical dosing pump stroke adjustment
- Remote setpoint distribution in water treatment plants
Q&A
Q: Does this module support HART field devices? A: Yes, it is fully HART-compatible, allowing for remote calibration and diagnostic data retrieval from smart positioners.
Q: Can I use this module without a redundant partner? A: Yes, it can operate in a non-redundant (simplex) configuration on a standard Series C IOTA.
Q: What happens to the output if communication with the controller is lost? A: The module features configurable “failsafe” states, allowing outputs to hold their last value or go to a pre-defined safe level (e.g., 4mA).
Ensure precise control of your field actuators with the BENTLY CC-PAOH01 analog output solution.
