Description
- Model: 106M1081-01
- Brand: Bently Nevada (Baker Hughes)
- Series: 3500/15 Power Supply System
- Core Function: Interfaces external AC power to the 3500/15 power supply module.
- Product Type: Universal AC Power Input Module (PIM)
- Key Specs: 85–264 Vac | 47–63 Hz | Half-height design
- Input Voltage (Universal): 85 to 264 Vac rms (85 to 250 Vac for hazardous areas)
- Input Frequency: 47 to 63 Hz
- Maximum Current: 2.8 Amps
- Module Type: Half-height (installed in the rear of the 3500 rack)
- Compatibility: Specifically for the Universal AC Power Supply (106M1079-01)
- Isolation: 2200 Vdc between input terminals and chassis
- Fault Detection: Integrated circuitry for power loss and supply health monitoring
- Physical Size: Approx. 120.7 mm x 25.4 mm x 114.3 mm
- Weight: Approx. 0.34 kg (0.75 lb)
- Operating Temperature: -30 °C to +65 °C (-22 °F to +150 °F)
Application Scenarios & Pain Points
The 106M1081-01 is a fundamental component of the 3500/15 power supply system, which energizes the entire Bently Nevada 3500 machinery protection rack. Unlike standard I/O modules, the PIM resides in the rear of the rack and acts as the physical connection point for line power. If the PIM fails or its internal filtering degrades, the entire rack—monitoring multi-million dollar turbines or compressors—can lose power, leading to a “blind” machinery state or an uncommanded emergency trip.
Typical Application Scenarios:
- Power Generation (TMR Racks) Providing redundant AC input for Triple Modular Redundant (TMR) systems monitoring steam turbine vibration and eccentricity.
- Oil & Gas Compression Trains Delivering stable power to vibration monitors on critical centrifugal compressors in LNG or refinery environments.
- Petrochemical Processing Monitoring high-speed expanders and pumps where the “Universal” voltage range accommodates varying site power standards.
Engineering Case Study: The “Universal” Upgrade
Background: A chemical plant in the Middle East was upgrading their legacy 3500 racks that used old Low Voltage DC supplies. They wanted to migrate to a more stable AC utility feed to reduce reliance on aging battery banks.
The Problem: The legacy PIMs (like the 129478-01) are not compatible with the modern Universal AC supplies. The maintenance team needed to transition to the “Universal” series without replacing the entire 3500 rack backplane.
The Solution: We supplied a matching set of 106M1081-01 PIMs and 106M1079-01 supplies. Since these are “Universal,” they could handle the site’s fluctuates in AC voltage without the need for additional step-down transformers.
Result: The transition was completed during a scheduled 4-hour window. By moving to the 106M1081-01, the plant gained the ability to “Hot-Swap” power components in the future without disrupting machinery protection.

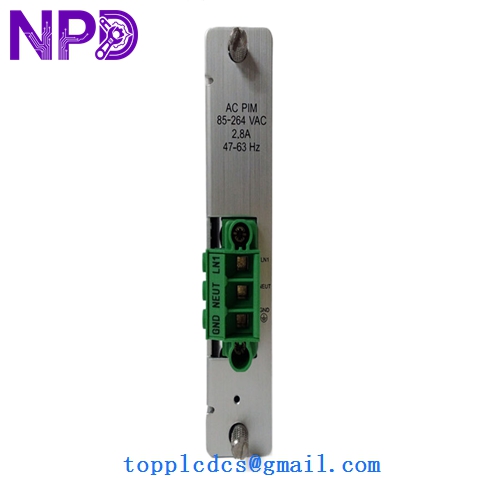

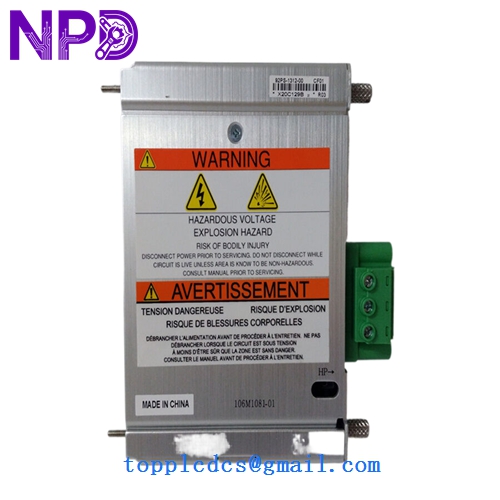

BENTLY 106M1081-01
Compatible Replacement Models
| Original Model | Replacement Model | Compatibility | Key Differences | Change Impact |
|---|---|---|---|---|
| 106M1081-01 | 129478-01 | ❌ Incompatible | Legacy High Voltage AC | Must use 106M-series supply |
| 106M1081-01 | 106M1081-02 | ✅ Direct | Minor revision / Labeling | No change required |
| 106M1081-01 | 106M2686-01 | ✅ Direct | Spare part sub-assembly | Exact same performance |

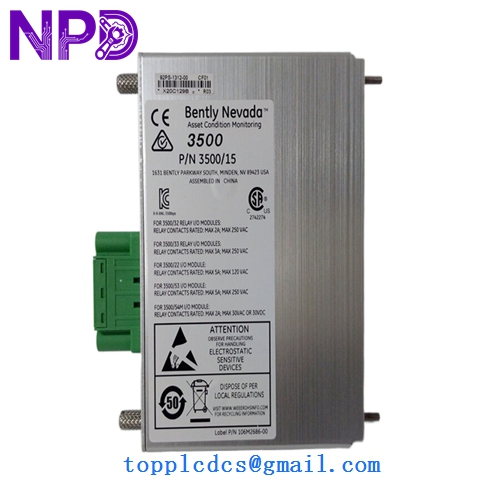

BENTLY 106M1081-01
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relation to 106M1081-01 | Quick Check | Action |
|---|---|---|---|---|
| Rack Power LED Off | Blown PIM Fuse | ✅ High | Check internal fuse on the PIM board. | Replace fuse or PIM module. |
| Supply “Not Ready” | Voltage out of range | ⚠️ Medium | Measure L-N voltage at the PIM terminals. | Verify AC is between 85-264V. |
| Intermittent Rack Reset | Loose AC terminal | ✅ High | Check screw torque on the PIM connector. | Tighten to spec (avoid arcing). |
| Bus Error (Red LED) | PIM-to-Supply link | ⚠️ Medium | Inspect the backplane pins for the PIM. | Clean pins or re-seat module. |
Engineer’s Pro-Tip: “When you’re dealing with the 106M1081-01, remember that it lives in the back of the rack. I’ve seen many techs pull the front power supply (106M1079-01) thinking it’s the culprit, only to find the actual failure was a burnt terminal on the PIM in the rear. These ‘Universal’ modules are robust, but they hate high-moisture environments—if you’re in a coastal plant, check the terminal block for green oxidation. One more thing: if you have a dual-redundant setup, make sure BOTH PIMs are powered from different phases or UPS sources to truly leverage the redundancy.”
If you need the 3500/15 ordering matrix to confirm your AA-BB-CC options, I have the Bently Nevada datasheet ready for reference—just say the word.
