Description
- Model: BENTLY 106M1081-01
- Brand: Bently Nevada (Baker Hughes)
- Series: 3500 Monitoring System
- Core Function: High-speed digital communication and data interface module
- Type: I/O Communication / Gateway Module
- Key Specs: 24 V DC input, supports specialized Bently protocols, high-vibration environment rated
- Input Voltage: 24 V DC (nominal)
- Power Consumption: < 5.0 Watts typical
- Operating Temperature: -30°C to +65°C (-22°F to +149°F)
- Humidity: 95% non-condensing
- Mounting: Internal 3500 Rack Slot (Specific positions apply)
- Communication Rate: High-speed proprietary backplane interface
- Circuitry Protection: Built-in surge and ESD (Electrostatic Discharge) protection
- Indicators: Front-panel LED status (OK, TX/RX, Bypass)
- Certification: CE, ATEX/IECEx (Hazardous Area Rated)
- Weight: Approx. 0.6 kg (1.3 lbs)

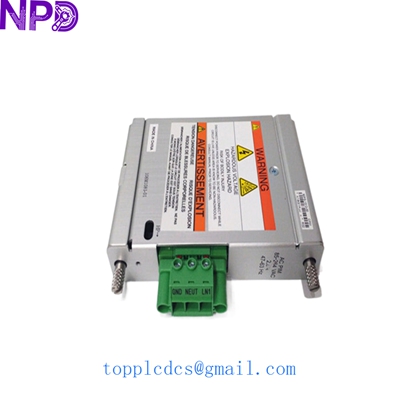

BENTLY 106M1081-01

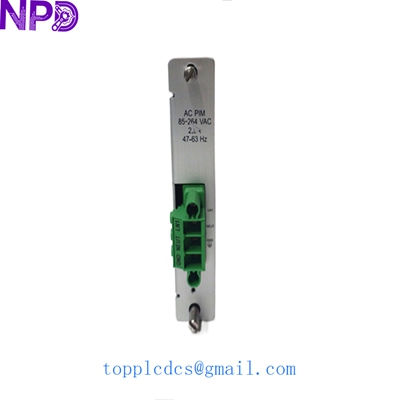

BENTLY 106M1081-01

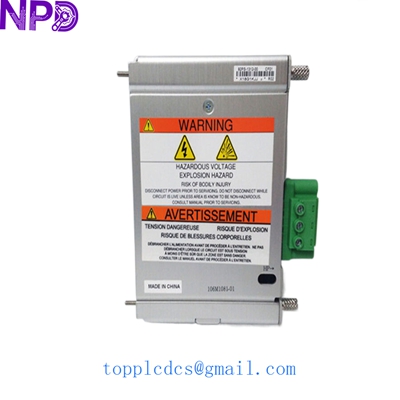

BENTLY 106M1081-01
Installation & Configuration Guide
Phase 1: Pre-Installation (15 minutes)
⚠️ Safety Protocol:
- Coordinate with the operations team to bypass the specific monitoring trip logic if the rack is “Live.”
- Verify the 3500 rack power supply status; while some modules support hot-swap, we strictly recommend a controlled insertion to avoid backplane arcing.
- Use a grounded anti-static wrist strap. These BENTLY 106M1081-01 cards are highly sensitive to CMOS damage.
Tools & Data:
- 3500 Rack Configuration Software (Laptop with RS232 or Ethernet cable).
- Small flat-head screwdriver for terminal blocks.
- Current configuration file (.3500 file) backed up to an external drive.
Phase 2: Removal & Insertion (10 minutes)
Steps:
- Identify Position: Ensure you are pulling the correct module. Label the external cables (I/O, Serial, or Ethernet) before disconnecting.
- Ejecting: Loosen the two thumb screws at the top and bottom of the module. Use the ejector tabs to move the card outward about 1 inch.
- Inspect Backplane: Before sliding in the new 106M1081-01, check the rack pins for any dust or bent connectors. Clean with compressed air if necessary.
- Insertion: Align the card with the plastic guides. Push firmly until the module is flush with the rack. Tighten the thumb screws by hand—do not over-torque.
Phase 3: Configuration & Testing (20 minutes)
The “Moment of Truth”:
- LED Check: On power-up, the ‘OK’ LED should blink green during self-test, then turn solid. If it stays red, pull the card and check for pin misalignment.
- Software Sync: Open the 3500 Rack Configuration software. Perform a “Compare” between the rack and your saved file.
- Firmware Check: In my experience, if you get a “Hardware Mismatch” error, it’s usually because the new module’s firmware version is newer than the existing rack project. You may need to update the project file to match the module’s revision.
- Verify Communication: Check the TX/RX lights to ensure data is flowing to the DCS or SCADA system.
Customer Cases & Industry Applications
Case 1: Power Plant Emergency Replacement
Situation: A combined-cycle power plant in Southeast Asia experienced a communication failure between their Bently 3500 rack and the Mark VIe control system. Task: The 106M1081-01 module had failed due to a localized power surge, leaving the turbine vibration data “blind” to the operators. Action: The customer reached out to us on a Tuesday. We provided a New Surplus unit, performed a 24-hour load test on our internal 3500 test rack, and shipped it via DHL Express. Result: The module arrived Thursday. The site engineer swapped it in 30 minutes. The plant avoided a mandatory precautionary shutdown which would have cost roughly $150,000 in lost generation revenue per day.
Case 2: Strategic Reserve for Aging Assets
Situation: A major refinery in the Middle East was planning to run their 3500-based vibration monitoring systems for another 7 years before a total plant upgrade. Task: Many of their communication cards were nearing 15 years of age—the “danger zone” for capacitor drying. Action: We helped them perform an ABC analysis of their inventory. We identified the 106M1081-01 as a “Critical Slow-Mover.” Result: They purchased 2 units of New Surplus stock to keep as “Buffer Stock.” Six months later, a lightning strike damaged a module in their pump house. They had the spare on the shelf, reducing the “Mean Time To Repair” (MTTR) from weeks to under an hour.
Frequently Asked Questions (FAQ)
Q: Is this module “Hot-Swappable”? A: Technically, the 3500 rack supports it, but I’ve seen enough “surprises” to suggest caution. If you must swap it while the rack is powered, ensure the “Bypass” switch is active on the associated monitor modules to prevent a false trip.
Q: Why choose “New Surplus” over a used/refurbished unit? A: Honestly? Reliability. A refurbished 106M1081-01 has already seen years of thermal stress. In vibration monitoring, accuracy is everything. A “New Surplus” unit has zero hours of operation, meaning the electrolytic capacitors and solder joints are in prime condition. It’s the difference between a used car with 100k miles and a “new old stock” car found in a garage.
Q: How do I know this isn’t a “pull” from a working system? A: We provide high-resolution photos of the gold fingers (connectors). If there are no insertion marks or “scratches” on the pins, you know it hasn’t been cycled. Plus, we provide the original serial number which you can verify against Bently Nevada’s manufacturing records.
Q: What if the firmware version is different from my existing rack? A: This is a common hurdle. If the module has a newer firmware, you simply need to update your 3500 Configuration software project. If you need a specific older firmware to match a legacy system, let us know before shipping. We can often check our inventory for a matching batch.
Q: Do you offer a warranty? A: Yes, we provide a full 12-month warranty. If the module develops a hardware fault under normal operating conditions, we replace it or provide a full refund. We can afford to do this because our failure rate on New Surplus Bently gear is practically zero.
