Description

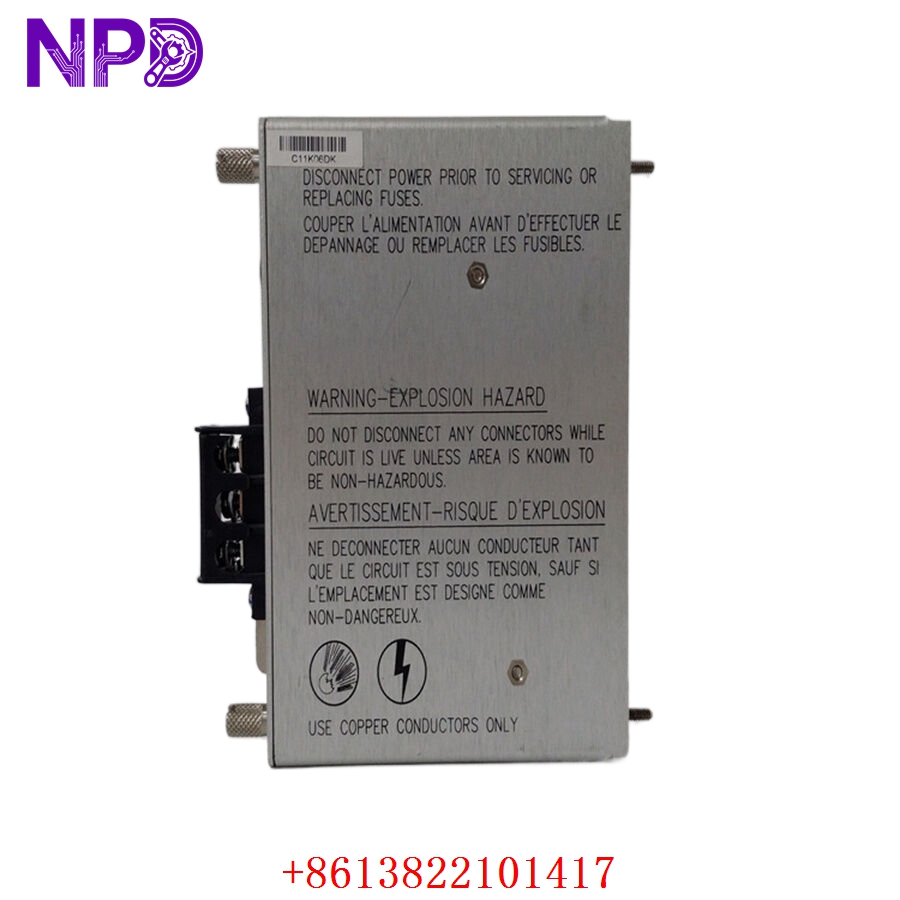

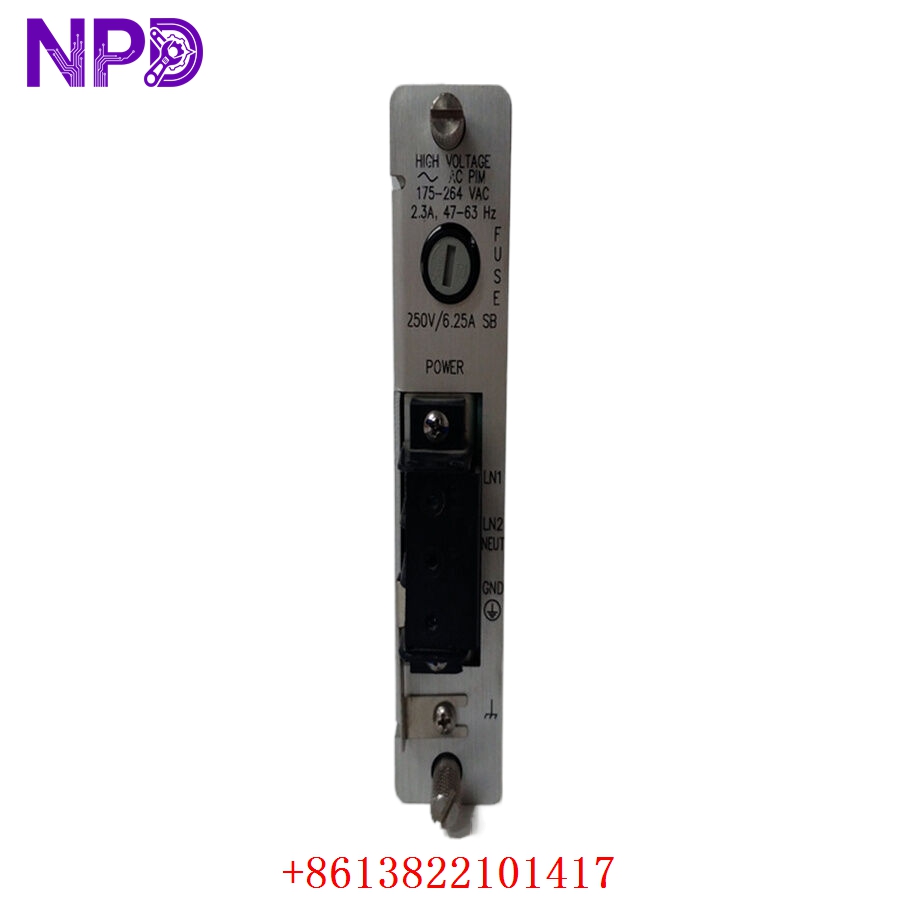

The BENTLY 125840-01 3500/15 is a half-height, high-efficiency AC Power Supply Module engineered for the Bently Nevada 3500 Series Machinery Protection System. This module converts incoming AC line power into the precise, regulated DC voltages required by the 3500 rack backplane to power monitoring monitors, transducers, and interface cards. Designed for critical machinery protection, the 3500/15 system supports full power redundancy; two identical modules can be installed simultaneously in a single rack, allowing the system to run seamlessly from independent power sources without operational interruption if one supply line drops.
Product Datasheet & Specifications
- Manufacturer: Bently Nevada (Baker Hughes)
- Part Number: 125840-01
- Series Model: 3500/15 (3500/15-A01-B00-C00 architecture)
- Component Type: High-Voltage AC Power Supply Module
- Input Voltage Range: 175 V AC to 264 V AC (Extended High-Voltage Range)
- Input Frequency: 47 Hz to 63 Hz
- Nominal Output Voltage: Supplies +24 V DC, -24 V DC, and +5 V DC to the rack backplane
- Approximate Dimensions: 12.2 cm x 24.4 cm x 5.0 cm (Half-height rack form factor)
- Approximate Weight: 1200 grams (1.20 kg)
- Country of Origin: United States (USA)
- Status Indicators: Front panel LEDs for “Supply OK” and “Not OK” diagnostics
BENTLY 125840-01 3500/15
BENTLY 125840-01 3500/15
BENTLY 125840-01 3500/15
Key Application Fields
- Turbo-Machinery Protection: Provides continuous, stable power to vibration monitors protecting steam and gas turbines.
- Oil & Gas Petrochemical Plants: Deployed in critical refinery compression systems requiring 24/7 continuous sensor monitoring.
- Power Generation Stations: Essential power infrastructure for tracking generator shaft vibration, eccentricity, and thermal growth.
- Heavy Industrial Manufacturing: Powers predictive maintenance modules on large-scale air compressors, fans, and cooling tower pumps.
- Marine & Maritime Systems: Ensures power stability for vital propulsion monitoring systems aboard commercial transport ships and drilling platforms.
Product Instructions & Guidelines
- Pre-Installation Safety: Confirm that the source voltage matches the high-voltage AC input range (175–264 V AC) specified on the 125840-01 module casing prior to energizing.
- Rack Slot Placement: The 3500/15 power supply modules must be installed into the dedicated leftmost slots of the 3500 rack chassis frame. Slide the module along the plastic guides until it seats firmly into the rear power distribution backplane.
- Redundant Power Wiring: For true system redundancy, wire the upper power supply module and lower power supply module to separate, isolated AC branch circuits or uninterruptible power supplies (UPS).
- Fastening Layout: Securely tighten the front panel retaining screws using an appropriate screwdriver to ensure consistent chassis grounding and protect against vibration-induced displacement.
- Functional Verification: Upon powering up, check that the green “Supply OK” LED illuminates steadily on the front panel. A blank display or amber fault indicator requires immediate electrical loop investigation.
Q&A – Frequently Asked Questions
- Q: Can the 125840-01 power supply be hot-swapped while the machinery protection system is running?
- A: Yes. If your 3500 rack is configured with dual redundant power supplies, you can safely remove and replace a faulty 125840-01 module without disrupting the active operation of the other monitoring modules.
- Q: What is the main structural difference between a half-height and a full-height power supply in the 3500 system?
- A: The 3500/15 utilizes half-height modules, allowing you to install two independent power supplies (an upper and a lower unit) within a single full-size rack slot space to achieve dual power redundancy.
- Q: Why is the green “Supply OK” LED off but the external circuit breaker is switched on?
- A: This may point to an internal fuse failure within the module, an out-of-range input line voltage, or an over-current shutdown triggered by a hardware short circuit on the rack backplane.
- Q: Do I need to perform any software configuration changes after replacing an old power supply with the 125840-01?
- A: No. The 3500/15 power supply functions as a purely hardware-based component. Once it is physically slid into the backplane and energized, it outputs power automatically without software configuration.
