Description

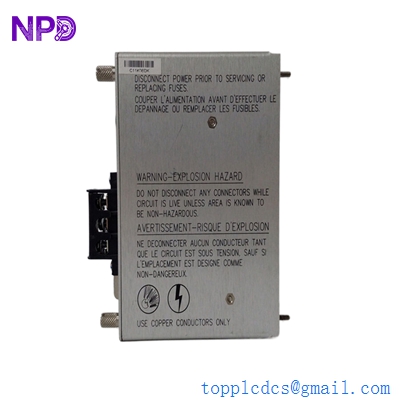

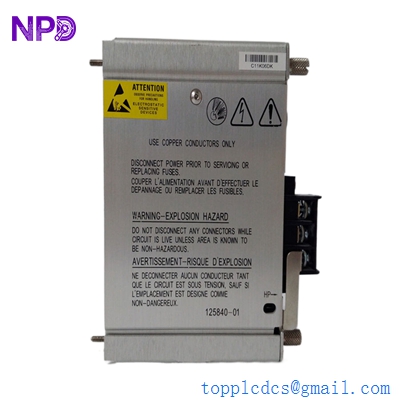

- Model: BENTLY NEVADA 125840-01 (3500/15)
- Brand: Bently Nevada (Baker Hughes)
- Series: 3500 Machinery Protection System
- Core Function: High-voltage AC power supply for the 3500 rack backplane.
- Condition: Brand New Surplus (Original, non-refurbished)
- Type: Power Supply Module (High Voltage)
- Key Specs: 85 to 264 V AC Input 175 W Output Capacity Half-slot Form Factor
BENTLY 125840-01 3500/15
Key Technical Specifications
- Input Voltage: 85 V AC to 264 V AC (Universal Range)
- Input Frequency: 47 Hz to 63 Hz
- Output Power: 175 Watts (Max)
- Form Factor: Half-slot module (Installed in the far left of the rack)
- Efficiency: > 75% at full load
- Isolation: 2,500 V DC between input and output
- Indicators: OK, Supply, and Bypass LEDs on front panel
- Hold-up Time: 20 ms (Allows system to ride through minor power dips)
- Operating Temperature: -30 °C to +65 °C
- Storage Temperature: -40 °C to +85 °C
- Weight: 1.25 kg (approx.)
- Compliance: SIL 2 rated when used in redundant configurations
Installation & Configuration Guide
Phase 1: Pre-Installation (10 Minutes)
⚠️ Warning: The 125840-01 deals with high-voltage AC. Ensure the source circuit breaker is locked out/tagged out (LOTO) before accessing the rear terminals. Even if the rack is redundant, accidental contact with the AC input pins can be fatal.
Preparation:
- Verify if your rack is configured for “Single” or “Redundant” power.
- If redundant, you can replace one 3500/15 module while the machinery protection system is still active (Online).
- Tools: #2 Phillips screwdriver, Fluke 115 Multimeter.
Phase 2: Removal (5 Minutes)
- Check Status: Ensure the “OK” LED on the other power supply (if redundant) is solid green before proceeding.
- Loosen Screws: Unscrew the two captive Phillips screws on the front panel of the 125840-01.
- Extract: Pull the module straight out using the ejector tabs.
- Safety Check: Inspect the backplane connector for any signs of “pitting” or black carbon deposits, which could indicate a short in the rack backplane.
Phase 3: Installation (10 Minutes)
- Verify Voltage: Before sliding the new module in, check the AC input at the rear terminal block. It should be within the 85-264 V AC range.
- Slot Alignment: Slide the 125840-01 into the card guides. The module must be installed in the left-most slots of the 3500 rack.
- Seating: Firmly push the module until it seats into the backplane. Tighten the captive screws—do not over-torque, just hand-tight plus a quarter turn.
- Redundancy Check: If you have a second power supply, ensure the “Supply” LED on both modules is illuminated.
Phase 4: Testing (5 Minutes)
- LED Verification:
- OK (Green): Internal self-tests passed.
- Supply (Green): Input voltage is present.
- Software Confirmation: Open the 3500 Rack Configuration Software. Check the “Rack Status” tab to ensure no “Power Supply Error” events are active.
- Load Check: Ensure the rack is not exceeding the 175 W limit (usually not an issue unless the rack is fully loaded with high-draw monitors).
Customer Cases & Industry Applications
Case 1: Redundancy Failure in a Power Generation Plant
Situation: A combined-cycle power plant in Southeast Asia noticed the “OK” LED was off on one of their two 3500/15 power supplies. The rack was still running on the redundant unit, but they were one failure away from losing vibration monitoring on their primary steam turbine.
The Problem: Local distributors quoted a 6-week lead time. The plant’s insurance policy required 100% monitoring uptime for the turbine to remain operational.
Our Action: We provided an immediate quote for a New Surplus 125840-01. We sent high-res photos of the unit’s serial number and the 500 V insulation resistance test we performed using a Megger.
Result: The module arrived in 3 days. The client swapped it while the system was live. They avoided a “blind” operation period, which would have cost them $50,000/day in increased insurance premiums and risk.
Case 2: Emergency Replacement during a Maintenance Turnaround
Situation: During a refinery turnaround, an old power supply failed to power back up after a planned shutdown. The 3500 rack wouldn’t initialize, preventing the restart of a critical compressor.
The Problem: Every hour the compressor was down delayed the refinery’s restart, costing thousands in lost production.
Our Action: We shipped a tested 125840-01 from our local inventory via a dedicated courier.
Result: The module was onsite within 12 hours. The compressor was brought back online that evening. The maintenance lead later said, “Having a reliable source for these older 3500 parts saved our restart schedule.”
Frequently Asked Questions (FAQ)
Q: Can I mix this AC power supply with a DC power supply in the same rack? A: No. The 3500 rack requires both power supply modules (if using redundancy) to be of the same type. You cannot mix the 125840-01 (AC) with a 125840-02 (DC) supply.
Q: Why does my module show a “Bypass” LED? A: The Bypass LED usually indicates that the Rack Configuration Keylock is in the “Program” position, or a specific monitor is in bypass mode. If the module itself is failing, usually the “OK” LED will turn off or flash red.
Q: Is there a difference between the 125840-01 and the older 127610-01? A: The 125840-01 is the high-voltage AC version, whereas the 127610-01 was a legacy part number for the same series. The 125840-01 is the current standard for AC-powered 3500 racks and is fully backward compatible.
Q: Do you offer the “Legacy” 3500 power supplies, or only the newer versions? A: We focus on the “New Surplus” versions of the 125840-01. These are the more modern, efficient designs that replaced the early 1990s versions. They are a direct “drop-in” replacement with better thermal management.
Q: How do you verify the unit is truly “New Surplus”? A: We check three things: First, the date code on the serial number. Second, we inspect the gold-plated fingers on the backplane connector—any “scuffing” indicates it’s been plugged in multiple times (used). Third, we perform a 24-hour load test at 100 W to ensure no early-life component failure.
