BENTLY NEVADA 128229-01 3500/42M Proximitor Seismic Monitor

Description

• Model: BENTLY NEVADA 128229-01 (3500/42M)
• Brand: Bently Nevada (Baker Hughes / USA)
• Series: 3500 Machinery Protection System
• Core Function: Four-channel monitor that accepts inputs from proximity and seismic transducers, conditions the signals, and compares them against user-defined vibration alarms.
• Condition: Brand New Surplus (Original factory packaging, non-refurbished)
• Product Type: Proximitor / Seismic Monitor Module
• Key Specs: 4 Channels | 4-20 mA DC Recorder Outputs per channel | Supports Pro収 Prox, Velomitor, and Accelerometer sensors

• Number of Channels: 4 fully programmable channels per module
• Input Signal Types: Proximitor sensors, Accelerometers, Velomitor sensors, or Seismic velocity transducers
• Power Consumption: 7.0 W typical (From 3500 rack backplane)
• Signal Conditioning:
  • Direct vibration (Peak, Peak-to-Peak, or RMS)
  • Gap voltage
  • Bandpass vibration
• Front Panel Displays: Onboard status LEDs (OK, TX/RX, Bypass, Alarm/Alert)
• Analog Outputs: 4-20 mA DC proportional output per channel on matching I/O modules
• Buffered Transducer Outputs: Coaxial connectors on the front panel for each channel (conditioned raw vibration signal for analysis equipment)
• Accuracy: Within ±1% of full-scale range
• Chassis Slot Allocation: Occupies one full-height slot in a standard 3500 rack (requires a matching rear I/O module)
• Operating Temperature: -30 °C to +65 °C

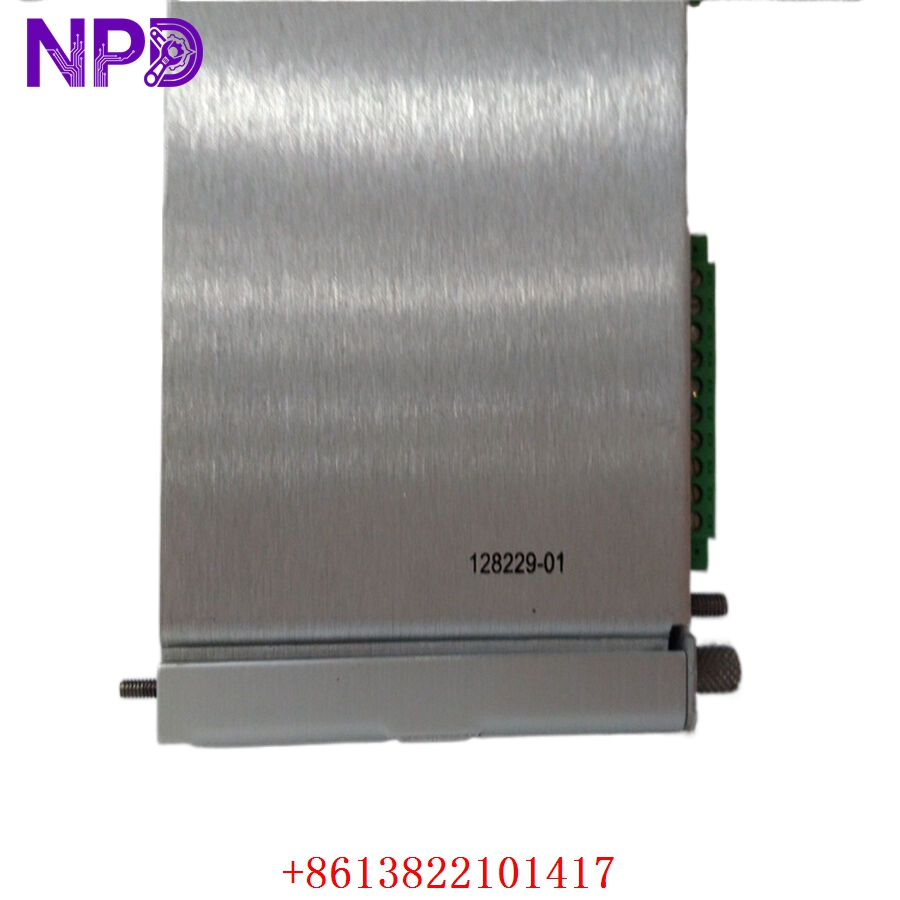

BENTLY 128229-01 3500/42M

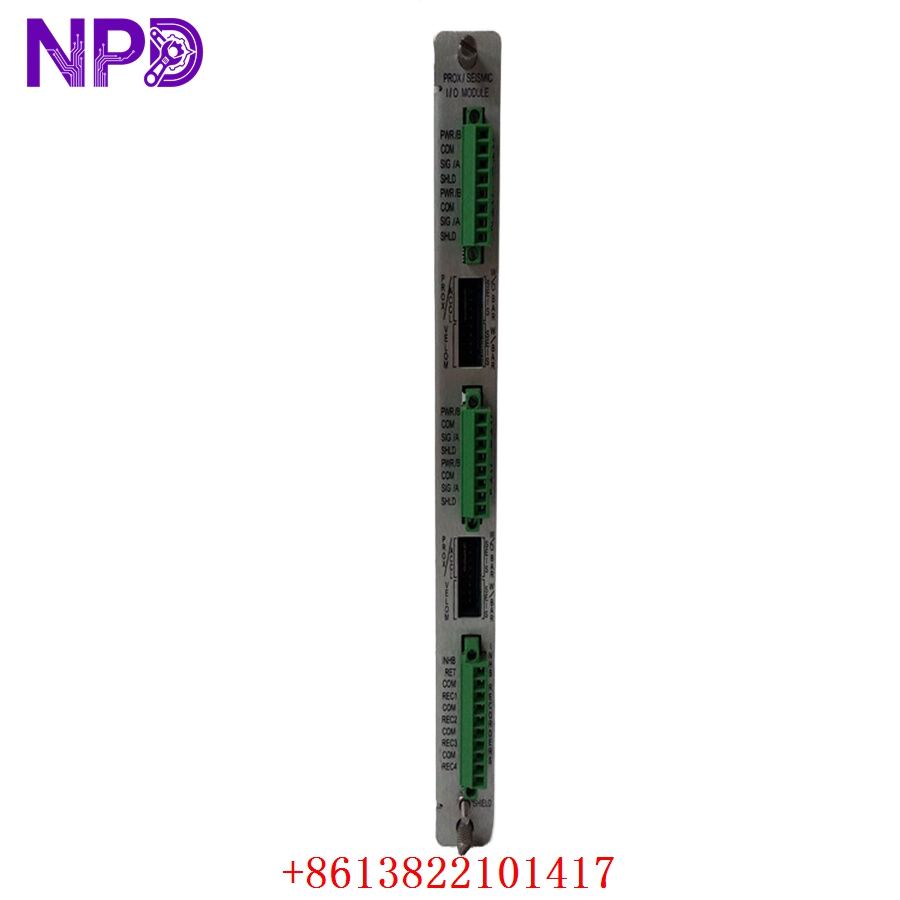

BENTLY 128229-01 3500/42M

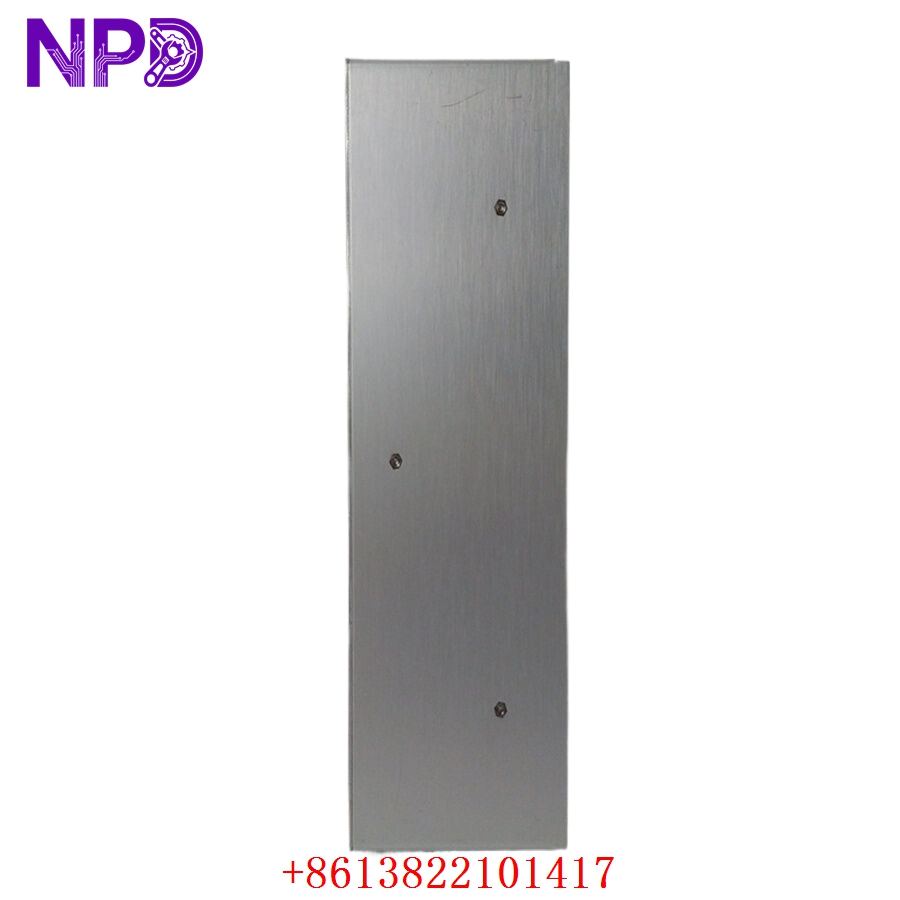

BENTLY 128229-01 3500/42M

BENTLY 128229-01 3500/42M

Application Scenarios & Engineering Pain Points

In high-speed rotating machinery protection, the 128229-01 (3500/42M) is a frontline defense. It monitors critical mechanical metrics like shaft vibration, thrust position, and eccentric movement on large-scale turbine units.

A major engineering headache occurs when a critical vibration channel fails or starts throwing false spikes due to internal hardware fatigue. Because the 3500 system is tied directly to plant emergency trip systems (ESD), an unstable monitor card can trigger an accidental, full-facility shutdown, causing massive financial losses. Conversely, if a module fails silently, a machine could suffer severe mechanical damage without an alarm ever sounding. When an older 3500/42M module goes down, plant engineers need an exact, verified replacement to restore safety margins immediately without stopping the machine.

Typical Field Deployments:

1. Power Generation – Steam and Gas Turbine Bearings

   Continuously monitors radial shaft vibration and fluid-film bearing gaps to detect rotor unbalance, misalignment, or oil whirl.

2. Oil & Gas – Centrifugal Compressor Shafts

   Tracks high-speed axial thrust positioning and casing vibration to prevent catastrophic rotor-to-stator contact during process surges.

3. Heavy Industry – Large Industrial Fan Bearings

   Interfaces with Velomitor sensors on massive draft fans in steel or cement plants, monitoring low-frequency casing imbalance.

Case Study: The Jittery Gas Compressor Trip

• The Setup: A critical natural gas pipeline booster station relied on a Bently Nevada 3500 rack equipped with multiple 128229-01 cards to protect a 15,000 HP compressor train.
• The Crisis: During a midnight shift, Channel 2 on one of the 3500/42M modules began showing erratic vibration spikes that jumped past the “Danger” threshold. The system executed its 2-out-of-2 voting logic and tripped the compressor train, dropping line pressure and interrupting delivery. The station crew quickly hooked up a portable data analyzer to the module’s front buffered coaxial ports and confirmed the raw sensor signal was perfectly smooth—the fault was an internal component failure on the monitor card itself. The station could not restart the compressor safely without a functioning protection card.
• The Fix: The plant manager contacted our emergency support desk. We verified a brand-new 128229-01 module in our climate-controlled warehouse, completed a live rack boot test, and arranged priority courier dispatch.
• The Outcome: The card arrived on-site within 20 hours. The lead instrumentation tech pulled the old module, loaded the station’s archived configuration file into the new card using Bently 3500 Rack Configuration software, and slid it into the running rack. The false alarms cleared instantly, the voting loop reset, and the station safely brought the compressor train back online, preventing extended contract penalties.

Standard Operating Procedure (SOP) Quality Transparency

Because machinery protection systems leave zero room for error, our laboratory processes every 128229-01 module through a strict five-step quality cycle before authorization:

[Pin & Trace Inspection] ➔ [Live 3500 Rack Integration] ➔ [Transducer Input Simulation] ➔ [Buffered Output Frequency Check] ➔ [ESD Safe Packing]

1. Pin and Trace Inspection

• Micro-Audit: We examine the backplane edge connectors, surface components, and front-panel coaxial ports under high magnification to check for microscopic cracks, solder fatigue, or oxidation.
• Authenticity Check: Model numbers, serial revisions, and manufacturing stamps are audited against Bently Nevada technical specs to ensure the card is 100% genuine and unaltered.

2. Live 3500 Rack Integration (Live Bench Test)

• Test Architecture: The module is seated into an authentic Bently Nevada 3500/05 chassis equipped with a functional 3500/15 power supply and 3500/22M Transient Data Interface (TDI).
• Boot Verification: We power up the chassis and monitor the rack communication logs, confirming that the TDI recognizes the new 3500/42M card immediately without throwing communication errors.

3. Transducers Input Simulation

• Signal Injection: Using a multi-channel signal generator, we inject precise AC and DC voltages into the matching rear I/O terminals to simulate proximity probe signals (-10 V DC bias with variable AC wave overlays).
• Threshold Mapping: We verify that the module accurately reads the direct vibration amplitudes and gap voltages, and that the onboard Alert and Danger LEDs illuminate exactly at the programmed test thresholds.

4. Buffered Output Frequency Check

• Coaxial Output Verification: We connect an oscilloscope to the front panel’s buffered coaxial ports to verify that the raw, un-attenuated signal passes through cleanly with zero distortion or phase shift.

5. ESD Safe Packing and Dispatch

• Shielding: The verified card is placed inside a heavy-duty, static-shielding bag inside an ESD-safe workspace.
• Cushioning: Packed inside custom shock-absorbent foam inserts within heavy-walled boxes to shield the electronic components during international transport.
• Certification: A physical “QC Passed” label with the test date is affixed to the packaging.

Technical Pitfall Mitigation Guide

Replacing a 3500/42M monitor card requires following exact steps to avoid common field configuration issues.

1. The Configuration Profile Match (The Blank Card Problem)

• The Risk: A new surplus 128229-01 module contains default factory parameters. If you slide it directly into an active rack without loading your specific site configuration, the module will enter a configuration fault state and bypass the channel.
• The Fix: Before replacing the module, connect your laptop to the rack’s 3500/22M TDI port using the Bently 3500 Rack Configuration Software. Upload and save a backup copy of the current rack configuration. Once the new card is physically installed, open the software, select the matching slot, configure the specific transducer types (e.g., 8 mm proximity probe, scale factors, alarm delay times), and download the settings to the new module.

2. Matching Front Modules and Rear I/O Cards

• The Risk: The 3500/42M front monitor module must match the specific style of rear I/O card installed in the back of the slot (e.g., Prox/Seismic I/O with internal termination, external termination, or discrete internal barriers).
• The Fix: Confirm that your rear I/O card matches the system requirements. The 128229-01 front module works with standard 3500/42M I/O cards, but if your rear card contains internal safety barriers, you must verify that the software configuration profile is updated to reflect this hardware choice.

3. Hot-Swap Safety and Rack Bypass

• The Risk: While the 3500 rack supports hot-swapping modules while the system is powered, pulling or inserting a monitor card can cause voltage fluctuations on the backplane that might accidentally trip a running machine via adjacent relay modules.
• ❗ Crucial Warning: Before pulling the old module or inserting the new 128229-01, activate the Rack Bypass switch or manually bypass the corresponding alarm relays in the configuration software. This prevents any temporary switching transients from accidentally shutting down your machinery during the swap.

Compatible Replacement Models

If you are evaluating system updates or long-term component availability, review these cross-reference options:

Troubleshooting Quick Reference

If your machinery protection loop displays an error, use this matrix to isolate the issue before replacing components:

Need immediate engineering backup? If your plant is down and you cannot pinpoint the failure node, drop our technical support desk an email with photos of your current indicator lights and a copy of your panel’s wiring diagram. We will have an integration engineer respond within 2 hours.
