Description

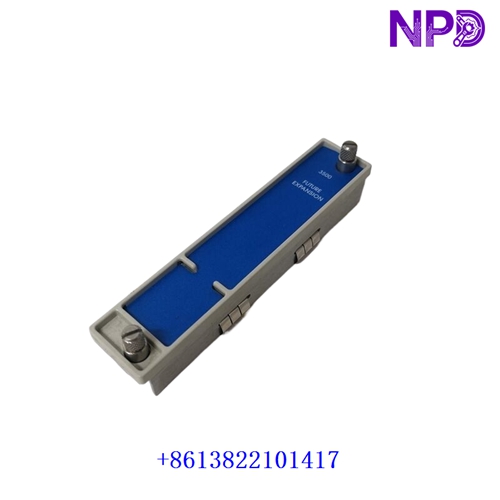

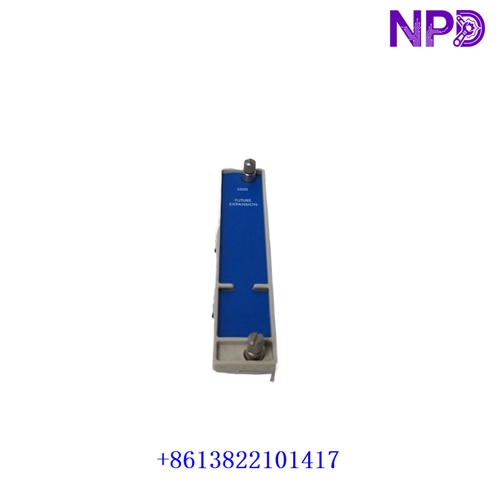

The BENTLY NEVADA 128276-01 is a 3500 Series half-height future expansion accessory designed for Bently Nevada machinery protection racks. It is used to cover unused half-height module positions and maintain proper rack configuration when additional monitoring modules may be installed in the future.
The 128276-01 is a mechanical rack accessory rather than an active monitoring module. It helps maintain the physical layout, airflow management, and protection of open positions within a 3500 monitoring system rack.
🔧 Function Description
The 128276-01 provides a blank faceplate solution for unused half-height slots in Bently Nevada 3500 Series racks. It prevents exposed openings in the rack assembly and keeps the cabinet installation organized.
When additional monitoring modules are required, the future expansion cover can be removed and replaced with compatible 3500 Series modules.
🏭 Typical Applications
• Bently Nevada 3500 Machinery Protection Systems
• Turbine monitoring cabinets
• Rotating equipment protection systems
• Power generation plants
• Compressor monitoring systems
• Industrial condition monitoring cabinets
• OEM equipment maintenance projects
📋 Product Datasheet
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 128276-01 |
| Product Type | Half-Height Future Expansion Faceplate |
| Series Compatibility | 3500 Machinery Protection System |
| Main Function | Unused Rack Slot Cover |
| Module Type | Passive Mechanical Accessory |
| Rack Position | Half-Height Slot |
| Application | Rack Expansion Preparation |
| Compatible System | Bently Nevada 3500 Series |
| Installation Type | Front Panel Rack Installation |
| Interface | No Electrical Interface |
| Power Supply | Not Required |
| Communication | Not Applicable |
| Material | Industrial Panel Material |
| Mounting Method | Rack Mounted |
| Dimensions | Approx. 222 × 246 × 20 mm* |
| Weight | Approx. 0.09 lb / 0.04 kg* |
| Operating Temperature | System Cabinet Dependent |
| Storage Temperature | System Cabinet Dependent |
| Country of Origin | USA* |
*Specifications may vary depending on manufacturing revision. Confirm exact mechanical dimensions before installation.
⚡ Key Features
• Designed for Bently Nevada 3500 Series racks
• Half-height expansion slot design
• Maintains clean rack appearance
• Protects unused rack positions
• Supports future system expansion
• No configuration or software setup required
• Suitable for spare-parts inventory management
🔌 System Integration
The 128276-01 is installed directly into an unused half-height position of a Bently Nevada 3500 rack.
It does not process vibration signals, provide monitoring functions, or communicate with controllers. Its purpose is to maintain the physical integrity of the monitoring rack until additional hardware is installed.
🛠️ Installation Notes
Before installation, verify the rack type and confirm compatibility with the Bently Nevada 3500 Series configuration.
Installation steps:
• Switch off cabinet access procedures according to site requirements
• Remove the empty rack position cover if installed
• Insert the 128276-01 faceplate into the correct half-height slot
• Secure mounting hardware
• Confirm proper rack appearance and mechanical stability
⚙️ Commissioning Checklist
• Verify part number 128276-01
• Confirm 3500 rack compatibility
• Check mounting position
• Inspect fastening points
• Confirm no electrical connection is required
• Verify cabinet airflow condition
• Record spare-part installation status
⚠️ Compatibility Notice
The BENTLY NEVADA 128276-01 is a rack accessory and not an active monitoring, communication, or controller module.
For replacement applications, confirm the rack series, slot height, mounting position, and existing 3500 system configuration before installation.
📦 Product Identification
Brand: BENTLY NEVADA
Model: 128276-01
Series: 3500 Machinery Protection System
Product Type: Half-Height Future Expansion Faceplate
Function: Rack Slot Cover / Expansion Preparation
Application: Turbine & Rotating Machinery Monitoring Systems
