Description
- Model: 132419-01
- Brand: Bently Nevada (Baker Hughes)
- Series: 3500 Series Machinery Protection System
- Core Function: Converts high-voltage input to regulated DC for the 3500 backplane
- Product Type: Internal DC-to-DC Power Converter Module
- Key Specs: Compatible with 3500/15 AC Supply | Multi-rail Output | Plug-in Design
- Input Voltage: Derived from the 3500/15 primary AC stage (85 to 264 V AC)
- Output Rails: Regulated +5 V, +15 V, -15 V, and +24 V DC (System Dependent)
- Efficiency: >80% at full load
- Isolation: High-voltage isolation between input and backplane rails
- Cooling: Convection cooled via the 3500 rack chassis
- Mounting: Internal to the 3500/15 Power Supply housing
- MTBF: Rated for over 100,000 hours of continuous operation
- Status Feedback: Communicates health status to the 3500/22M Rack Interface Module

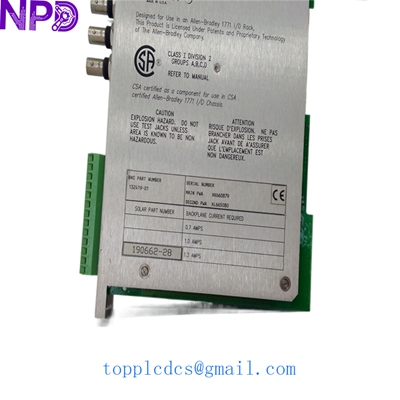

BENTLY 132419-01
Application Scenarios & Pain Points
Engineering Pain Points: The 132419-01 is the most common failure point in a 3500 rack that has been running for 10+ years. Because it sits in the power supply slot, it generates the most heat. The electrolytic capacitors on these boards eventually dry out, leading to “Power Supply Mismatch” alarms or, worse, a complete rack blackout. The biggest integrator headache is Redundancy Switching. If you have dual power supplies and one 132419-01 fails, the other takes the full load; if you don’t catch it quickly, the second one will often fail due to the sudden thermal stress.
Typical Application Scenarios:
- Critical Machinery Protection Providing the ultra-stable DC power required for 3500/42M proximity probe monitors on steam turbines.
- Retrofit & Repair Extending the life of existing 3500 racks by replacing the internal converter rather than the entire expensive 3500/15 assembly.
- High-Availability Environments Used in dual-redundant power configurations for LNG compression trains where a power loss triggers an immediate plant trip.
- Offshore Platforms Engineered for continuous 24/7 operation in remote environments where power quality can be inconsistent.
The “Half-Dead Rack” Case Study
Background: A gas processing plant in Southeast Asia reported that their 3500 rack was intermittently rebooting. The “OK” LEDs on the monitors would flicker green to red, but the main power breaker wasn’t tripping.
Problem: We pulled the 3500/15 power supply and inspected the internal 132419-01 module. We found a “leaky” output rail—the +5V rail was fluctuating between 4.2V and 5.1V. This was just enough to keep the CPU running but caused the I/O cards to reset randomly.
Solution: We swapped the internal 132419-01 converter with a new unit.
Result: The DC rails stabilized immediately. By replacing just the internal module, we saved the customer 60% of the cost compared to buying a full new 3500/15 unit from the OEM.
Compatible Replacement Models
| Original Model | Related/Replacement | Compatibility | Note |
| 132419-01 | 129486-01 | ✅ Direct Replace | Often found in the High-Voltage AC version |
| 132419-01 | 132419-02 | ⚠️ Limited | Check the specific DC rail voltage output; may be Low-Voltage DC |
| 132419-01 | 125871-01 | ❌ Incompatible | This is for the 3500/15 DC primary supply, not AC |
Integrator’s Tip: …When you’re replacing this, don’t forget to check the Backplane Connector on the 3500 rack itself. If the 132419-01 failed due to a short circuit, it might have charred the pins on the rack’s power bus. Always give it a “sniff test”—if you smell burnt ozone, the card isn’t the only thing you need to change.
BENTLY 132419-01
Troubleshooting Quick Reference
| Symptom | Possible Cause | Related Part | Action |
| PS LED is OFF | Primary AC Fuse Blown | ❌ External | Check the fuse on the 3500/15 front panel |
| PS LED is RED | Rail Voltage Out of Spec | ✅ 132419-01 | Replace internal DC-DC converter |
| Rack Boots, then Dies | Thermal Overload | ✅ 132419-01 | Check for dust buildup/fan failure in the rack |
| Mismatch Alarm | Redundancy Logic Fail | ⚠️ Medium | Verify both PS modules have the same 132419-01 revision |
Field Note: If you’re swapping this module in the field, for the love of the turbine, wear an ESD wrist strap. The 132419-01 has sensitive logic that talks to the 3500/22M Rack Interface. One static pop and you might kill the communication bus for the whole rack.
BENTLY 132419-01
Strategic Quality Assurance (Our SOP)
- Full Load Rail Test: We test the module under 100% load on a 3500 test jig, monitoring the +5, +15, -15, and +24V rails with a Rigol oscilloscope.
- Thermal Soak: The unit is run at 50°C for 12 hours to ensure no “infant mortality” failure of the capacitors.
- Redundancy Handover: We verify the “Supply OK” relay signal is correctly generated for the rack logic.
- Physical Check: Inspection of the multi-pin connector for any tension or alignment issues.
