BENTLY NEVADA 133442-01 | 3500/50 Tachometer Module I/O

Description

• Model: 133442-01
• Brand: Bently Nevada (Baker Hughes)
• Series: 3500 Monitoring System
• Core Function: I/O Module for 3500/50 Tachometer (Internal Terminations)
• Product Type: I/O Module / Backplane Interface
• Key Specs: 2-Channel Support | Magnetic Pickup/Proximity compatible | TMR support

• Channel Count: 2-Channel (Dual Speed inputs)
• Input Signal Range: +10.0 V to -24.0 V (Peak)
• Frequency Range: 0.001 Hz to 20 kHz
• Termination Style: Internal Terminations (Screw Terminals)
• Transducer Power: -24 Vdc, 40 mA per channel
• I/O Connectivity: Specialized cable interface to the 3500/50 Front Main Module
• Dimensions: Full-height 3500 I/O card
• Humidity: 95% Non-condensing
• Compliance: ATEX, CSA, CE (When used in approved chassis)

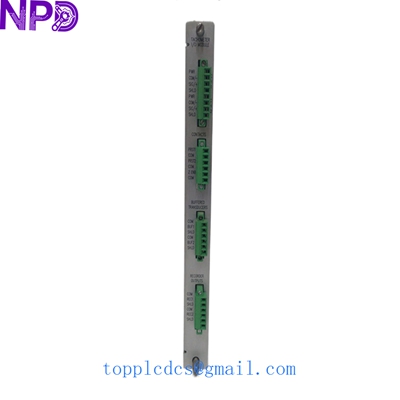

BENTLY 133442-01

Application Scenarios & Pain Points

The 133442-01 is the bridge between your high-speed rotation sensors (Proximitors or Magnetic Pickups) and the 3500 system’s processing logic. In heavy industry—specifically on steam turbines or centrifugal compressors—the tachometer is the most vital module for machine protection. If this I/O card fails, you lose your overspeed protection and zero-speed detection. I’ve seen situations where technicians miswired the 24V supply and blew the input protection diodes on this card, effectively “blinding” the system to the machine’s RPM. Without a spare 133442-01, you are stuck with an unmonitored machine that safety protocols simply won’t let you run.

Typical Application Scenarios:

1. Steam Turbine Overspeed Protection: Providing high-accuracy speed data for Emergency Trip Systems (ETS).
2. Anti-Surge Control: Supplying RPM data to compressor controllers to prevent catastrophic surge events.
3. Zero-Speed Monitoring: Detecting when a turbine has come to a complete stop for turning gear engagement.
4. Reverse Rotation Detection: Ensuring fans or pumps aren’t spinning backwards during startup sequences.

Case Study: The “Noisy” RPM Alarm

Background: A power plant in the Middle East reported that their 3500 system was throwing “Invalid Speed” alarms on a gas turbine during coast-down.

Problem: After swapping the front 3500/50 module, the problem remained. We suspected the 133442-01 I/O card. Upon inspection, the screw terminals had developed slight oxidation, and a filter capacitor on the board had degraded, failing to suppress signal noise from the proximity probe.

Solution: We provided a New Surplus 133442-01 from our newplcdcs stock. We advised the client to clean the sensor wire tips before re-terminating.

Result: The clean connections and the fresh filtering circuitry on the new I/O card stabilized the RPM reading. The turbine was cleared for full operation within hours, avoiding a manual “watch-and-wait” startup procedure.

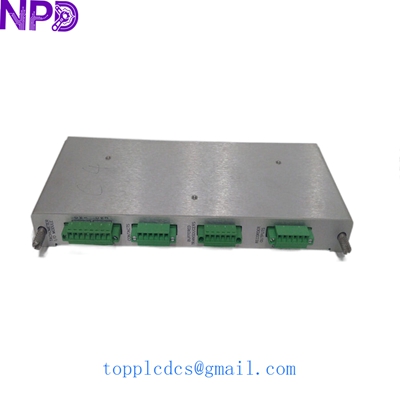

BENTLY 133442-01

Troubleshooting Quick Reference

BENTLY 133442-01

Technical “Pro-Tips” (Avoiding Common Pitfalls)

When you’re replacing a 133442-01, it’s usually because you need to get the machine back online now. But don’t let the pressure cause a mistake:

1. The “Internal” vs “External” Trap: Make sure your rack is set up for Internal Terminations. If your rack uses an External Termination Block (ETB) with a multi-pin cable, this 133442-01 (which has the screw terminals directly on it) will not work. Always verify the back of your rack first.
2. Keying Washers: Bently Nevada uses plastic keying washers on the I/O cards to prevent putting the wrong card in the wrong slot. If the new 133442-01 doesn’t slide in, check the washer position. Don’t force it or you’ll snap the connector.
3. Gap Settings: While the I/O card processes the signal, the signal quality depends on the physical gap of the sensor. If you’re getting “Invalid” readings on the new card, use a voltmeter to check the DC bias voltage on the terminals—it should be around -10V for a standard Proximitor at the correct gap.

❗ Warning: This card provides raw speed data to the 3500/50. If you are using this in an overspeed protection loop, a misconfiguration here can disable your safety trip. Always perform a “Simulation Test” after replacement to verify trip setpoints.
