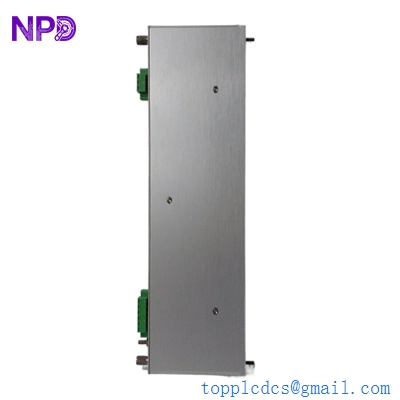

Bently Nevada 146031-01 3500/22M Transient Data Interface Module

Description

Product Core Brief

• Model: Bently Nevada 146031-01 (3500/22M)
• Brand: Bently Nevada (Baker Hughes)
• Series: 3500 Machinery Protection System
• Core Function: Transfers dynamic and alarm data from 3500 rack to host systems
• Type: Transient Data Interface (TDI) Module
• Key Specs: 24 V DC supply Ethernet/serial comms Rack controller interface

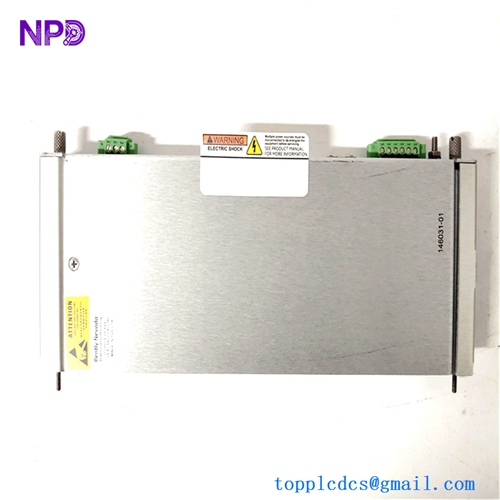

BENTLY 146031-01 3500/22M

Key Technical Specifications

• Input Power: 24 V DC nominal
• Primary Role: Data interface between 3500 rack and external systems
• Communication Ports: Ethernet and serial (model-dependent configuration)
• Supported Protocols: Bently Nevada proprietary rack protocol
• Rack Interface: Direct backplane connection to 3500 monitoring modules
• Data Types: Static values, dynamic waveform data, alarm status
• Sampling Support: High-speed transient data capture
• LED Indicators: Power, communication, and fault status
• Operating Temperature: -30 °C to +65 °C
• Mounting: Standard 3500 series rack slot

Application Scenarios & Pain Points

If you’ve worked with Bently 3500 systems long enough, you know the truth: when the TDI goes down, the rack keeps monitoring… but you’re blind. Operators lose trends, historians stop collecting data, and condition monitoring teams start calling every hour. The machine may still be protected, but from an operations standpoint, that’s not good enough.

Typical application scenarios:

1. Power generation – Turbine condition monitoring
   Acts as the data gateway between the 3500 rack and the plant DCS or monitoring server.
2. Oil and gas – Critical compressor trains
   Enables high-speed transient capture during startup, trip, and coast-down events.
3. Refineries and petrochemical plants
   Feeds vibration, alarm, and event data into historians for long-term analysis.
4. Remote monitoring centers
   Supports centralized diagnostics across multiple sites via networked 3500 racks.

Compatible Replacement Models

This is where expectations need to be managed.

Replacement options:

⚠️ Same model replacement (recommended)

• Bently Nevada 146031-01 (3500/22M)
  • Identical wiring and configuration
  • No changes to host software
  • Lowest commissioning risk

⚠️ Later revision 3500/22M variants

• Other 3500/22M part numbers
  • Usually compatible at the rack level
  • Firmware and communication settings must be verified
  • Expect configuration checks during commissioning

❌ Different interface platforms

• Newer Bently systems
  • Require new rack hardware and software
  • Not a module swap
  • Treat as a system upgrade project

• Troubleshooting Quick Reference

  Fault Symptom	Likely Cause	Module Relevance	Quick Check	Recommendation
  Rack OK, no data to host	TDI communication failure	✅ High	Check Ethernet/serial LEDs	Replace or reconfigure TDI
  No transient data captured	Internal TDI fault	✅ High	Trigger test event	Replace module
  Intermittent data dropouts	Firmware or network issue	⚠️ Medium	Check link stability, packet loss	Verify firmware and cabling
  Host cannot see rack	IP or address mismatch	❌ Low	Verify network settings	Correct configuration
  All LEDs off	Power issue	❌ Low	Measure 24 V DC at rack	Check power supply

  Late-night rule of thumb:
  If protection is active but all trends and waveforms disappear at once, the 3500/22M jumps to the top of my suspect list.

  Quality Control & Testing Transparency

  From an integrator’s point of view, “available stock” only matters if it’s proven usable.

  1. Incoming inspection
     Serial number traceability, packaging check, and visual inspection for corrosion or prior use.
  2. Live functional testing
     Tested in a dedicated Bently Nevada 3500 rack. Power-up checks, LED status verification, and simulated data transfer.
  3. Electrical tests
     Insulation resistance testing (>10 MΩ at 500 V) and grounding continuity checks.
  4. Firmware and configuration verification
     Firmware revision recorded. Any configurable settings documented with photos.
  5. Final QC and packing
     Anti-static sealing, protective packaging, and QC label with date and inspector signature.

  Test photos or short videos can be shared. No guesswork.

  Integration Pitfalls to Avoid

  ❗ Firmware mismatch
  I’ve seen racks talk happily to the wrong firmware… until transient capture fails. Always record the old version first.

  ❗ Network assumptions
  The TDI doesn’t fix bad switches or duplicate IPs. Check the network before blaming the card.

  ❗ ESD handling
  This module is more sensitive than most people expect. Wrist strap and mat are not optional.
