Description
The BENTLY 146031-01 is a high-precision Temperature Monitor module for the 3500 Series Machinery Protection System. It provides six channels of temperature monitoring and compares these inputs against programmable alarm setpoints to protect critical industrial machinery from thermal damage.
Technical Parameters
- Model: 146031-01 (3500/60)
- Input Signal: Resistance Temperature Detectors (RTDs) and Thermocouples (TCs)
- Channel Count: 6 channels per module
- Accuracy: ±1.1°C (±2°F) for most RTD/TC types
- Update Rate: 100 milliseconds for all channels
Product Specifications
- I/O Type: Non-isolated or Isolated (depending on backplane)
- Power Consumption: 7.0 watts typical
- Dimensions: Full-height rack module
- Indicators: OK LED, TX/RX LED, and Bypass LED
Application Fields
- Power Generation Turbine Bearings
- Large Industrial Motors and Pumps
- Reciprocating Compressor Cylinder Heads
- Gearbox Oil Temperature Monitoring

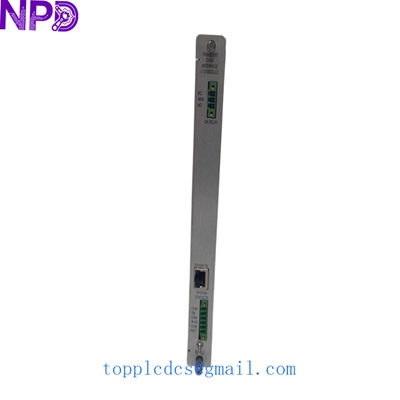

BENTLY 146031-01

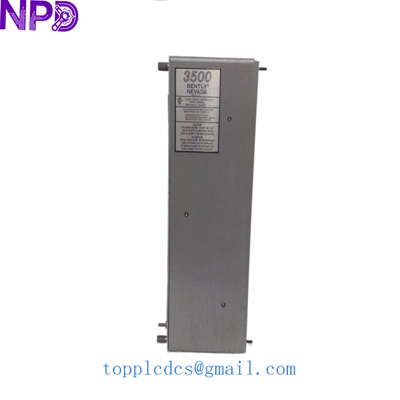

BENTLY 146031-01
Origin & Operating Requirements
- Origin: USA (Bently Nevada / Baker Hughes)
- Temperature: -30°C to +65°C Operating
- Humidity: 95% Non-condensing
- Configuration: Requires 3500 Rack Configuration Software for setup
Q&A
- Q: Can this module mix RTD and Thermocouple inputs?
- A: Yes, each channel is independently programmable for different sensor types.
- Q: Does the 146031-01 include the internal barriers?
- A: This part number refers to the main processor module; internal barriers are part of specific I/O modules.
- Q: What happens if a sensor wire breaks?
- A: The module features “Not OK” status logic that detects open circuits and prevents false trips.
