Description
Product Overview

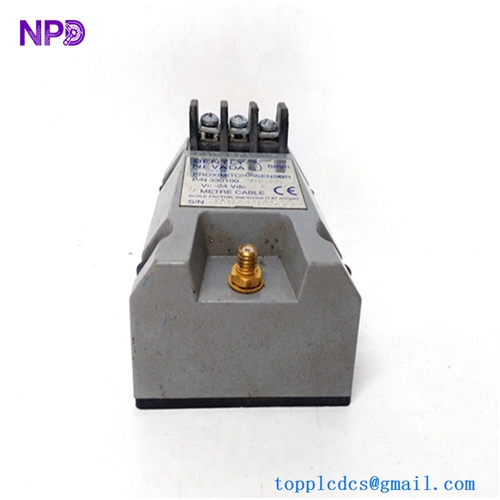

The BENTLY NEVADA 330100-90-01 is a high-precision proximity probe from the trusted 3300 XL™ series. It is designed for continuous, non-contact measurement of shaft vibration and position in critical rotating machinery. With excellent stability, repeatability, and resistance to harsh industrial environments, this probe is widely used in condition monitoring and machinery protection systems.
Product Parameters
- Model Number: 330100-90-01
- Product Type: Proximity Probe
- Series: 3300 XL™
- Measurement Principle: Eddy current, non-contact
- Probe Tip Diameter: 8 mm
- Thread Size: M10 × 1
- Cable Length: 9.0 m
- Measurement Range: Typically 2 mm (80 mils), system dependent
- Sensitivity: 7.87 V/mm (200 mV/mil) when used with matched system components
- Operating Temperature Range: −35 °C to +177 °C
- Housing Material: Stainless steel
- Environmental Rating: Suitable for industrial vibration monitoring environments
Product Datasheet (Key Technical Data)
| Item | Specification |
|---|---|
| Probe Type | Eddy current proximity probe |
| Tip Diameter | 8 mm |
| Thread | M10 × 1 |
| Standard Cable Length | 9.0 meters |
| Output Type | Analog voltage (system dependent) |
| Linearity | High linearity within calibrated range |
| Repeatability | Excellent |
| Electrical Compatibility | 3300 XL extension cables and drivers |
| Installation Orientation | Radial or axial |
| Typical Applications | Shaft vibration, shaft position, thrust |
Country of Origin
- Original Manufacturer: Bently Nevada
- Country of Origin: United States
Product Technical Description
The 330100-90-01 proximity probe operates on the eddy current measurement principle. When installed near a conductive target such as a rotating shaft, the probe generates a high-frequency electromagnetic field. Changes in the distance between the probe tip and the target alter the eddy current field, producing a proportional voltage output.
This probe is engineered for long-term stability, ensuring consistent measurement accuracy even in high-temperature, high-vibration environments. When paired with the correct 3300 XL extension cable and proximity driver, it forms a fully calibrated measurement system capable of delivering reliable real-time data for machine protection and predictive maintenance.
Frequently Asked Questions (Q&A)
Q1: Can the 330100-90-01 be used alone?
A1: No. It must be used together with a compatible 3300 XL extension cable and proximity driver to form a complete measurement system.
Q2: What type of machinery is this probe suitable for?
A2: It is suitable for turbines, compressors, pumps, motors, and other critical rotating equipment.
Q3: Is the probe resistant to harsh environments?
A3: Yes. The stainless-steel housing and robust design allow operation in high-temperature and industrial environments.
Q4: Does cable length affect measurement accuracy?
A4: The probe is factory designed to work accurately with specified cable lengths when matched with compatible system components.
Q5: Can it measure axial position as well as vibration?
A5: Yes. Depending on installation, it can be used for both radial vibration and axial position measurements.
