Description
- Model: Bently Nevada 330180-90-00
- Brand: Bently Nevada (Baker Hughes)
- Series: 3300 XL 5mm/8mm Proximity Transducer System
- Core Function: Converts eddy current probe signals into a linear voltage for vibration/thrust monitoring
- Product Type: Proximitor Sensor (Signal Conditioner)
- Key Specs: 9.0 Meter Total System Length | Panel Mount | Non-Isolated
- System Length: 9.0 meters (Total length of probe + extension cable)
- Mounting Option: Panel Mount (Standard)
- Agency Approvals: 00 (No specific hazardous area certifications required for this dash number)
- Input Voltage: -17.5 V DC to -26 V DC
- Output Scale Factor: 7.87 V/mm (200 mV/mil)
- Linear Range: 2.0 mm (80 mils)
- Frequency Response: 0 Hz to 10 kHz
- Operating Temperature: -51°C to +100°C (-60°F to +212°F)
- Interchangeability: Fully interchangeable with standard 3300 and 3300 XL 5mm/8mm probes
- Material: Polyamide housing with gold-plated brass connectors

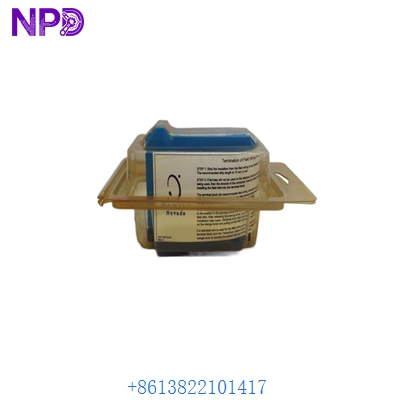

BENTLY 330180-90-00
Application Scenarios & Pain Points
In the world of turbomachinery, the Bently Nevada 330180-90-00 is the “translator.” It takes the raw electromagnetic field changes from a probe near a spinning shaft and turns it into a voltage that a 3500 Rack can understand. The biggest headache for engineers? Mismatched lengths. If you use a 9-meter Proximitor with a 5-meter cable setup, your scale factor will be completely wrong, leading to false trips or, worse, missed vibration spikes.
Typical Application Scenarios:
- Steam Turbine Protection: Monitoring radial vibration and axial thrust to prevent the rotor from touching the stationary casing.
- Centrifugal Compressors: Detecting “sub-synchronous” vibration (surge/stall) in high-speed gas compressors.
- Hydroelectric Generators: Measuring shaft centerline position in large vertical units.
- Gearbox Monitoring: Tracking high-frequency vibration that indicates gear tooth wear or misalignment.
Real-World Case: The “9-Meter” Mistake
Background: A technician at a natural gas pumping station was replacing a faulty 3300 XL Proximitor on a critical booster pump.
Problem: The original part was a 5-meter system, but he pulled a Bently Nevada 330180-90-00 (9.0m) from the shelf because “it looked the same.” After installation, the HMI showed the shaft was 20 mils out of position, even though the pump was off. They tried to recalibrate, but the “Gap Voltage” wouldn’t stabilize.
Solution: They called our tech support line. I had them check the dash number. We explained that a -90 (9-meter) Proximitor must be paired with a probe and extension cable that total 9.0 meters. We rushed out the correct 5-meter unit, and we also sold them the matching 9-meter extension cables so they could standardize their inventory.
Result: The pump was back online in 4 hours. Lesson: Always match your “90” with a 9-meter total length, or your readings will be pure fiction.

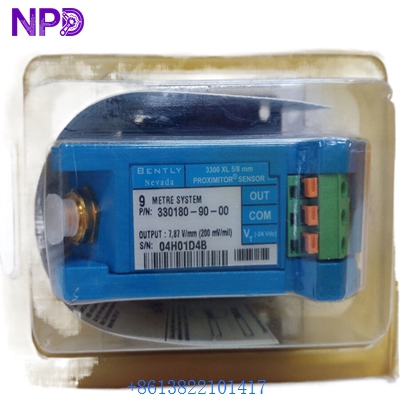

BENTLY 330180-90-00
Compatible Replacement Models
Bently Nevada systems are modular, but they have strict rules about physical length and probe diameter.
| Model | System Length | Compatibility | Note |
| 330180-90-00 | 9.0 Meters | ✅ Exact Match | Standard Panel Mount |
| 330180-50-00 | 5.0 Meters | ❌ Incompatible | Requires 5m cable/probe set |
| 330180-91-00 | 9.0 Meters | ⚠️ Mounting Only | DIN Rail Mount (otherwise identical) |
| 330100-90-00 | 9.0 Meters | ✅ Functional | Older 3300 series (XL is the direct upgrade) |
Pro Tip: If you are moving from the old 3300 series to the 3300 XL (like this 330180), the XL version is much more resistant to “cross-talk” between cables and has a better temperature stable range. It’s a “drop-in” upgrade as long as the lengths match.
Troubleshooting Quick Reference
| Symptom | Possible Cause | Correlation | Quick Check | Action |
| Gap Voltage = 0.0V | No Power / Short | ✅ High | Measure VT and COM terminals for -24V DC. | Check power supply in the 3500 rack. |
| Gap Voltage = -20V (Flatline) | Open Probe Circuit | ✅ High | Check the “Click-Loc” connectors. They must be finger-tight. | Inspect extension cable for breaks. |
| Excessive Noise / Jitter | Ground Loop | ⚠️ Medium | Ensure the Proximitor housing is isolated from the cabinet frame. | Use an insulating mounting plate. |
| Incorrect Scale Factor | Length Mismatch | ✅ High | Check if you have a 7m cable on a 9m Proximitor. | Match total length to 9.0 meters. |
Important Note on Connectors: The “Click-Loc” gold connectors on these units are sensitive. Never use pliers to tighten them. If you over-torque them, you’ll snap the center pin, and that’s a $700 mistake. Finger-tight is all you need for a solid connection.
BENTLY 330180-90-00
Inventory List: Bently Nevada 3500/3300 Series
- 3500/22M (Standard Transient Data Interface)
- 3500/15 (Power Supply Module)
- 3500/42M (Proximitor Monitor)
- 330180-50-00 (5.0m Proximitor)
- 330180-90-00 (9.0m Proximitor)
- 330130-080-00-05 (Extension Cable, 8.0m)
- 330101-00-16-10-02-00 (8mm Probe)
- 9200-01-05-10-00 (Velocity Seismoprobe)
- 3500/32M (Relay Module)
- 3500/92 (Communication Gateway)
Need the specific “Gap vs. Voltage” calibration curve for an 8mm probe? I can send you the graph to help you set your zero-point.
