Description
Product Core Brief
- Model: Bently Nevada 330180-90-05
- Brand: Baker Hughes (Bently Nevada)
- Series: 3300 XL 8mm Proximity Transducer System
- Core Function: Converts eddy current signals into linear voltage for DCS/PLC monitoring.
- Type: Proximitor Sensor (Signal Conditioner)
- Key Specs: 9.0 Meter System Panel Mount 7.87 V/mm (200 mV/mil)

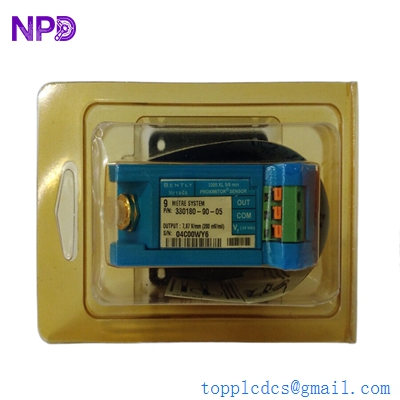

BENTLY 330180-90-05
Key Technical Specifications
- Input: Compatible with 3300 XL 8mm Proximity Probes
- System Length: 9.0 Meters (Total length of probe + extension cable)
- Output Scale Factor: 7.87 V/mm (200 mV/mil) ± 5%
- Linear Range: 2.0 mm (80 mils) starting at approx. -4.0 Vdc
- Power Requirement: -17.5 Vdc to -26 Vdc at 12 mA maximum
- Operating Temperature: -35°C to +85°C (-31°F to +185°F)
- Frequency Response: 0 Hz (DC) to 10 kHz
- Interchangeability: Fully interchangeable with other 3300 XL 5m components
- Mounting: 35 mm DIN rail or four-hole panel mount
- Hazardous Area Ratings: ATEX, IECEx, and CSA for Class I, Div 1/2
Application Scenarios & Pain Points
In my years of commissioning vibration racks, the Proximitor is the “translator.” It takes the raw magnetic field changes from the probe tip and turns them into a stable voltage the control system can understand. The biggest headache with the 330180-90-05 specifically is the “9.0 Meter” requirement. If a technician accidentally installs a 5-meter extension cable on this 9-meter sensor, the scale factor will be completely wrong, and your vibration readings might be off by 30-40%.
Typical Application Scenarios:
- Industrial Gas Turbines Monitoring radial shaft vibration and axial position where long cable runs from the skid to the junction box are necessary.
- Boiler Feed Pumps High-speed rotating pumps that require real-time vibration feedback for auto-trip protection logic.
- Induced Draft (ID) Fans Large-diameter fans where the sensor is mounted far from the bearing housing due to heat or accessibility.
- Cooling Tower Gearboxes Remote monitoring in wet, corrosive environments where the electronics must be housed in a protected remote enclosure.
Case Study: The Scaled Factor Snafu
Background: A combined-cycle plant was seeing “Danger” alarms on their HP turbine after a scheduled outage. The Problem: The maintenance crew had replaced a failed Proximitor but grabbed a 5-meter version from the warehouse instead of the required 330180-90-05 (9-meter). The system was still using 9-meter extension cables. This mismatch skewed the gap voltage, making a normal 2-mil vibration look like 4 mils to the DCS. Solution: We rushed a verified 330180-90-05 to the site. I had them check the “9.0m” label on the side of the case before installation. Result: Once installed, the DC gap voltage returned to -10V (center of range), and the “Danger” alarm cleared. The turbine was synchronized to the grid 2 hours later.
Compatible Replacement Models
The 330180 series has specific suffixes for mounting and total system length. You cannot mix 5m and 9m sensors.
| Original Model | Replacement Model | Compatibility Level | Key Differences | Change Required |
| 330180-90-05 | 330180-90-00 | ✅ Direct | Panel mount vs. DIN rail mount. | None (remove DIN clip). |
| 330180-90-05 | 330180-50-05 | ❌ Incompatible | 5.0 Meter system version. | Must change all cables/probes. |
| 330180-90-05 | 18745-04 | ❌ Incompatible | Older 7200 series Proximitor. | Total system upgrade needed. |
Configuration Breakdown:
- -90: 9.0 Meter System Length
- -05: Panel Mount option (Standard)
Troubleshooting Quick Reference
| Symptom | Potential Cause | Correlation | Quick Check | Action |
| DCS reads -24V | Open Probe/Cable | ✅ High | Check continuity of probe and extension cable. | Replace damaged cable. |
| DCS reads 0V to -1V | Shorted Field Wiring | ⚠️ Medium | Disconnect field wires; measure Proximitor output. | Inspect terminal block for shorts. |
| “NOT OK” LED on 3500 | Power Supply Issue | ⚠️ Medium | Measure voltage between VT and COM (should be -24V). | Check rack power supply. |
| Vibration stays at 0 | Wrong System Length | ✅ High | Verify extension cable length matches “-90” (9m). | Install correct 9m extension cable. |
| Signal Noise/Spikes | Poor Grounding | ⚠️ Medium | Ensure the Proximitor case is isolated from the panel. | Install isolation plate/DIN insulators. |
The “Old Engineer” Advice: “One thing to watch out for: Isolation. The case of the 330180-90-05 must be electrically isolated from the ground. If you bolt it directly to a grounded metal sub-panel without the plastic isolation plate, you’re creating a ground loop. This will introduce 60Hz ‘hum’ into your vibration signal, and your HMI will show a constant 1.0 or 1.5 mil vibration even when the machine is stopped. Use the factory-supplied DIN rail isolators or the plastic mounting feet, and always measure for continuity between the case and the panel—it should be an open circuit.”
