Description
The BENTLY 330180-90-05 is a high-precision 3300 XL Proximitor Sensor designed for critical eddy current proximity transducer loops. This module generates a high-frequency radio frequency (RF) signal that monitors non-contact shaft vibration, axial position, and oil film thickness on heavy industrial rotating machinery. By converting the distance between the probe tip and the target observed surface into a continuous, linear electrical voltage output, it allows plant operators to detect early micro-level machine misalignment, imbalance, and structural wear before mechanical failures occur.
Product Datasheet & Specifications
- Manufacturer: Bently Nevada (Baker Hughes)
- Part Number: 330180-90-05
- Sensor Series: 3300 XL 8mm Proximity Transducer System
- Total System Length Compatibility: 9.0 meters (approximately 29.5 feet)
- Mounting Option: 35mm DIN rail or panel surface mounting
- Agency Approvals Option: 05 (Multiple global hazardous area certifications, including ATEX, IECEx, and CSA Class I Division 1/2)
- System Output Scale Factor: 7.87 V/mm (200 mV/mil) under standard calibration
- Operating Input Supply Voltage: -24 V DC nominal (range from -23 V DC to -26 V DC)
- Maximum Current Draw: Less than 12 mA
- Approximate Dimensions: 8.1 cm x 6.1 cm x 4.3 cm
- Approximate Weight: 245 grams (0.25 kg)
- Country of Origin: United States (USA)
- Operating Temperature: -51°C to +100°C (-60°F to +212°F)

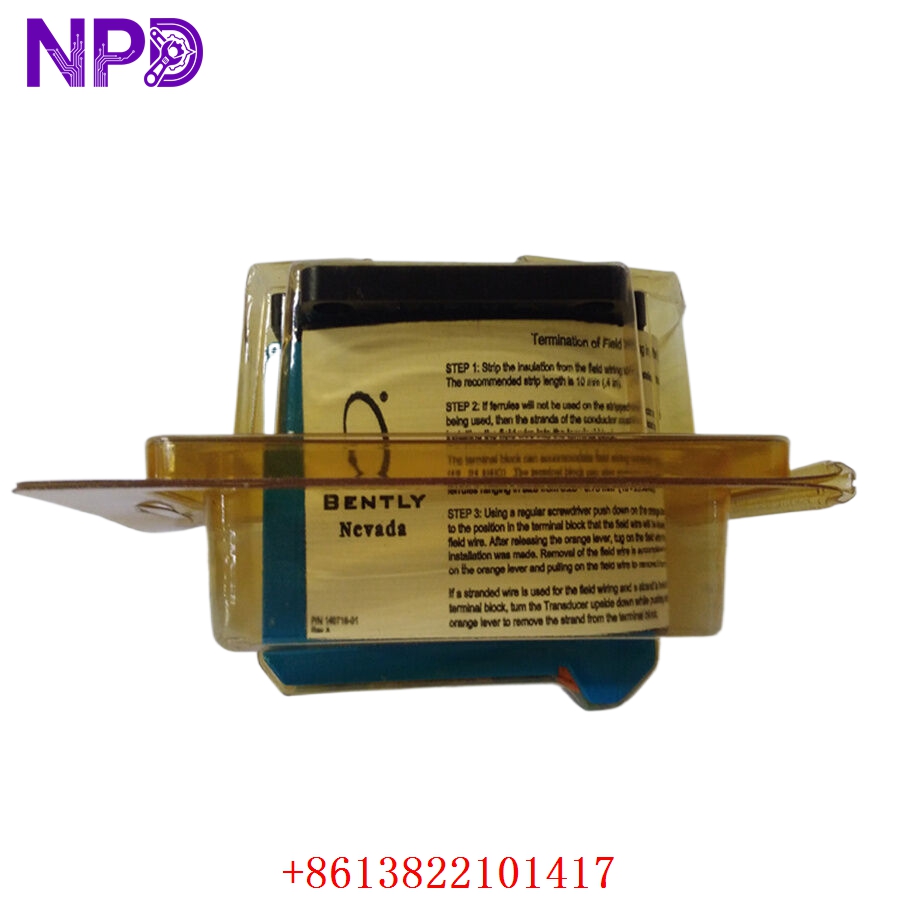

BENTLY 330180-90-05

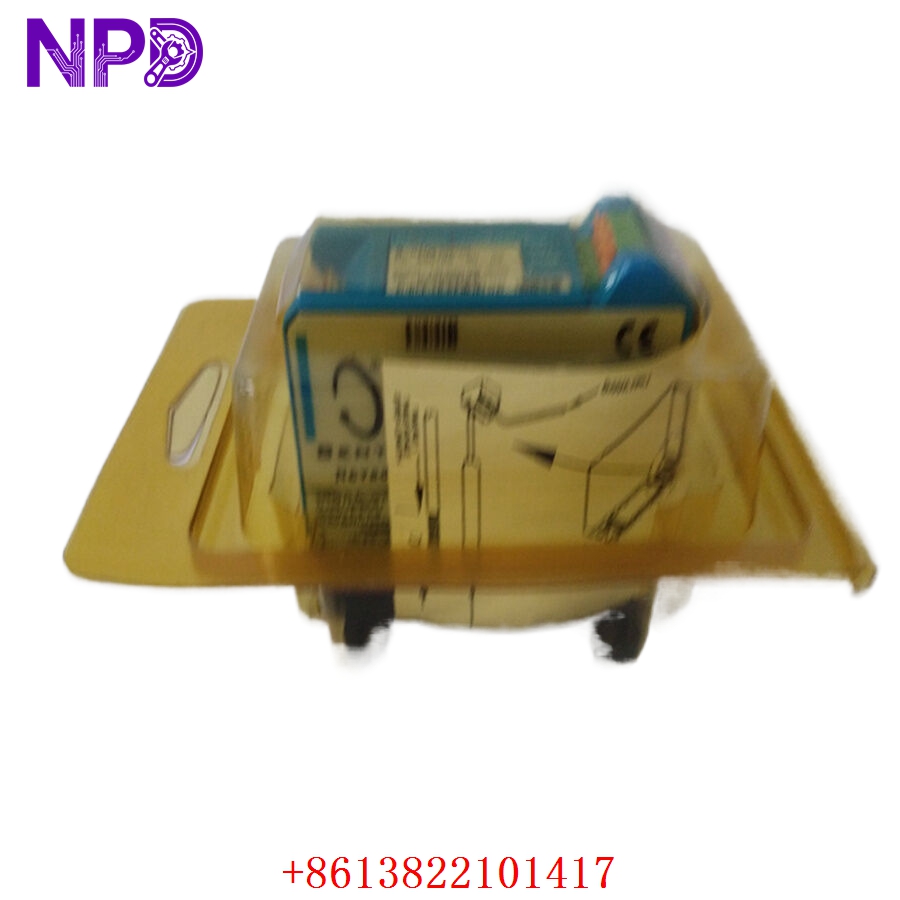

BENTLY 330180-90-05
BENTLY 330180-90-05
Key Application Fields
- Power Generation: Essential for monitoring shaft vibration and thermal expansion on large steam and gas turbines.
- Petrochemical Refining: Continuous tracking of rotor dynamics inside heavy-duty centrifugal compressors and process pumps.
- Marine Operations: Monitors auxiliary turbomachinery and propulsion shaft behavior on marine vessels and offshore rigs.
- Water Utilities: Deployed on high-capacity industrial water pumps to manage bearing wear and structural displacement.
- Mining Processing Equipment: Tracks shaft runout and speed profiles on heavy gearboxes and pulverizing mills.
Product Instructions & Guidelines
- Verify Loop Length Matching: This sensor is strictly calibrated for a 9.0-meter total system length. Ensure that the combined physical lengths of your matched 8mm proximity probe and extension cable add up exactly to 9.0 meters to guarantee linear measurement accuracy.
- Electrical Isolation and Mounting: Snap the module chassis securely onto a standard 35mm DIN rail or bolt it down to a flat panel using the integrated mounting plate. Use the provided isolation washers to prevent structural ground loops between the sensor body and the cabinet steel.
- Field Terminal Wiring: Terminate the coaxial line connection smoothly. Connect the terminal block lines securely to your 3500 rack or DCS processing framework, ensuring the signal output wire, power supply line (-24V), and system common ground are correctly mapped.
- Connector Protection: Keep the miniature coaxial connectors completely free of dust, moisture, and industrial lubricants during field installation. Use self-fusing silicone insulating tape around connection seams to prevent signal cross-talk or drift.
- Verification Testing: Perform a loop verification check across the operational gap voltage range (typically between -1.0 V DC and -17.0 V DC). Check that the scale factor remains linear before starting up the associated rotating machinery.
Q&A – Frequently Asked Questions
- Q: What does the suffix “-90-05” signify in the component configuration?
- A: The “-90” indicates that the internal tuning circuitry is designed for a 9.0-meter total system length. The “-05” indicates multiple global hazardous area safety approvals, making it suitable for volatile environments.
- Q: Why am I getting an out-of-range bias voltage reading near 0 V DC or -24 V DC?
- A: A flat reading near 0 V DC usually points to an open circuit or cut conductor along the sensor line. A reading pegged at the supply voltage (-24 V DC) typically indicates a direct short circuit or a broken connector terminal.
- Q: Is it possible to use this 3300 XL Proximitor sensor with older 3300 series components?
- A: Yes, the 3300 XL 8mm system hardware is engineered to be backward compatible with standard 3300 series 8mm proximity probes and extension cables, although full system replacement yields the best thermal performance.
- Q: Does this sensor module require routine physical calibration in the field?
- A: No, the Proximitor sensor comes pre-calibrated from the factory for standard AISI 4140 steel targets. Field calibration is not necessary unless you are using an uncommon, non-standard shaft target material.
