Description

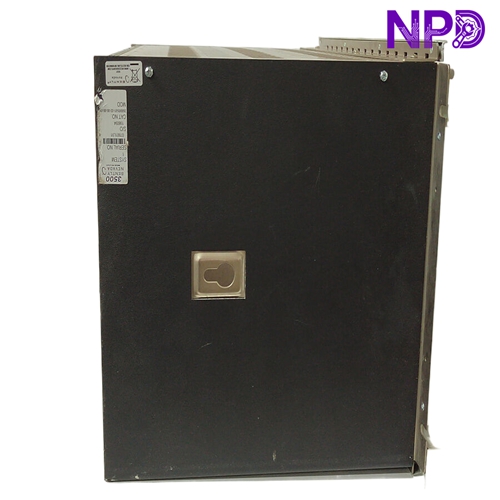

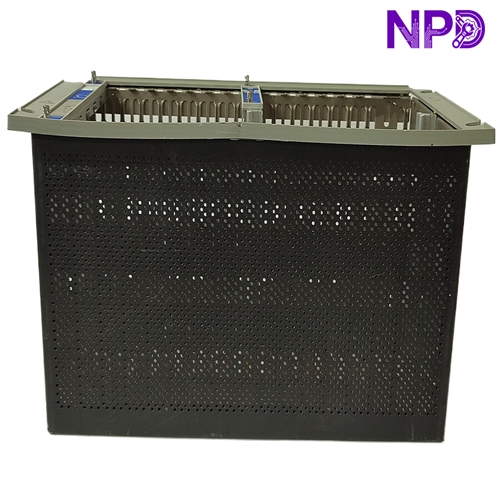

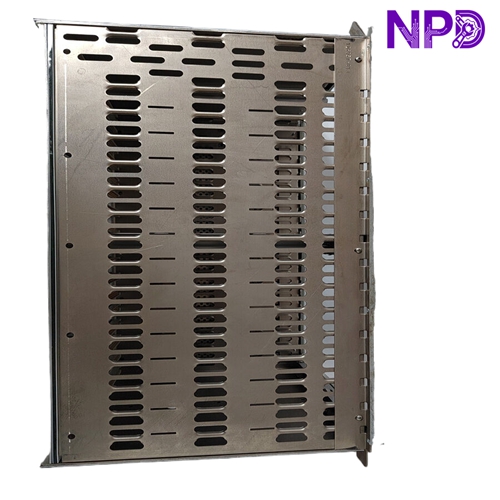

The Bently Nevada 3500-05-01-02-00-00-01 is a specialized 19-inch rack system mainframe, serving as the physical and electrical backbone for the 3500 Machinery Protection System. This configuration provides a stable, hardened platform designed to house and communicate with various monitoring and relay modules. It features redundant power supply slots and a backplane that enables high-speed communication between modules, ensuring that critical machinery data is processed and acted upon in real-time.
⚙️ Technical Specifications
- System Component: 3500 Series Rack (Mainframe)
- Rack Size: 19-inch standard mounting width
- Slot Capacity: 14 slots (1 for interface, 13 for monitors/relay modules)
- Power Configuration: Supports dual redundant power supply modules
- Communication: Integrated high-speed backplane bus
- Mounting Type: Panel mount or rack mount configuration
- Material: Ruggedized industrial-grade steel chassis
- Cooling: Optimized airflow path for convection thermal management
- Operating Temperature: -30°C to +65°C
- Reliability: Designed for continuous operation in mission-critical environments
📋 Recommended Bently Nevada 3500 Series Components
- 3500/15: Power Supply Module (AC or DC options)
- 3500/22M: Transient Data Interface (TDI) Module
- 3500/32M: 4-Channel Relay Output Module
- 3500/33: 16-Channel Relay Output Module
- 3500/40M: Proximitor Monitor (Radial Vibration)
- 3500/42M: Proximitor Seismic Monitor
- 3500/45: Position Monitor (Thrust/Differential Expansion)
- 3500/25: Keyphasor Module (Speed/Phase reference)
- 3500/92: Communication Gateway Module
- 3500/94M: VGA Display Unit for local visualization
