Description

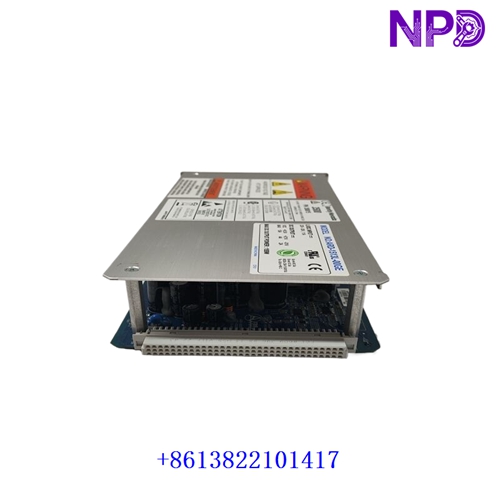

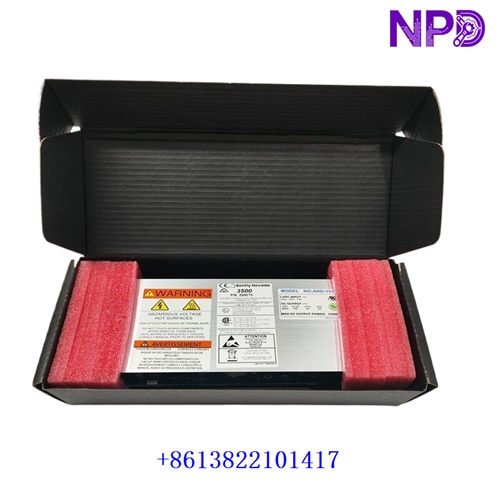

The Bently Nevada 3500/15 (part number 114M5330-01) is a Low Voltage DC Power Supply Module engineered for the Bently Nevada 3500 Series Machinery Protection System.
Installed in the left-most slot positions of a standard 19-inch 3500 system rack, the 3500/15 converts incoming 24 V DC station power into conditioned, regulated internal DC voltage rails (+5V DC, ±15V DC, +24V DC) required by surrounding monitor cards, Keyphasor units, and transient data interface (TDI) processors.
Technical Specifications
| Parameter | Specification |
| Manufacturer | Bently Nevada (Baker Hughes) |
| System Platform | 3500 Series Machinery Protection System |
| Model / Module Type | 3500/15 Low Voltage DC Power Supply |
| Part / Revision Number | 114M5330-01 |
| Input Voltage Range | 20 V DC to 30 V DC (24 V DC nominal) |
| Form Factor | Half-Height Plug-in Module (Left Rack Slots) |
| Status Indication | Front-panel “Supply OK” Green LED |
| Operating Temperature | -30°C to +65°C (-22°F to +149°F) |
| Dimensions & Weight | Approx. 120.7 mm × 50.8 mm × 251.5 mm; 1.2 kg (2.65 lbs) |
Core Features & Operating Capabilities
- Redundant Dual-Supply Configuration: A 3500 rack can house either one or two power supplies. When two are installed, the lower slot acts as primary and the upper as backup, enabling seamless, uninterrupted failover.
- Hot-Swappable Operation: In dual-redundant setups, a failed power supply module can be removed and replaced while the rack remains fully powered and online.
- Self-Monitoring & Diagnostics: Built-in self-test circuitry continuously monitors output voltage rails and alerts the central system if any supply rail falls outside specified operational limits.
- Internal Line Filtering: Integrated EMI and transient line filters shield sensitive vibration processing channels from electrical noise on the field DC bus.
Related Bently Nevada 3500 Power & System Components
- 127610-01 / 125760-01 — 3500/15 Universal AC Power Supply Module.
- 129486-01 / 114M5335-01 — 3500/15 High Voltage DC Power Supply Module.
- 128277-01 — Half-Height Future Expansion Blank Cover (for single-supply configurations).
- 3500/05 — 19-Inch System Rack Chassis.
