1. Product Description

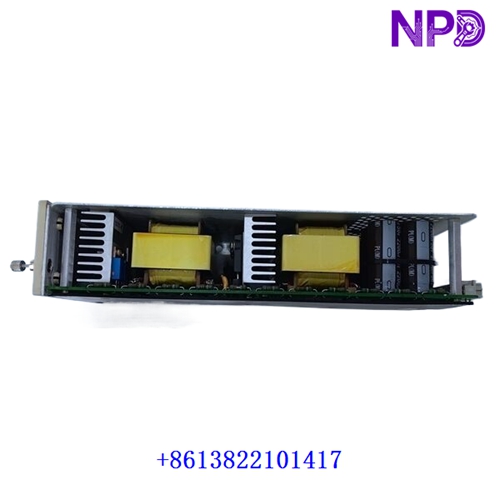

⚙️ The Bently Nevada 3500/15 (127610-01) is an AC power supply module designed for the 3500 Machinery Protection System. It converts AC input power into the internal DC power required by rack-mounted monitoring and protection modules. The module installs in the designated power supply position on the left side of the 3500 rack.
🔧 The module supports redundant power supply configurations, allowing a compatible second supply to maintain rack operation if one supply is removed or fails. Before replacement, verify the installed Power Input Module (PIM), hardware revisions, input voltage, and rack configuration. The legacy 127610-01 must not be mixed with incompatible universal AC replacement components. The newer replacement family includes 106M1079-01 with its matching 106M1081-01 input module.
3500-15 127610-01
2. Product Parameters
📋 Brand: Bently Nevada
Model: 3500/15
Part Number: 127610-01
Series: 3500 Machinery Protection System
Product Name: AC Power Supply Module
Product Type: Rack-mounted power supply
Input Voltage: Depends on the matched legacy AC input module; nominal 110 VAC or 220 VAC
Input Frequency: 47–63 Hz
Power Output: Supplies internal DC power to the 3500 rack
Installation: Dedicated power supply slots on the left side of the rack
Place of Manufacture: Not independently verified
Product Status: Legacy / phase-out; confirm current availability
Dimensions: Approximately 120.7 × 50.8 × 251.5 mm
Weight: Approximately 1.39 kg
Country of Origin: Reported as United States; verify nameplate
Power Requirements: Compatible AC input module required
Discontinued: Legacy model; newer replacement family available
3. Recommended Bently Nevada Models
🔩 1. Bently Nevada 106M1079-01 — Universal AC power supply module; use with its matching input module.
2. Bently Nevada 106M1081-01 — Universal AC Power Input Module.
3. Bently Nevada 125840-01 — Legacy high-voltage AC Power Input Module.
4. Bently Nevada 125840-02 — Legacy low-voltage AC Power Input Module.
5. Bently Nevada 3500/05 — System rack.
6. Bently Nevada 3500/20 — Rack interface module.
7. Bently Nevada 3500/22M — Transient Data Interface module.
8. Bently Nevada 3500/25 — Enhanced Keyphasor module.
9. Bently Nevada 3500/32M — 4-channel relay module.
10. Bently Nevada 3500/33 — 16-channel relay module.
11. Bently Nevada 3500/42M — Proximitor seismic monitor.
12. Bently Nevada 3500/45 — Position monitor.
13. Bently Nevada 3500/50M — Tachometer module.
14. Bently Nevada 3500/60 — Temperature monitor.
15. Bently Nevada 3500/65 — Temperature monitor.
⚠️ Always verify the rear PIM part number, revision compatibility, supply voltage, and rack requirements before ordering a replacement.
