Description
- Model: 3500/15 (Commonly 127610-01 for AC)
- Brand: Bently Nevada (Baker Hughes)
- Series: 3500 Machinery Protection System
- Core Function: Provides regulated DC power to all modules in the 3500 rack
- Product Type: Rack Power Supply Module
- Key Specs: Supports Redundancy | High/Low Voltage Options | Front-Panel Status LEDs
- Input Voltage (AC High): 85 to 264 V AC, 47 to 63 Hz
- Input Voltage (DC Low): 20 to 30 V DC
- Output Power: Full rack support (up to 14 slots)
- Isolation: 2,300 V rms (Input to Output)
- Redundancy: 1:1 Hot-swappable redundancy capability
- Status Indicators: OK LED (Green), TX/RX LED (Communication health)
- Operating Temperature: -30°C to +65°C (-22°F to +150°F)
- Humidity: 95% non-condensing
- Mounting: Leftmost slots (Slot 1 and/or Slot 2) of 3500 rack
- Configuration: Set via 3500 Rack Configuration Software
-

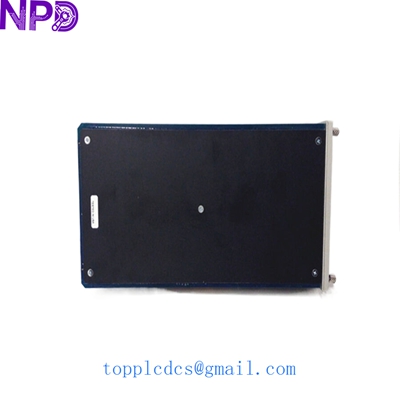

BENTLY 3500/15
Application Scenarios & Pain Points
Engineering Pain Points: The biggest headache with the 3500/15 is thermal aging. Because these modules handle the entire rack’s power load, they run hotter than any other card. Over 10+ years, the internal DC-DC converters (like the 132419-01) can drift. Another integrator trap: Mismatched Revisions. If you are running redundant supplies, try to ensure both modules have the same firmware and hardware revision. I’ve seen “Supply Mismatch” alarms triggered simply because one module was a decade newer than the other, causing slight differences in the “Power OK” timing.
Typical Application Scenarios:
- Steam & Gas Turbine Protection Providing the stable, low-noise power required for 3500/42M Proximitor cards to measure sub-mil shaft vibration.
- Redundant Power Infrastructure Installing two 3500/15 modules (one AC, one DC) to ensure the rack stays live even if the plant’s main AC power fails.
- Remote Compression Stations Using the Low-Voltage DC version (24V) to run the protection system directly off battery banks in remote pipeline areas.
- Large Motor/Pump Monitoring Centralized power for racks monitoring balance-of-plant equipment across a large facility.
The “Phantom Reboot” Case Study
Background: A refinery in Texas complained that their 3500 rack was “glitching.” Every few days, the whole rack would reboot, causing a momentary loss of data in the DCS, though no turbine trips occurred.
Problem: The customer had redundant 3500/15 modules. We discovered that the primary supply had a failing internal capacitor. When it would momentarily dip, the secondary supply would kick in, but the “handover” was slightly too slow (measured in milliseconds), causing the 3500/22M Rack Interface to reset.
Solution: We replaced both 3500/15 modules with current-revision units and verified the backplane seating.
Result: The reboots stopped. Integrator’s Lesson: Redundancy only works if the modules can hand over power seamlessly. If one supply is “weak,” it can drag the whole rack down during the switch.
Compatible Replacement Models
Original Part # Replacement Part # Compatibility Note 127610-01 106M1079-01 ✅ Direct Replace High-Voltage AC version; the 106M is the newer part number 125871-01 106M1081-01 ✅ Direct Replace Low-Voltage DC (24V) version 125871-04 106M1080-01 ✅ Direct Replace High-Voltage DC (110V/220V DC) version Integrator’s Tip: When ordering, check your Lower Power Input Module (PIM) at the back of the rack. The 3500/15 is the front-insert module, but it must match the PIM installed in the back (e.g., you can’t put an AC module into a DC-wired PIM slot).

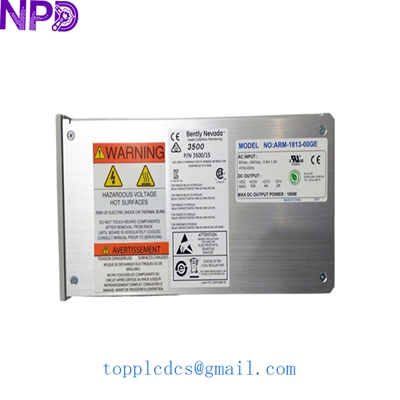

BENTLY 3500/15
Troubleshooting Quick Reference
Symptom Possible Cause Related Part Action Upper “OK” LED Off No Input Power ❌ External Check the PIM fuse and AC/DC source Lower “OK” LED Off Internal Supply Fault ✅ 3500/15 Replace the module or the internal 132419-01 card “Supply Mismatch” Alarm Different Revisions ✅ 3500/15 Verify hardware/firmware versions in software Intermittent Rack Resets Failing Handover ✅ 3500/15 Check both redundant modules for voltage stability Field Note: …If you’re swapping a 3500/15 while the rack is live (Hot-Swapping), make sure the other supply’s “OK” light is solid green first. I’ve seen engineers pull the only working supply because they misread the labels. Label your racks, people! It saves a lot of “oops” moments.

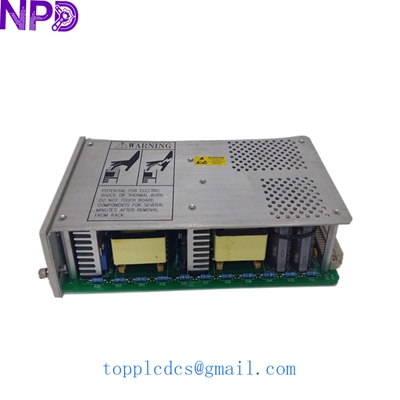

BENTLY 3500/15
Strategic Quality Assurance (Our SOP)
- Full Rack Load Test: We test each 3500/15 in a fully populated 14-slot rack to ensure it can handle maximum current draw.
- Input Voltage Stress: For AC modules, we sweep from 90V to 250V to ensure the regulator holds the DC rails steady.
- Handover Validation: In a dual-redundant setup, we pull the primary power to ensure the secondary takes over without the rack “blinking.”
- Physical Inspection: We check the rear “Eurocard” connector for any signs of arcing or pitted pins.
