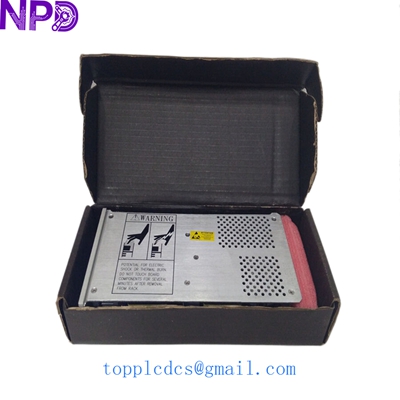

Bently Nevada 3500/15 Low Voltage DC Power Supply

Description

• Model: 3500/15
• Brand: Bently Nevada (Baker Hughes)
• Series: 3500 Machinery Protection System
• Core Function: Provides highly regulated power to all modules within a 3500 rack
• Condition: New Surplus (Original original, non-refurbished, factory seals intact)
• Type: High-availability Rack Power Supply
• Key Specs: 24 VDC Input | Half-height module | Redundancy compatible

• Input Voltage: 20 to 30 VDC (Low Voltage DC version)
• Output Power: Supports a full 19-inch rack of 3500 modules
• Form Factor: Half-height (Two can be installed in one slot for redundancy)
• Isolation: 500 Vrms (Input to Output)
• Efficiency: Typically 85% or higher
• Protection: Over-voltage, over-current, and reverse polarity protection
• Indicators: Front panel LEDs for “Supply OK” and “Low Voltage”
• Redundancy: Supports “hot” load sharing when paired with another 3500/15
• Operating Temperature: -30°C to +65°C (-22°F to +150°F)
• Certification: CSA/NRTL/C, ATEX/IECEx (Class I, Div 2)

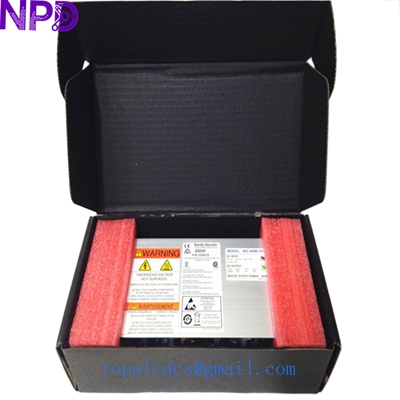

BENTLY 3500/15

Installation & Configuration Guide

Phase 1: Pre-Installation (10 Minutes)

⚠️ Safety Protocol:

1. If the rack is currently protecting a running turbine or compressor, ensure you have a redundant power supply installed before removing the faulty one.
2. If the rack is non-redundant, removal will shut down the entire machinery protection system, which may trigger a machinery trip.
3. Check the input voltage at the backplane terminal to ensure it is within the 20-30 VDC range.

Phase 2: Removal of Faulty Module (5 Minutes)

1. Loosen the two captive screws on the front of the 3500/15 module.
2. Use the extraction tool (or the built-in pull tabs) to slide the module out of the rack.
3. Warning: The module may be warm to the touch if it has been under heavy load; this is normal for DC power converters.

Phase 3: Installing the New 3500/15 (15 Minutes)

1. Verify the Keying: Ensure the plastic keying on the back of the module matches the slot in the rack (Slot 0 is the standard for power supplies).
2. Seating: Slide the module into the guide rails until it engages the backplane connector.
3. Locking: Press firmly to seat the pins and tighten the captive screws. Do not over-tighten—hand-tight is usually sufficient to ensure a good ground.

Phase 4: Commissioning & Validation (15 Minutes)

1. Observe the front panel LEDs. The “Supply OK” green LED should light up immediately.
2. System Health: Open the 3500 Rack Configuration Software.
3. Check the “Rack Status” display to verify that the power supply is reporting a “Healthy” status and correct output voltages (typically +5V, -24V, etc., distributed internally).
4. If it’s a redundant setup, verify that both power supplies are sharing the load.

BENTLY 3500/15

Customer Cases & Industry Applications

Case 1: Power Plant Emergency Rack Recovery A combined-cycle power plant in Texas had a 3500 rack protectively monitoring a critical gas turbine. A surge in the plant’s 24V DC bus fried the primary 3500/15 power supply. The rack stayed alive on the redundant unit, but the plant couldn’t risk running without power redundancy during a storm. We expedited a New Surplus unit from our stock, arriving within 24 hours. The maintenance team swapped it “hot,” restoring full redundancy without a second of machine downtime.

Case 2: Mining Excavator Vibration System Overhaul An iron ore mine used Bently Nevada systems on their massive electric shovels. The dusty, high-vibration environment had worn out the older power modules. The mine’s reliability engineer chose our 3500/15 New Surplus units to refresh their spare parts inventory. In my experience, using original Bently parts is the only way to ensure the long-term stability of the 3500 system’s internal voltage rails, which is critical for accurate vibration readings.

BENTLY 3500/15

Frequently Asked Questions (FAQ)

Q: Can I use the 3500/15 with 110V or 220V AC power? A: No. The 3500/15 is the Low Voltage DC version (20-30 VDC). If you have AC power, you need the 3500/15 High Voltage AC/DC version. Always check the label on your existing unit—plugging 220V into this DC module will cause a “smoke test” you’ll definitely regret.

Q: Does it matter if I put it in the top or bottom half-slot? A: No, either half-slot in the power supply section works. However, most engineers prefer putting the primary in the top and the redundant in the bottom for a clean look. The 3500 backplane handles the load sharing regardless of the position.

Q: Is “New Surplus” reliable for a safety-critical system like Bently Nevada? A: To be honest, I trust New Surplus just as much as factory-direct. These units often come from large-scale projects where they were purchased as “commissioning spares” and sat in a clean, climate-controlled warehouse. We test every unit for voltage stability and ripple under load before it leaves our door. You get the same rugged Bently quality without the factory lead time.

Q: How do I know if I have a “High Voltage” or “Low Voltage” 3500/15? A: Look at the part number on the side of the module. 127610-01 is the Low Voltage DC version. If the number is different, or if the input terminals on the back of your rack say “AC,” then you have a different version. If you’re unsure, send me a photo of your rack’s power input terminal, and I’ll confirm it for you.

Q: What happens if the “Low Voltage” LED comes on? A: This means your input supply (the 24V coming from your plant) has dropped below 20V. The 3500/15 will try to keep the rack running as long as possible, but it’s a warning that your batteries or charging system are failing. It’s the drive’s way of saying “Fix my power before the rack shuts down!”
