Description
(Model): Bently Nevada 3500/15
(Brand): Bently Nevada (Baker Hughes)
(Series): 3500 Machinery Protection System
(Core Function): Supplies regulated power to all 3500 rack modules
(Type): Power Supply Module
(Key Specs): AC or 24 V DC input Supports redundancy Backplane power distribution

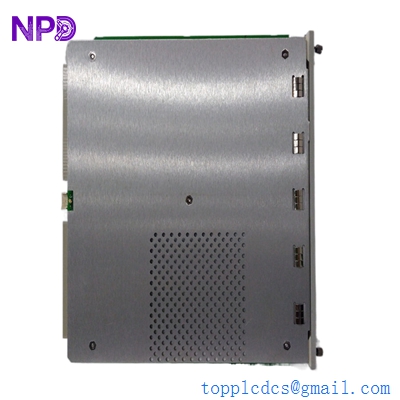

BENTLY 3500/15
Key Technical Specifications
- Input Voltage: AC input version or 24 V DC input version (model-dependent)
- Output Type: Regulated DC supplied via 3500 rack backplane
- Redundancy Support: Yes, dual 3500/15 modules per rack
- Hot-Swap Capability: Supported in redundant configuration
- Power Sharing: Active load sharing between two power supplies
- Protection Features: Overcurrent, overvoltage, and short-circuit protection
- Indicators: Front-panel LED status indicators
- Cooling Method: Natural convection (no fan)
- Mounting: Dedicated power supply slot in 3500 rack
- Operating Temperature: −30 °C to +65 °C
Application Scenarios & Pain Points
If you’ve ever commissioned a Bently 3500 system, you already know this: the rack itself is only as reliable as its power supply. Monitoring cards can be healthy, sensors perfect, wiring textbook-clean… but if the power supply is unstable, the whole protection layer becomes questionable. And in critical rotating machinery, “questionable” is not acceptable.
Typical Application Scenarios
- Power Generation – Turbine Protection Racks
Supplies stable power to vibration, axial position, and overspeed modules protecting steam and gas turbines. - Oil & Gas – Compressor Trains
Used in redundant pairs to avoid data loss or trips caused by single power supply failures. - Petrochemical Plants – Critical Pumps and Fans
Keeps machinery protection online during power disturbances or maintenance activities. - Offshore Platforms
Redundancy matters here. Power supply failure offshore usually means extended downtime.
A Field Example (Realistic)
A few years back, I was called to a compressor station where the 3500 rack kept rebooting randomly. Everyone blamed network noise and vibration cards. Turned out one of the two 3500/15 modules had degraded output under load. The rack survived on redundancy… until it didn’t. Replacing the faulty power supply solved a problem that had wasted two days of troubleshooting.
Lesson learned: power supplies fail quietly before they fail loudly.

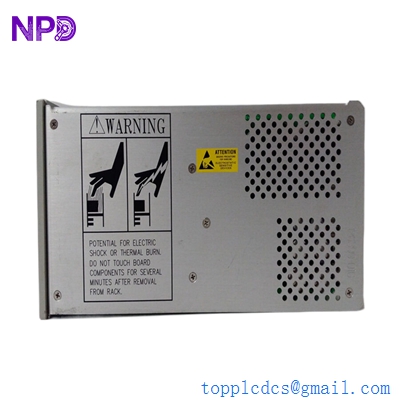

BENTLY 3500/15
Part 5: Compatible Replacement Models
Let’s be very clear here—this is where many projects get burned.
✅ Direct Replacement (Drop-in)
- Bently Nevada 3500/15 (same input type)
- Same wiring, same rack slot, no configuration changes
- Recommended whenever available
- Lowest commissioning risk
⚠️ Software / Configuration Check Required
- Later-revision 3500/15 variants
- Electrically compatible
- Verify input voltage (AC vs DC)
- Check load capacity against full rack population
❌ Not Compatible (Do Not Substitute)
- Power supplies from other Bently platforms
- Generic 24 V DC rack PSUs
- Different backplane interface
- No load-sharing logic
- High risk of rack instability
Integrator advice: if the original model is available, use it. Power modules are not the place to experiment.
Part 6: Troubleshooting Quick Reference
| Fault Symptom | Likely Cause | PSU Related | Quick Check | Recommendation |
|---|---|---|---|---|
| Rack completely dead | No input power | ❌ Low | Measure input terminals with multimeter | Check upstream breaker/fuse |
| One PSU LED off, rack still running | Single PSU failure in redundant setup | ✅ High | Swap PSU positions | Replace faulty 3500/15 |
| Random rack resets | PSU output instability | ✅ High | Check DC output under load | Replace PSU |
| PSU overheats | Overload or poor ventilation | ⚠️ Medium | Verify rack power budget | Reduce load or replace |
| Cannot hot-swap without reboot | Redundancy misconfigured | ⚠️ Medium | Confirm two PSUs installed | Install second PSU |
Rule of thumb at 2 a.m.:
If the rack reboots and nobody touched it, start with the power supply—not the monitoring cards.

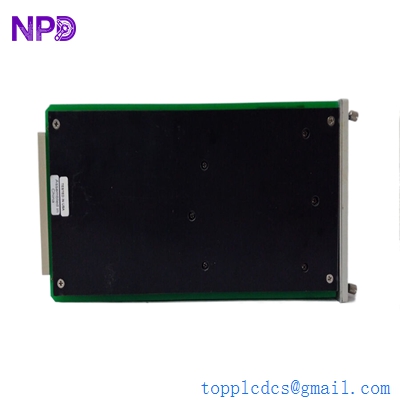

BENTLY 3500/15
Quality Control & Test Process (What We Actually Do)
This matters, especially for a discontinued power module.
- Incoming Inspection
- Verify original packing and serial number traceability
- Visual inspection: no corrosion, no burn marks, no repair traces
- Accessories and labels checked
- Live Functional Test
- Installed in a dedicated Bently Nevada 3500 test rack
- Power-up verification and LED status check
- Load test with multiple monitoring cards installed
- Continuous operation for >24 hours
- Electrical Testing
- Insulation resistance test at 500 V (>10 MΩ)
- Ground continuity verification
- Output voltage stability under load
- Final QC & Packaging
- QC record signed by test engineer
- Anti-static bag sealing
- Protective packing with QC-passed label and date
We can provide test photos or short videos if needed. No guessing.
Common Integration Pitfalls (Learned the Hard Way)
❗ Input Voltage Mismatch
AC and DC versions look similar. I’ve seen engineers plug in the wrong one. Always check the label.
❗ Underestimating Rack Load
Fully populated racks draw more current than expected. Leave at least 20% margin.
❗ Skipping Redundancy
Single PSU racks work… until they don’t. For critical assets, dual 3500/15 modules are not optional.
❗ ESD Neglect
Power supplies are not immune. Wrist strap and ESD mat still apply.
