Description
The Bently Nevada 3500/22M, specifically part number 288055-01, is a high-performance Transient Data Interface (TDI) module designed for the 3500 Machinery Protection System rack framework. The TDI functions as the primary communication gateway between the 3500 monitoring rack and the central configuration, operations, and condition monitoring software (such as System 1). It continuously collects static and dynamic eddy-current probe data, processing critical transient wave information during machine startup, coast-down, or unexpected trip events to enable advanced machinery diagnostics and predictive asset management.
Technical Specifications and Datasheet
- Manufacturer: Bently Nevada (Baker Hughes)
- Model / Part Number: 3500/22M / 288055-01
- Product Type: Transient Data Interface (TDI) Module
- Dimensions: 24.1 cm x 2.4 cm x 10.3 cm (9.50 in x 0.95 in x 4.05 in)
- Weight: 0.82 kg (1.81 lbs)
- Country of Origin: USA
- Power Requirements: Powered internally via the 3500 system rack backplane
- Data Storage: High-capacity internal non-volatile memory for transient wave buffer storage
- Communication Interfaces: 10/100 Base-T Ethernet (RJ45), USB Type-B, and RS-232/RS-428 serial lines
- Supported Protocols: Modbus TCP/IP, Modbus RTU, and proprietary Bently Nevada host protocols
- Operating Temperature: -30°C to +65°C (-22°F to +149°F)
- Regulatory Compliance: CE, ATEX/IECEx Zone 2 hazardous location approvals, CSA certified
Application Fields
The Bently Nevada 3500/22M 288055-01 is deployed worldwide to monitor critical rotating machinery in heavy production industries:
- Power Generation Facilities: Capturing high-speed vibration data during startup and shutdown cycles on large steam, gas, and hydro turbines.
- Petrochemical Refineries: Processing continuous shaft position and dynamic vibration information for multi-stage centrifugal compressors and turbo-expanders.
- Marine Propulsion Systems: Tracking rotational shaft behavior and thrust displacement on heavy maritime diesel engines and vessel gearboxes.
- Water Distribution & Utilities: Managing predictive maintenance data arrays for massive high-capacity industrial water pump systems.
Product User Instructions

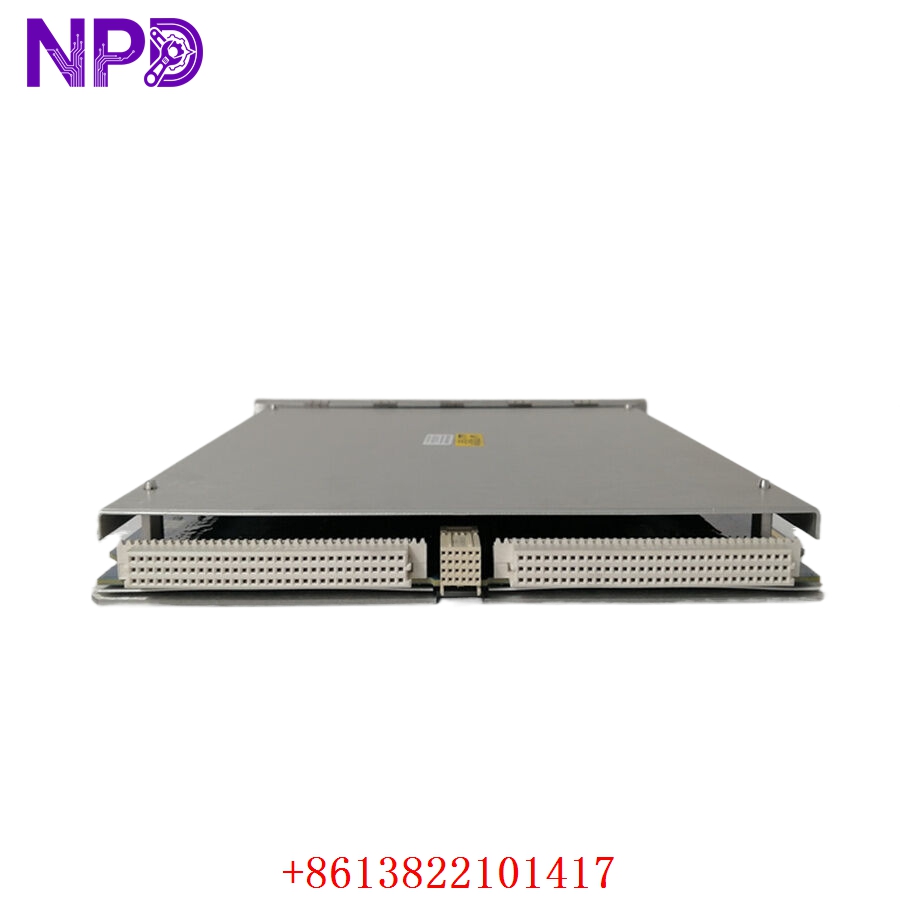

- Slot Installation: Install the TDI module into the dedicated “TDI” labeled slot located on the left side of the 3500 rack frame (adjacent to the power supplies). Push the board completely into the rack to ensure the backplane connectors sit flush, then secure the panel screws.
- Network Wiring Layout: Attach a premium category shielded Ethernet cable (Cat5e or higher) to the RJ45 port on the I/O module for stable network communication. Keep network signal runs isolated from noisy high-voltage or variable-drive lines.
- Software Node Configuration: Use the Bently Nevada 3500 Rack Configuration Software to assign a static IP address, subnet mask, and gateway parameters to the TDI. Verify the communication parameters match your facility’s internal network scheme.

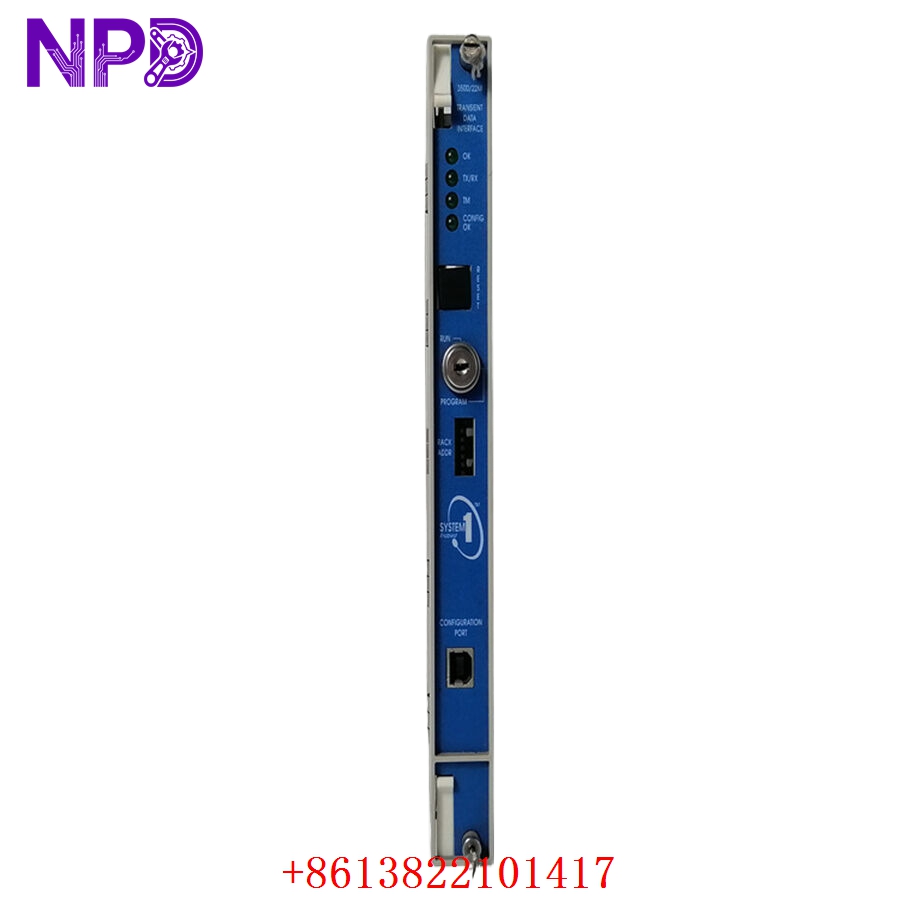

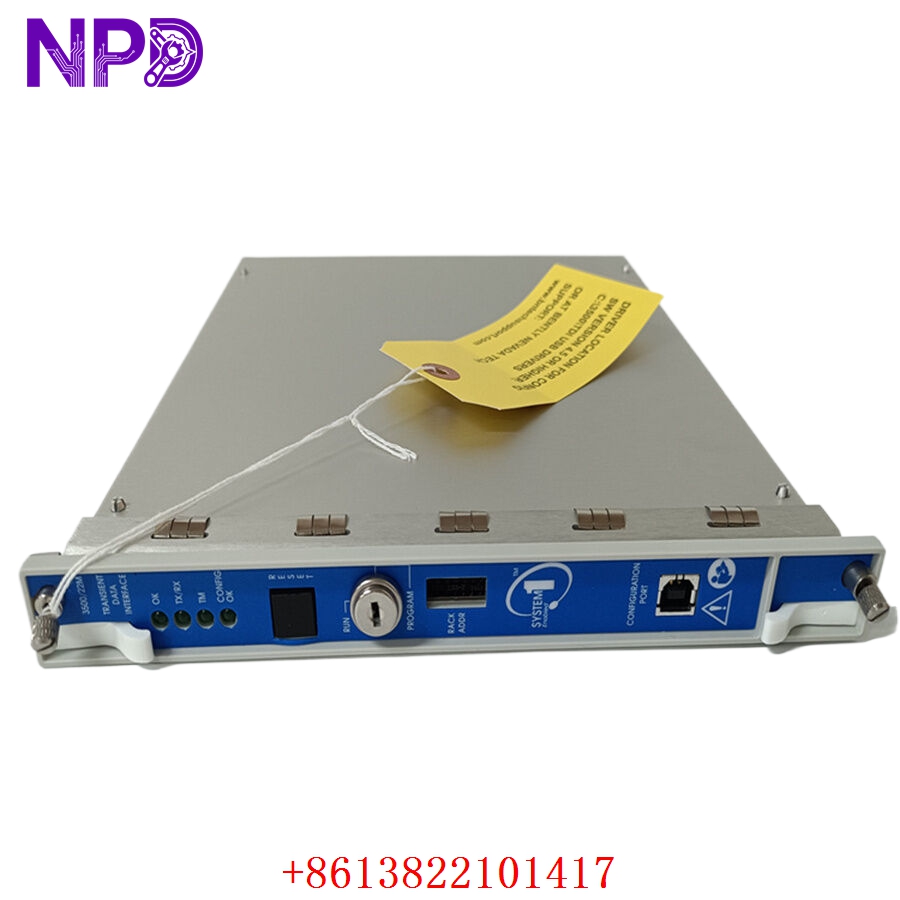

- Data Syncing Verification: Once the module is powered up and configured, establish a handshake verification with your System 1 platform. Check that the front-panel green “OK” LED illuminates continuously to verify normal data collection cycles.
Frequently Asked Questions (Q&A)
Q1: What is the primary difference between standard communication cards and the 3500/22M TDI module? A1: Unlike basic serial or Modbus interface cards that only transmit simplified static values, the 3500/22M TDI captures and buffers high-resolution dynamic waveform profiles. This allows engineers to analyze specific orbit plots, spectrums, and cascade diagrams during transient machine events.
Q2: Can a 3500/22M 288055-01 module be hot-swapped while the rack is active? A2: Yes, the 3500/22M TDI supports live replacement (hot-swapping) without interrupting the individual protective monitoring functions of other I/O monitor cards in the rack, provided proper safety procedures are followed.
Q3: What should I check if the network link LED is active but data is not transmitting? A3: First confirm that the Modbus or host communications are unblocked on your local network switch firewall. If connectivity is open, verify that the rack security switch is set to the correct program/run mode position to permit outbound data traffic.
