Description
roduct Core Brief
- Model: Bently Nevada 3500/32 (Commonly 125720-01 / 125712-01)
- Brand: Bently Nevada (Baker Hughes)
- Series: 3500 Series Machinery Protection System
- Core Function: 4-channel programmable relay for alarm and trip logic
- Product Type: Relay Module (Standard or TMR)
- Key Specs: 4 Relay Channels Individual/Group Voting Dry Contacts

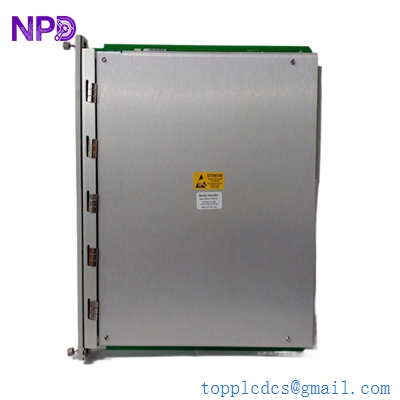

BENTLY 3500/32
Key Technical Specifications
- Relay Type: Single-pole, double-throw (SPDT)
- Number of Channels: 4 independent relays
- Contact Ratings: 5 A at 24 Vdc / 120 Vac (Resistive)
- Max Switching Voltage: 125 Vdc / 250 Vac
- Input Voltage: +5 Vdc and +24 Vdc (Supplied via 3500 backplane)
- Power Consumption: 5.8 Watts typical
- Output Impedance: < 0.2 Ohms (Contact resistance)
- Operating Temperature: -30 °C to +65 °C (-22 °F to +150 °F)
- Configuration Protocol: Proprietary Bently Nevada 3500 Rack Config Software
- Isolation: 1,500 Vrms (Contact to coil)

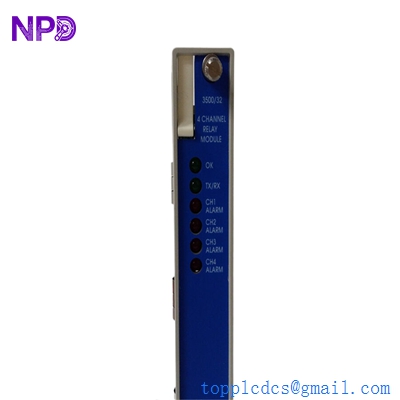

BENTLY 3500/32
Application Scenarios & Pain Points
In high-speed rotating machinery like steam turbines or large centrifugal compressors, the relay module is the “final word” in safety. If a vibration sensor hits a Danger setpoint, the 3500/32 is what actually trips the solenoid to shut the machine down. I’ve seen situations where a faulty relay card prevented a trip during a high-vibration event, leading to catastrophic bearing failure. Conversely, a “nuisance trip” due to a sticky relay contact can cost a plant $100,000 in lost production in a single afternoon. Because these modules are often part of a SIL-rated loop, you can’t just slap in a generic alternative; it has to be the exact Bently hardware.
Typical Application Scenarios:
- Power Generation – Steam Turbine Protection Used to trigger the emergency trip system (ETS) based on vibration, thrust, or overspeed alarms to prevent turbine shedding.
- Oil & Gas – Centrifugal Compressor Trains Provides voting logic (e.g., 2-out-of-3) for alarm outputs, ensuring that a single sensor failure doesn’t shut down the entire pipeline.
- Mining – Large Cooling Fans & Pumps Monitors auxiliary equipment where a relay output is needed to interlock with the Motor Control Center (MCC).
- Petrochemical – Reciprocating Compressors Manages the rod drop and impact alarms, providing clean dry-contact signals to the facility’s main DCS.
Case Study: The “Phantom Alarm” at a Coastal Power Plant
Background: A combined-cycle power plant in Southeast Asia kept experiencing intermittent “Danger” alarms on their main feedwater pump, but the vibration levels on the HMI looked perfectly normal.
The Problem: The existing 3500/32 relay module had been in service for over 12 years in a humid, salty environment. One of the relay’s internal contacts had developed high resistance due to oxidation. Even though the PLC wasn’t seeing a trip signal, the relay was “chattering” enough to trigger a fault light in the local control panel, keeping the operators on edge for weeks.
The Solution: We supplied a New Surplus 125720-01 module from our stock. Because the lead time from the OEM was quoted at 14 weeks, our 3-day delivery was a lifesaver.
Result:
- Downtime Avoided: Zero hours (The module was swapped during a scheduled 4-hour maintenance window).
- Cost Savings: Prevented a potential forced outage estimated at $50,000/day.
- Outcome: The “phantom” alarms vanished immediately, and the plant manager ended up ordering two more modules to refresh the rest of the rack.
BENTLY 3500/32
Compatible Replacement Models
When dealing with Bently Nevada, the “Module” is usually a two-part assembly: the front Main Module and the rear I/O Module. You need to know which one you’re replacing.
| Original Model | Replacement/Alternative | Compatibility | Key Differences | Change Required |
| 3500/32 (125720-01) | 3500/32M (149986-01) | ⚠️ Software Compatible | The “M” is the Enhanced Relay Module. Supports more complex logic. | Requires Rack Config Software V5.0+ |
| 3500/32 (Standard) | 3500/32 (TMR Version) | ❌ Hardware Mismatch | TMR (Triple Modular Redundant) uses 6-relay I/O. | Must change the rear I/O card and wiring. |
| 125720-01 | 125720-02 | ✅ Direct Replace | -02 usually denotes a modified coating or later revision. | None. Plug and play. |
❗ Engineer’s Note: If you are moving from the old standard 3500/32 to the newer 3500/32M, check your software version first. I once spent a whole day on-site wondering why the rack wouldn’t recognize a new module, only to find the client was still running a version of Rack Config from 2008.
Troubleshooting Quick Reference
| Symptom | Possible Cause | Related to 3500/32? | Quick Check | Action |
| “OK” LED is Off | Power/Internal Fault | ✅ High | Check if other modules in the rack have OK LEDs on. | Replace module if backplane power is verified. |
| Relay won’t trip | Logic Config Error | ⚠️ Medium | Force the relay via software “Manual Override”. | Check voting logic (e.g., is it set to 2-out-of-2?). |
| “Channel Blocked” Light | Bypass Active | ❌ Low | Check physical “Bypass” switches or software inhibits. | Deactivate Bypass in Rack Config. |
| Intermittent Continuity | Contact Pitting | ✅ High | Measure resistance across contacts when energized (>1 Ohm is bad). | Replace module immediately. |
| Configuration Error | Version Mismatch | ⚠️ Medium | Connect laptop; check for “Module Mismatch” error. | Update software or match firmware. |
❗ Critical Warning: The 120 Ohm Trap
I’ve seen this happen too many times: someone replaces a relay module and forgets that the terminal blocks on the rear I/O module are not always keyed the same if you switch between different manufacturers’ versions. Take a photo of your wiring before you unscrew anything!
Also, if you’re working in a SIL-rated environment, remember that replacing this module may require a “Proof Test” to be logged in your safety manual. Don’t just swap it and walk away.
